The network management configuration file (NMCONFIG.PUB.SYS) contains
information that is referenced during system boot-up. A step-by-step procedure
for creating or updating the host's network management configuration file
follows.
 |
NOTE: Before modifying the NMCONFIG.PUB.SYS file, make a
backup copy of it. If the modifications made to the configuration file are
successful, purge the backup copy.
|
Step 1: Begin the Configuration Process
Run the NMMGR program.
Node manager (NM) or network administrator (NA) capabilities are required to
run this program. To run NMMGR, enter the following command at the MPE prompt
and then press the [Return] key.
NMMGR.PUB.SYS
 |
NOTE: You must be logged on to the SYS account to modify the
configuration file.
|
Step 2: Open the Network Management Configuration File
The Open Configuration/Directory File screen is displayed
(Figure 3-1 "Open Configuration/Directory File
Screen"). This screen lets you specify the configuration and backup file
names.

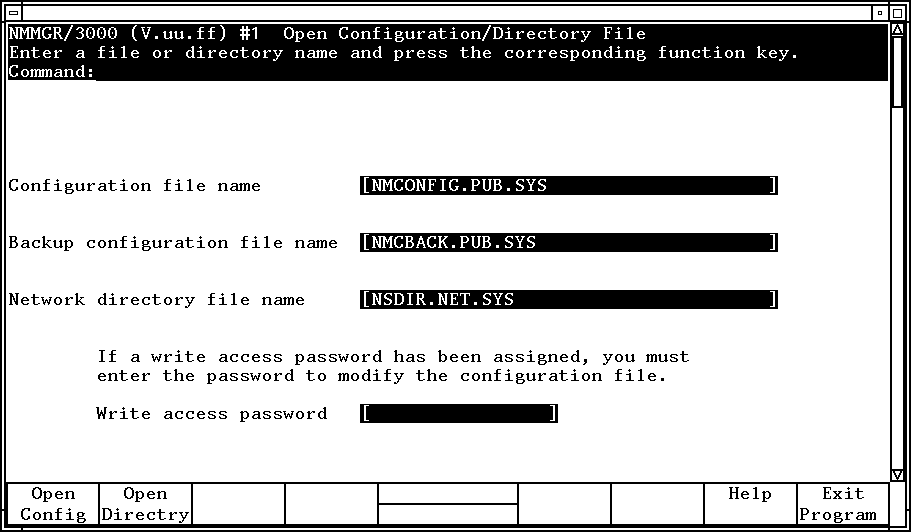

Figure 3-1 Open Configuration/Directory File Screen
Follow the steps listed here to enter data for this screen. Refer to "Fields"
subsection on the next page for detailed information about each field on the
screen.
- NMCONFIG.PUB.SYS is the name required by the software. Verify
that this name is displayed in the Configuration file name
field.
- Verify that the name of the correct backup configuration file is in the
Configuration file name field. The default is
NMCBACK.PUB.SYS.
- Press the [Open Config] function key.
- If the configuration file you are opening does not exist, the following
message will appear on the message line at the top of the screen:
Config file does not exist; press Open Config again to create it.
Press the [Open Config] key again to confirm the creation of the file
you specified.
Fields
- Configuration file name
- The only valid configuration file name the system recognizes for use by
the network subsystem is NMCONFIG.PUB.SYS.
You can create or modify a configuration file using a different name and
save it as an offline configuration file. You can use offline
configuration files as a means of creating and storing configurations
that you want to use in the future. When you are ready to use an offline
configuration file, rename it as NMCONFIG.PUB.SYS, validate
within NMMGR (SYSGEN cross-validation is done automatically within
NMMGR). Use DTCCNTRL to shutdown and restart DTS or reboot the
system.
- Backup configuration file name
- A backup file name must be specified whenever a configuration file is
opened or created. The default backup configuration file name is
NMCBACK.PUB.SYS. The backup file will be automatically updated
with the contents of the configuration file each time the configuration
file is successfully validated.
- Network directory file name
- The Network directory file must be configured for each new X.25 node
(unless you will only be accessing the node using direct level 3 access).
This field is only used for X.25 network management. The network
directory contains information that one X.25 node needs in order to
communicate with other X.25 nodes. The only network directory file name
supported by HP is NSDIR.NET.SYS.
- Write access password
- The password is an optional feature. If a password has been assigned,
you must enter it in the password field to update the configuration file.
It is possible to open the file without using an assigned password, but
the file will be in read only mode and NMMGR will not accept any changes.
If a password has not been assigned, you should ignore the password
field. If you want to assign a password for the system you are
configuring, refer to
Using the Node Management Services (NMS) Utilities
manual.
Step 3: Configure the Local Node Name
The Main screen is displayed after you press the [Open Config] key
(Figure 3-2 "Main Screen"). This screen
lets you specify the HP 3000 host's name. It also asks whether you are using
the HP 3000 host or an OpenView Windows Workstation (PC) for DTC management,
and if you are using X.25 or PAD.

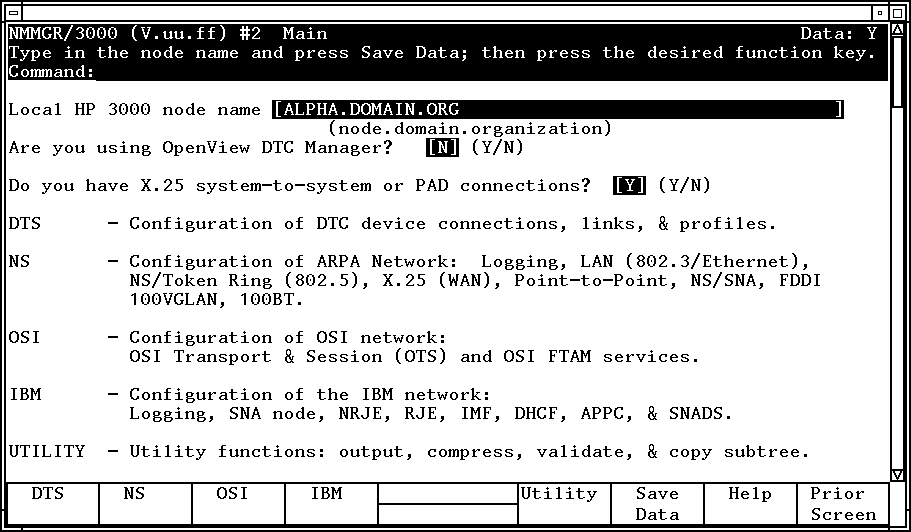

Figure 3-2 Main Screen
![[Main Screen]](img/gfx12.gif)
- Assign a node name to the HP 3000 host in the "Local HP 3000 node
name" field. Use the format nodename.domain.organization.
If your HP 3000 host is the only computer in your network, you may enter
any node name. If you have several computers on your network, you must
make sure the node names for each host are unique.
- In the field after the question, "Are you using the OpenView DTC
Manager?", enter an N.
This means that you will not use the OpenView DTC Manager (that
is, use a PC to manage your DTCs).
Instead, you will use the HP 3000 host to manage your DTCs. If you
specify "Y" for using OpenView DTC Manager refer to the
Configuring Systems
for Terminals, Printers, and Other Serial Devices manual.
- In the field after the question, "Do you have X.25 system-to-system
or PAD connections?", enter an Y for yes.
- After you enter the information on the screen, press the [Save
Data] function key to save your entries.
- After the data is saved (the Data flag in the upper right-hand
corner is Y), press the [DTS] function key.
Fields
- Local HP 3000 node name
- The local HP 3000 node name is the name by which the HP 3000 Series 900
computer is known in the network. The format of a node name is
nodename.domain.organization where the total number of characters
is 50 or fewer, and each field contains 16 or fewer characters
(alphanumeric, underscore, or hyphens). The first character of each
field must be alphabetic.
The nodename portion of each node name must be unique within the
node's network. The nodename.domain portion of each node name
must be unique within the internetwork. HP recommends that all nodes on
the network be assigned the same domain and organization.
Assign meaningful node names. For example, MKTG.ITG.HP and
LAB.ITG.HP are meaningful names for two nodes on the same Local
Area Network (LAN) within Hewlett Packard. One node
(MKTG.ITG.HP) is used by the marketing department. The other
node (LAB.ITG.HP) is used by the lab. The domain field
is the same because the nodes belong to the same network. The
organization field is the same because the nodes belong to the
same internetwork.
- Are you using OpenView DTC Manager?
- If you answer yes (Y) to this question, NMMGR assumes you are
using a PC to manage your system and takes you to the corresponding set
of screens. If you answer no (N), NMMGR assumes you are using
host-based network management and takes you to the set of screens
required for host configuration. If you are using this manual, you
should enter an N in response to this question. (If you
are using a PC to manage your network, see
Configuring Systems
for Terminals, Printers, and Other Serial Devices for the
correct configuration procedures.)
- Do you have X.25 system-to-system or PAD connections?
- If you answer yes (Y) to this question, NMMGR assumes you are
configuring X.25 connections and takes you to the set of screens
required to configure DTC X.25 Network Access Cards. If you answer no
(N), NMMGR assumes you have no need to configure X.25
connections and takes you to a different set of screens. If you are
using this manual, you should enter a Y in response to this
question. (If you are not configuring X.25 connections, see
Configuring Systems
for Terminals, Printers, and Other Serial Devices manual for the
correct configuration procedures.)
Step 4: Configure the Link
The Host Configuration screen is displayed when you press the [DTS]
function key at the Main screen (Figure 3-3
"Host Configuration Screen (Host-Based)").
This screen is used to configure the Datacommunications and Terminal Subsystem
(DTS) on the HP 3000. DTS defines the interaction between the system and any
asynchronous devices, such as terminals and printers.

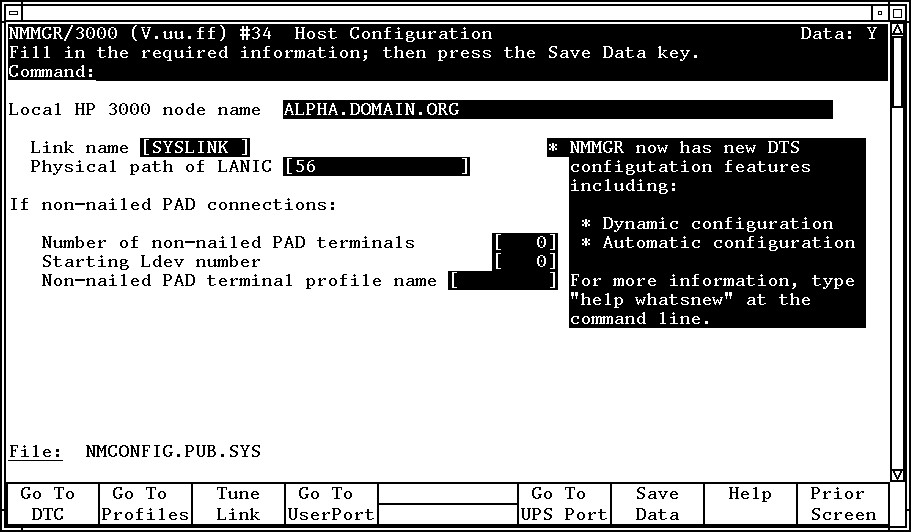

Figure 3-3 Host Configuration Screen (Host-Based)
![[Host Configuration Screen (Host-Based)]](img/gfx13.gif)
- "Local HP 3000 node name" is a display-only field. Verify that
it is correct.
- The "Link name" field displays DTSLINK. This is used
by the HP 3000 DTS subsystem. Use this default.
- In the "Physical path of LANIC" field, type the slot number for
the LANIC card in the host. See the default list for commonly used slot
numbers.
- Verify that the cursor is in the Number of non-nailed PAD
terminals field. Type the number of non-nailed PAD terminals, as
listed on the worksheets. This is the maximum number of PAD terminals,
not configured as nailed PAD terminals, that can logon to the
computer.
- Verify that the cursor is in the Starting Ldev Number field.
Type in the ldev number where the non-nailed pool should start. The
non-nailed PAD devices will be configured with the starting ldev number
and higher.
For example, if the number of ldevs is 2 and the starting ldev number is
200, then the non-nailed ldevs would be 200 and 201. If 201 is already
configured as a nailed device then the non-nailed devices would be 200
and 202.
- Verify that the cursor is in the Non-nailed PAD terminal profile
name field. Type the name of the terminal profile that the
non-nailed PAD terminals will use, as listed on the worksheets.
- Press the [Save Data] function key.

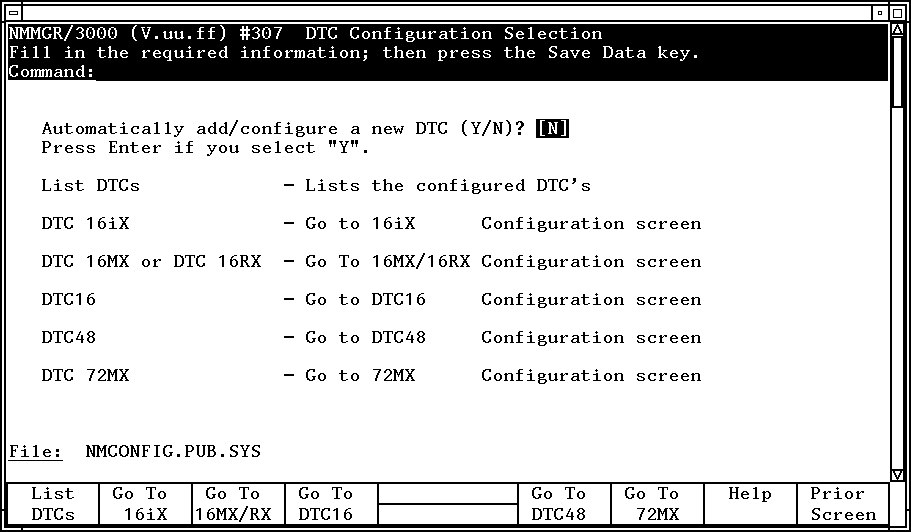

Press the [Go to DTC] function key to proceed to Step 5: Select
DTC Type.
 |
NOTE: The [Go To UserPort] key is used to configure the user
port (default ldev 21) on the NIO console. Pressing this key takes you to
the HP Support Modem Port Screen for configuring the ldev, the line speed,
modem type, and parity of the user port. The configuration of user port is
only supported for the NIO LAN console card (for example, HP 3000 Series 9X7
and 9X7 LX). Refer to the
Configuring Systems for Terminals, Printers, and Other Serial
Devices manual for more information on the user port.
The [Go To UPS Port] key takes you to the Uninterruptible Power
Supply Port Screen. This screen is used to configure the ldev number, line
speed, and parity on a port of the SCSI/Console LAN card (default ldev 22)
to support an uninterruptible power supply (UPS) connection. This port is
only available and supported on HP 3000 Series 9X8 systems. Refer to the
Configuring Systems for
Terminals, Printers, and Other Serial Devices and to
Performing System
Manager Tasks for more information on the UPS.
|
A UPS can also be connected to a DTC port via a configuration process that
does NOT use the [Go To UPS Port] key. Refer to the
Configuring Systems for
Terminals, Printers, and Other Serial Devices manual for information
on how to connect a UPS to a DTC port.
Fields
This screen is used to configure the information that applies to the host
system. This information defines the interaction between the system and its
asynchronous devices, such as terminals and serial printers.
- Local HP 3000 node name
- For display only. The local node name is configured on the Main screen.
- Link name
- The link name that will be used when device connections, including PAD
device connections, are established. It must start with a letter and can
be up to eight alphanumeric characters. (Note that this link name is
different from the X.25 link name that you will configure on the X.25
Configuration screen during NS configuration.) The default is DTSLINK
- Physical path of LANIC
- This is the location of the DTS LANIC in the system's backplane.
The default physical path (slot numbers) for HP 3000 computers are
listed below. These defaults optimize performance and use of the
computer's cabinet space. Before moving the LANIC into another slot,
consult an HP representative.
HP 3000 Systems |
Slot Number |
920, 922, 935, 932, 935, or 949 with HPIB | 4.3 |
920, 925, 935, or 949 with ALINK | 4.2 |
9X7 | 56 |
9X8 | 56/56 |
930 | 8.4 |
950, 955, 960, 980 | 2/4.2 |
990/992, 991/995 | 0/40 |
- Number of non-nailed PAD terminals
- The number of non-nailed PAD terminals that will be allowed to establish
connections with this system over an X.25 network.
Other than entering the non-nailed PAD terminal profile name, no
additional configuration is needed for non-nailed connections.
- Starting ldev number
- The ldev number where the pool of non-nailed PAD ldevs will be
configured.
- Non-nailed PAD terminal profile name
- The terminal profile that will be used for all non-nailed PAD
connections accepted by the system. PAD terminals must use a profile
that defines the terminal type as terminal type 24.
Step 5: Select DTC Type
The DTC Configuration Selection screen (Figure
3-4 "DTC Configuration Selection Screen") is displayed when you press the
[Go To DTC] key at the Host Configuration screen. Here you specify the
type of DTC to configure.
Figure 3-4 DTC Configuration Selection Screen
- Select the DTC type by pressing one of the function keys:
[DTC16iX], [DTC16MX/RX], [DTC16], [DTC48],
or [DTC72MX].
NMMGR will take you to the configuration screen for the specified DTC
type.
 |
NOTE: You may use the [List DTCs] key on the DTC Configuration
Selection screen to see a list of all DTC names configured on your system.
|
Step 6: Specify DTC Configuration
The DTC Configuration screen is displayed after you select the DTC type at the
DTC Configuration Selection screen. Figure 3-5
"DTC Configuration Screen" shows the DTC Configuration screen for a DTC
72MX. (DTC Configuration screens for DTC 16iX, DTC 16MX/RX, DTC 16, and DTC 48
vary slightly).

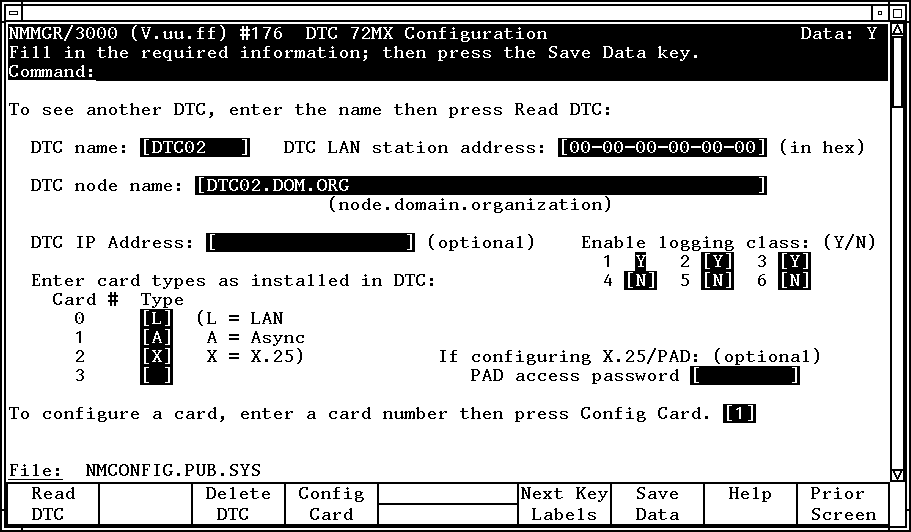

Figure 3-5 DTC Configuration Screen
![[DTC Configuration Screen]](img/gfx15.gif)
- Enter the DTC's name in the "DTC name" field.
The DTC name can be up to eight alphanumeric characters, beginning with
a letter. The DTC name must be unique on the system. It is
acceptable (and common) to use the nodename part of the "DTC
node name" as the "DTC name".
- Enter the DTC's LAN address in the "DTC LAN station address"
field.
The LAN address can be found on a label inside the front cover or on the
back panel of the actual DTC box.
For DTC 16RX access to an HP 3000 in an MPE/iX host-based management
environment, you must use the value 00-00-00-00-00-00
as the DTC 16RX LAN address.
- Type in the DTC's node name
in the "DTC node name" field.
Use the format nodename.domain.organization, where nodename
identifies the DTC. If there is more than one DTC on the network, the
nodename of each DTC must be unique. The following are examples
of valid DTC node names on the same network:
- ALPHA.ACCTG.TEKLAB
- BETA.ACCTG.TEKLAB
Note that "DTC name" and "DTC node name" are two
different fields. However, it is acceptable (and common) to use the
nodename part of the "DTC node name" as the "DTC
name", such as:
- DTC name = ALPHA
- DTC node name = ALPHA.ACCTG.TEKLAB
- (Optional) Enter an IP address for the DTC, if you want this DTC to be
able to respond to PING/iX requests. Otherwise, leave the "DTC IP
Address" field blank.
For DTC 16RX access to an HP 3000 in an MPE/iX host-based management
environment, the IP address of the DTC 16RX is configured using the DTC
16RX Manager on the HP 9000 host and not on the HP 3000. Any value
entered for the DTC 16RX in this field will be ignored.
Refer to Chapter 2, "Introductory Screens," for more information on IP
addresses.
- Enable the event logging classes that you want. It is recommended that
you enable classes 2 and 3 and disable classes 4 through 6. See
"DTC Event Logging" in
Chapter 2, "Introductory Screens," for information on these event
logging classes.
Note that logging class 1 is not configurable and is always enabled.
Event logging classes do not apply for access to an HP 3000 in an MPE/iX
host-based management environment using a DTC 16RX; any values entered
in these fields for the DTC 16RX will be ignored.
- Verify that the cursor is in the "Type" field under "Enter
card types as installed in the DTC." Enter the card type for each
card in the DTC. The valid card types are listed on the screen.
Note that DTC 16iX/16MX/16RX does not have cards since its port
connectors are built directly onto the DTC backplane.
Refer to Chapter 2, "Introductory Screens," for more information on card
types for each DTC.
- (Optional) Enter a password if you wish to require the users to provide
a password when they attempt to establish a communication link to this
DTC via a PAD device. The syntax that the user would use is described in
PAD Profiles and Access Password in Chapter 4
"Terminal and Printer Profiles"
Refer to Chapter 4 "Terminal and Printer
Profiles" for the syntax that the user will enter at the PAD prompt
to supply the password.
- Press the [Save Data] function key.
- To configure a card in the DTC, enter the number of the card you want to
configure in the "To configure a card, enter a card number ..."
field at the bottom of the screen.
Press the [Config Card] function key. Proceed to Step 7:
Configure DTC Cards.
To configure the ports on a DTC 16iX/16MX/16RX, simply press the
[Config Ports] function key. Proceed to Step 7: Configure DTC
Cards.
- Repeat steps 1 through 9 above for every newly-added DTC to be managed
by the HP 3000 host. If you want to select a DTC that has already been
configured, enter the DTC's name in the DTC name field and
press the [Read DTC] function key.
Next Key Labels
When the [Next Key Labels] key is pressed, another set of key labels
are displayed, this allows additional optional information to be configured
for the DTC. Refer to
Configuring Systems for Terminals, Printers and Other Serial Devices
manual. These keys provide access to the following configuration screens:
- DNS/IP Routing
- This key goes to a screen used to configure the DTC to use Domain Name
Services for IP address resolution and IP routing configuration. These
services are configured when back-to-back connection through
routers are used or connections are to be made from DTC ports to HP
9000s or third party ARPA nodes.
- Tune DTC
- This key goes to a screen to change the AFCP, TCP and management timers
for the DTC, if needed.
- DTC U I
- This key goes to a screen that has information that defines how the DTC
user interface behaves. The DTC user interface is used when a DTC port
is configured as a switched port.
- Config SNMP
- You may use the [Config SNMP] key on the DTC Screen to configure
the DTC to act as an SNMP agent. This key goes to a screen to configure
the DTC to act as an SNMP agent. Refer to the DTC Technical Reference
Guide for more information on SNMP.
Fields
This screen is used to configure a DTC's name and node name, to specify the
card types that are installed in the DTC, and to configure logging for X.25
connections, if the DTC contains one or more DTC/X.25 Network Access cards.
- DTC name
- A name, up to eight alphanumeric characters, beginning with a letter,
assigned to the DTC. For convenience, you may want to use the
nodename portion of the DTC node name as the DTC name. Each DTC
configured on the system must have its own unique DTC name.
You can call up (and modify) data for a previously configured DTC by
entering an existing DTC name in the DTC name field and pressing the
[Read DTC] key.
- DTC LAN station address
- The local station address of the DTC. This is a twelve character
hexadecimal number. Each DTC's LAN station address is printed inside the
DTC's front cover on a DTC48, or on the back panel of the DTC72MX or
DTC16MX/iX/RX.
- DTC node name
- The fully qualified node name of the DTC, in the form
nodename.domain.organization. Each part of the name can be up to
16 characters.
- DTC IP Address (Optional)
- The internet protocol (IP) address of the DTC being configured. An
example of an address is: C 192.191.191 009. The IP address is
optional for the DTC, but one must be configured if the DTC is to be
able to respond to PING requests.
- Enable logging class (Y/N)
- These fields, labeled 1 through 6, enable the DTC to log various classes
of events. Enter a Y to enable a class, N to disable.
Only events falling into classes which you have explicitly enabled will
be logged. Class 1 events are the most critical and will always be
logged. Note that enabling class 5 will result in a substantial number
of events being logged. HP suggests that you enable class 5 only when
necessary and only for short periods of time. You should also avoid
enabling logging class 5 simultaneously with an X.25 trace.
- Type (of card)
- The type of card installed in the DTC. Verify that the cursor is in the
"Type" field under "Enter card types as installed in
DTC." Enter the card type for each card in the DTC. The valid card
types are listed on the screen.
- PAD access password (optional)
- A password, up to eight alphanumeric characters in length, that will be
required when users connected to this DTC via a PAD device attempt to
establish a communication link.
- To configure a card, enter a card number then press Config
Card
- This parameter determines the next screen that will appear after you
have saved the data configured on the screen. Enter the number of the
card you want to configure and press the [Config Card] key.
Step 7: Configure DTC Cards
When you press the [Config Card] key at the DTC Configuration screen,
NMMGR will display the corresponding card configuration screen for the
specified card in the DTC. Figure 3-6 "DTC
Card Configuration Screen" shows an example of a Card Configuration screen
for DTC 72MX for asynchronous connect card. (Screens vary slightly for DTC
16iX/16MX/16RX, DTC 16, and DTC 48).
The corresponding screen for a DTC 16iX/16MX/16RX is called a Port
Configuration Screen since DTC 16iX/16MX/16RX has port connectors built
directly onto the backplane and does not have connector cards.
Use this screen to configure the ports in the specified card. On this screen,
logical device (ldev) numbers and profile names are associated with individual
ports on the card.

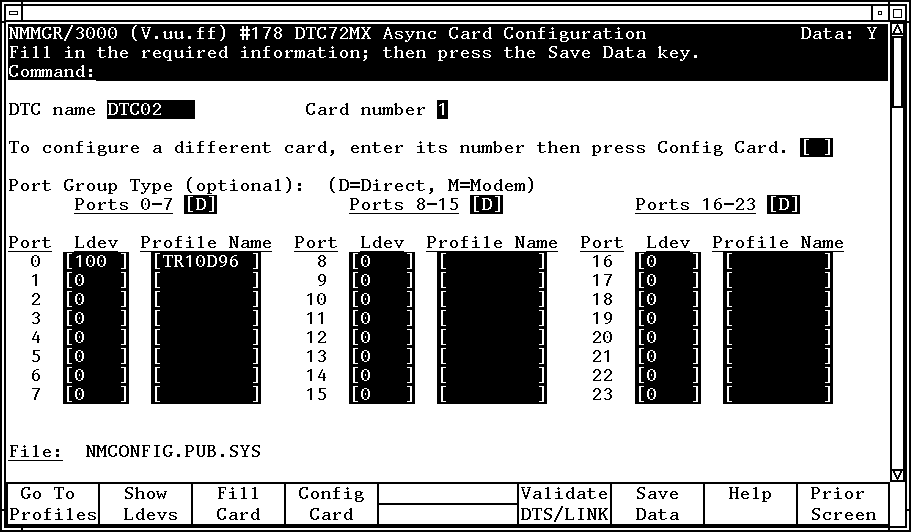

Figure 3-6 DTC Card Configuration Screen
![[DTC Card Configuration Screen]](img/gfx16.gif)
- Verify that the DTC name and card number displayed are correct.
- (Optional) Enter the port group type. The valid types are D for
direct connect and M for modem connect. The default is
D.
- Press the [Tab] key to move the cursor to the first port on the
card. Enter an ldev number for this port in the "Ldev" field.
Ldev numbers used for each port on the DTC must be unique.
For example, you can use ldev number 100 for port 0 of the first card,
and increment the ldev number by 1 for each consecutive port.
So a DTC 72MX with 3 asynchronous cards (a total of 72 ports) would be
assigned ldev numbers 100 through 123 for the 24 ports on the first card,
124 through 147 for the ports on the second card and 148 through 171 for
the ports on the third card.
For the second DTC, you would start with an ldev number greater than 171.
 |
NOTE: Pressing the [Show Ldevs] key will display a list of all
the ldev numbers configured in NMMGR in addition to the DTC name, card type,
and profile name.
|
- Enter the profile name for each port in the "Profile Name"
field.
A profile for the port defines the characteristics of the device to be
connected to that port.
For direct terminals ports, the suggested profile to use is
TR10D96. For direct printer ports, the suggested profile to use
is PR18D96 (or PR22D24 for HP printers with status
checking). For a UPS connected to a DTC port, the suggested profile is
UP10D12.
See the Tables in Chapter 4 "Terminal and Printer
Profiles" to list terminal, printer and UPS profiles supplied by the
system. You may also create your own profiles. Refer to
Chapter 4 "Terminal and Printer Profiles" for
more information on profiles.
- Repeat above two steps for every port in this card.
 |
NOTE: To reduce typing ldev numbers and profiles on the screen, you
can use the [Fill Card] key to automatically assign ldev numbers and
profile names. First, enter an ldev number (and profile name if you do not
wish to use the default profile name) for port 0, then press
[Fill Card]; the system will automatically assign incremental ldev
numbers to each subsequent port on the screen and copy the specified profile
for each port. The system will automatically save the data it has entered.
The [Clear Display] key on your keyboard will clear the part of your
screen that is below the cursor position. You may use this key and the
[Fill Card] key to quickly modify a screen.
|
- Press the [Save Data] function key to save the data on the screen.
 |
CAUTION: Before you exit this screen, make sure you press [Save
Data] if you want to keep the data on the screen; otherwise your screen
input will be lost. This occurs even if you temporarily exit the screen to
read [Help] information.
|
- To configure another card in the DTC, use the cursor keys to move to the
field on the screen: "To configure a different card, enter its
number,...". Enter the card number of the card you want to
configure.
- Press the [Config Card] function key. The corresponding screen
for the card number entered in the last step will be displayed.
- If all the cards have been configured, press the [Prior Screen]
function key to return to the DTC Configuration Selection screen to
select another DTC to configure. Otherwise, if every DTC has been
configured, press the [Validate DTS/LINK] function key to
validate the configuration file.
 |
NOTE: NMMGR allows the configuration of up to 4649 terminal I/O
devices. The largest valid ldev number allowed is 4679.
|
Fields
This screen is used to permanently associate ldev numbers and profile names
with individual ports on the direct connect card.
- DTC name
- Display only.
- Card number
- Display only.
- Port Group Type (Optional)
- The valid type are D for direct connect and M for
modem connect. The default is D.
- Ldev
- The logical device (ldev) number to be associated with the port. Each
ldev number must be unique; it may not be duplicated by any other device
configured on the system.
- Profile Name
- The terminal or printer profile name
to be associated with the port. The features defined by the profile must
correspond to the actual operating features of the port and its attached
device.
- To configure a different card, enter its number; then press Config
Card
- The card that you want to configure next. Use this parameter in
combination with the [Config Card] key to select and move to a
different card in the same DTC. For example, after card 0 is configured,
enter a 1 in this field and press the [Config Card] key
to move to the configuration screen for card 1.
Step 8: Configure X.25 Connections
NMMGR displays the DTC X.25 Card Configuration screen
(Figure 3-7 "DTC X.25 Card Configuration
Screen"). if you press the [Config Card] key at the DTC
Configuration screen (or at a different card configuration screen) with the
card number of a DTC/X.25 Network Access card in the Config Card
field. From this screen, you move to the screens that let you configure DTC
values for X.25 system-to-system and PAD connections.

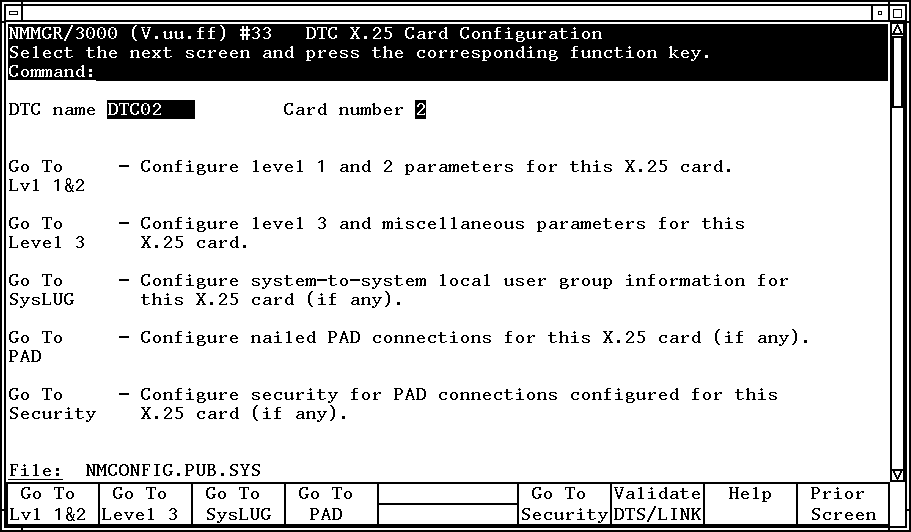

Figure 3-7 DTC X.25 Card Configuration Screen
![[DTC X.25 Card Configuration Screen]](img/gfx17.gif)
- Choose the screen that you want to move to. To create a new card
configuration, go to the screen that lets you configure level 1 and 2
parameters first. (If you are modifying an existing card configuration,
you may choose to move to one of the other choices listed on the
screen.)
- Press the function key that corresponds to the screen that you want to
move to.
Fields
This screen is used to select and move to the lower level DTC/X.25 Card
Configuration screens. The function keys available for selection and the
corresponding lower level screens are shown below:
- Go to Level 1&2
- Takes you& to the DTC X.25 Card Configuration — Level 1
and 2 screen. Use this screen to configure level 1 and 2 network
parameters. Most of the information you enter on this screen will
be on the subscription form for the packet switched network you
are connecting to. You must enter level 1 and 2 parameters for all
DTC/X.25 Network Access cards whether they support X.25
system-to-system connections, PAD connections, or both.

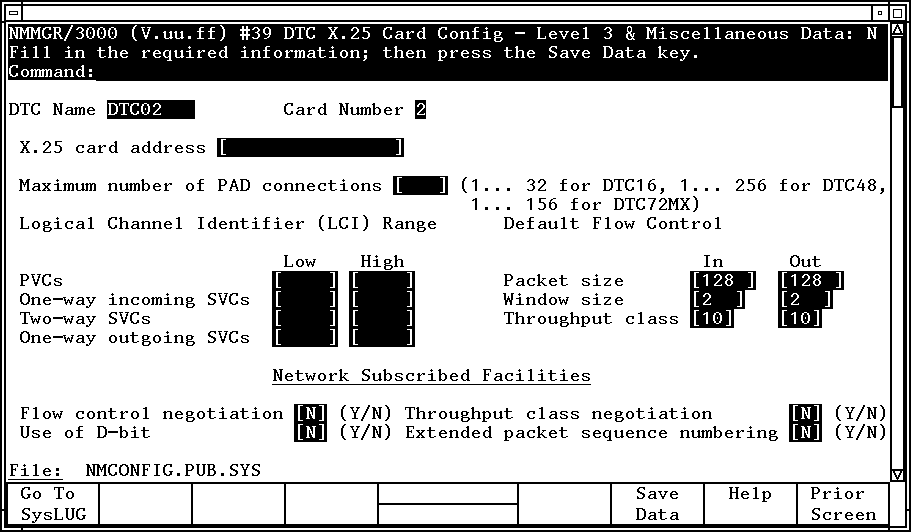

- Go to Level 3
- Takes you to the DTC X.25 Card Configuration — Level 3 &
Miscellaneous screen. Use this screen to configure level 3 network
values and to specify a maximum number of PAD connections (if the
card is to support PAD connections). Most of the information you
enter on this screen will be on the subscription form for the
packet switched network you are connecting to. You must enter
level 3 parameters for all DTC/ X.25 Network Access cards whether
they support X.25 system-to-system connections, PAD connections,
or both.

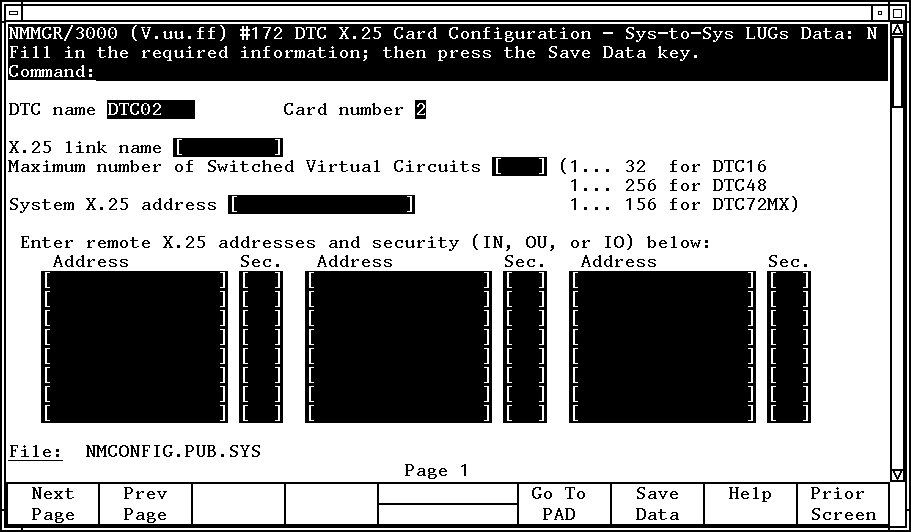

- Go to SysLUG
- Takes you to the DTC X.25 Card Configuration — Sys-to-Sys
LUGs screen. Use this screen to configure the X.25 link name, the
maximum number of switched virtual circuits, and local user group
information the DTC will need in order to support X.25 iX System
Access (NS system-to-system links). Information entered on this
screen must not conflict with information entered during NS link
configuration. (Configure information on this screen only if you
are configuring X.25 system-to-system connections.)

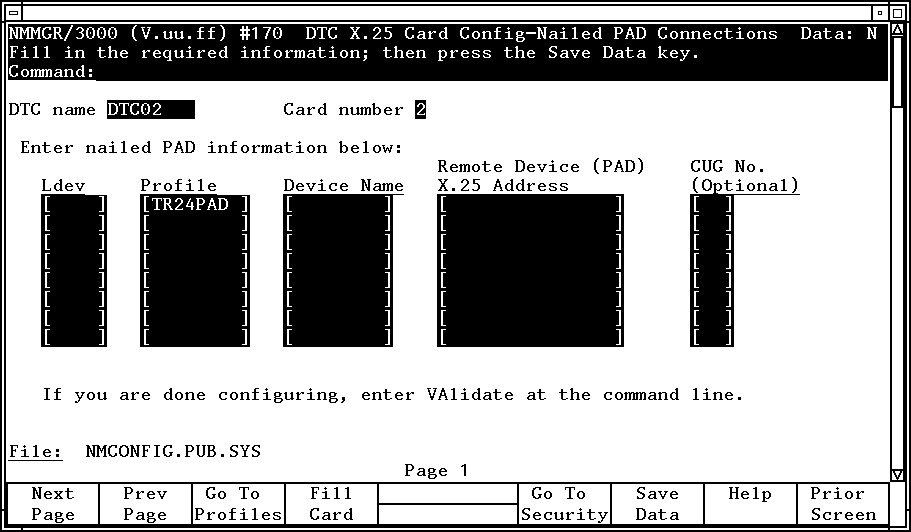

- Go to PAD
- Takes you to the DTC X.25 Card Configuration — Nailed PAD
Connections screen. Use this screen to configure information the
DTC will need in order to support terminals and printers with
permanently assigned ldev numbers (nailed devices) over PAD
connections. (Configure information on this screen only if you are
configuring nailed PAD connections.)

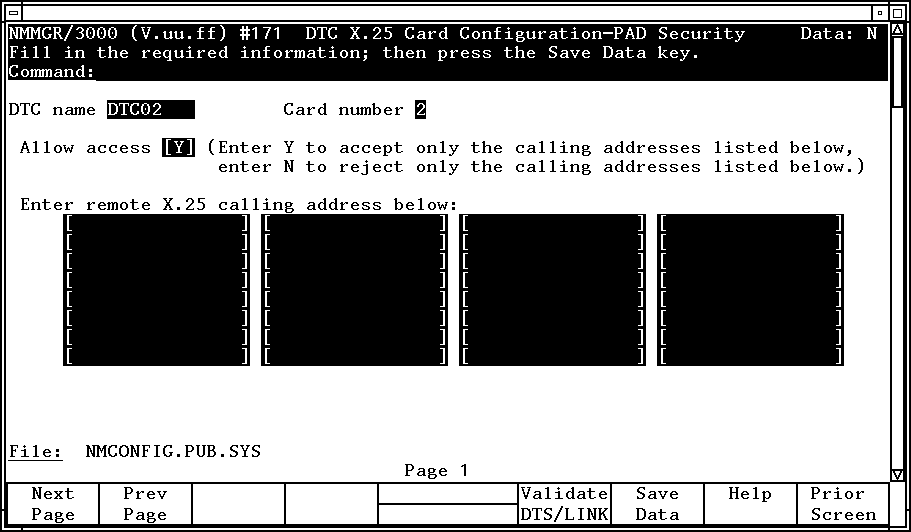

- Go to Security
- Takes you to the DTC X.25 Card Configuration — PAD Security
screen. Use this screen to configure security if you want to allow
or disallow PAD access from specific X.25 calling addresses.
(Configure information on this screen only if you are configuring
PAD and want to implement PAD security.)
Step 9: Configure X.25 Level 1 and 2
NMMGR displays the DTC X.25 Card Configuration — Level 1 and 2 screen
(Figure 3-8 "DTC X.25 Card Configuration
— Level 1 and 2 Screen") if you press the [Go To Lvl 1&2]
key at the DTC X.25 Card Configuration screen. On this screen, you enter level
1 and 2 values for the X.25 card being configured. You must configure these
values for both system-to-system access and for PAD access. You can also reach
this screen by typing the following path at the Command line and pressing the
[ENTER] key:
@DTS.DTC.SELECT.dtcname.X25CARDn.LEVEL12

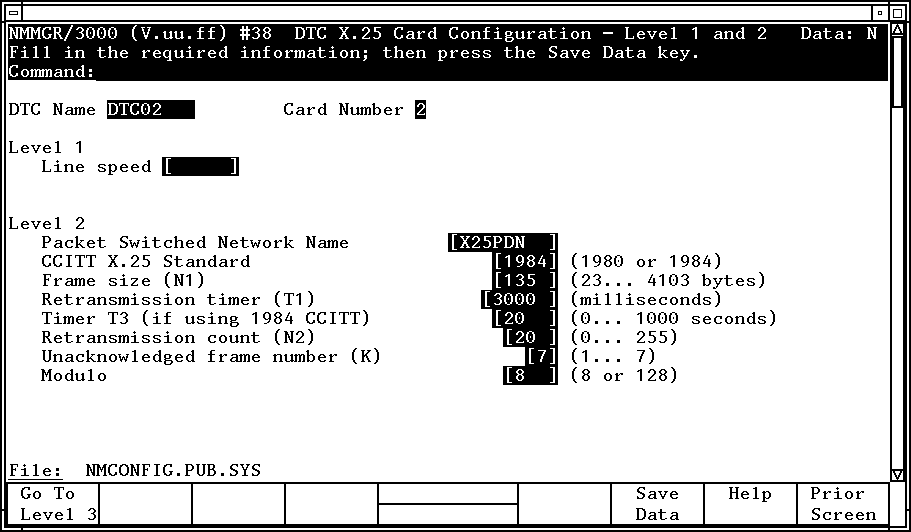

Figure 3-8 DTC X.25 Card Configuration — Level 1 and 2 Screen
![[DTC X.25 Card Configuration
— Level 1 and 2 Screen]](img/gfx18.gif)
- Verify that the cursor is in the Line speed field. Enter the
line speed
for the DTC/X.25 Network Access card as specified by your network
subscription.
- Verify that the cursor is in the Packet Switched Network Name
field. Enter the name of the network you subscribe to.
- Verify that the cursor is in the CCITT X.25 Standard field.
Enter the X.25 standard you are using.
- Verify that the cursor is in the Frame size (N1) field. Enter
the frame size as specified by your network subscription.
- Verify that the cursor is in the Retransmission timer (T1)
field. Enter the value for the retransmission timer as specified by your
network subscription.
- If you are using the 1984 standard, verify that the cursor is in the
Timer T3 field. Enter the value for this timer as specified by
your network subscription. If you are using the 1980 standard, skip this
field (press [TAB] to move to the next field).
- Verify that the cursor is in the Retransmission count (N2)
field. Enter the value for the retransmission count as specified by your
network subscription.
- Verify that the cursor is in the Unacknowledged frame number (K)
field. Enter the value for the number of frames that can be transferred
without acknowledgment as specified by your network subscription.
- Verify that the cursor is in the Modulo field. Enter the modulo
value as specified by your network subscription.
- When you have entered all level 1 and 2 values as specified by your
subscription, press the [Save Data] key to save the
configuration.
- Press the [Go To Level 3] key to move to the DTC X.25 Card
Configuration — Level 3 & Miscellaneous screen.
Fields
You use this screen to configure X.25 level 1 and 2 parameters for the
DTC/X.25 Network Access card being configured. You must define these
parameters for both X.25 system-to-system and PAD connections. Ranges
for configurable values are listed on the screen.
- DTC Name
- Display only.
- Card Number
- Display only.
- Line speed
-
The line speed for the connection. Supported speeds for a card
installed in a DTC16 are 1200, 2400, 4800, 9600, or 19200 bps.
Supported speeds for a card installed in a DTC48 or DTC72 are 1200,
2400, 4800, 9600, 19200, 48000, 56000, or 64000 bps.
- Packet Switched Network Name
- The name of the network
you subscribe to. Possible network names include: DATAPAC, PSS,
DATEX-P, TRANSPAC, TYMNET, TELENET, DDN, HP PPN, ITAPAC, LUXPAC,
DATANET1, DCS, DCE, X25PDN. (The name must be entered exactly as
shown here.)
If two X.25 systems are directly connected (for example, if you
have a cable connecting one DTC X.25 card directly to another DTC
X.25 card) one of the two systems must be configured as DCE and
the other as DTE. To configure a card as DCE, enter DCE
in the Packet Switched Network Name field. To configure a
card as DTE, enter X25PDN in the Packet Switched
Network Name field. (Entering DCE configures the
X.25 card as a DCE at levels 2 and 3 of X.25. At level 1 it
remains DTE.)
- CCITT X.25 Standard
-
Version of the CCITT X.25 standard you are using, either 1980 or
1984.
- Frame size (N1)
-
The frame size, in bytes, as listed on your subscription. Note
that many network subscription forms give this value in bits, not
bytes. In such cases, divide the number of bits by 8 to obtain the
correct number of bytes to enter in this field.
Range: 23 to 4103 bytes.
- Retransmission timer (T1)
-
Time, in milliseconds, the transmitting node waits before
retransmitting an unacknowledged frame. The default of 3000
milliseconds is adequate for most installations.
Range: 1000 to 12000 milliseconds.
- Timer (T3)
- This value is required only if you are using the 1984 CCITT
standard. Specifies the time a link will remain idle before it is
automatically reset. The value of T3
must be greater than T1. The default is 20 seconds.
Range: 0 to 1000 seconds.
- Retransmission count (N2)
-
The number of times a frame is retransmitted before an error is
indicated. The default is 20 times.
Range: 0 to 255.
- Unacknowledged frame number (K)
-
The maximum number of frames which can be transmitted without
acknowledgment from the network.
Range: 1 to 7.
- Modulo
-
The counting cycle for the send frame sequence number.
Range: 8 or 128.
Step 10: Configure X.25 Level 3 and Miscellaneous
NMMGR displays the DTC X.25 Card Configuration — Level 3 &
Miscellaneous screen (Figure 3-9 "DTC X.25
Card Configuration — Level 3 & Miscellaneous Screen") if you
press the [Go To Level 3] key at the DTC X.25 Card Configuration screen
or the DTC X.25 Card Configuration — Level 1 and 2 screen. On this
screen, you configure level 3 values for this X.25 card. You also configure an
X.25 card address and the maximum number of PAD connections that will be
allowed if PAD is supported. You must configure the level 3 values for both
system-to-system access and for PAD access. You can also reach this screen by
typing the following path at the Command line and pressing the [ENTER]
key:
@DTS.DTC.SELECT.dtcname.X25CARDn.LEVEL3
Figure 3-9 DTC X.25 Card Configuration — Level 3 & Miscellaneous
Screen
![[DTC X.25 Card Configuration —
Level 3 & Miscellaneous Screen]](img/gfx19.gif)
- Verify that the cursor is in the X.25 card address field. Enter
the address that will be appended to outgoing PAD calls. If no address
should be sent in call request packets, leave this field blank.
- Verify that the cursor is in the Maximum number of PAD
connections field. Enter the maximum number of PAD connections that
will be allowed through this card. Remember that this number must
include both nailed and non-nailed PAD connections. If PAD will not be
configured, leave this field blank.
- Use the [TAB] key to move to the Logical Channel Identifier
(LCI) Range fields. Enter high and low values for the permanent
virtual circuits (PVCs) or switched virtual circuits (SVCs) you are
configuring per your network subscription. At lease one pair must
be configured. Leave the fields blank for any PVC or SVC types that
are not configured.
- Use the [TAB] key to move to the Default Flow Control
fields. Enter In and Out values according to your network subscription.
- Use the [TAB] key to move to the Flow control negotiation
field. Enter Y to enable or N to disable according to
your subscription.
- Use the [TAB] key to move to the Throughput class
negotiation field. Enter Y to enable or N to
disable according to your subscription.
- Use the [TAB] key to move to the Use of D-bit field.
Enter Y to enable or N to disable according to your
subscription.
- Use the [TAB] key to move to the Extended packet sequence
numbering field. Enter Y to enable or N to
disable according to your subscription.
- When you have entered all level 3 values as required by your
subscription, press the [Save Data] key.
- Press the [Go To SysLUG] key to move to the DTC X.25 Card
Configuration — Sys-to-Sys LUGs screen.
Fields
You use this screen to configure X.25 level 3 and miscellaneous parameters for
the DTC/X.25 Network Access card being configured. You must define the level 3
parameters for both X.25 system-to-system and PAD connections.
- DTC Name
-
Display only.
- Card Number
-
Display only.
- X.25 card address
- A calling address appended to outgoing calls. Used for programmatic
access to PAD devices. Also used for network loopback test. For most
network applications, this is the same as the address used for X.25
system-to-system communications.
Note that with certain networks (such as Transpac, in France) the called
address is removed from incoming call packets and the calling address is
added to outgoing call packets by the network. For these networks, enter
only the subaddress in this field, not the full X.25 address.
- Maximum number of PAD connections
- Number of PAD connections that you will allow at any given time through
the card being configured. The maximum number of connections that can be
allowed are: For DTC16 the maximum is 32, for DTC48 the maximum is 256
and for DTC72MX the maximum is 156. Note that this number specifies the
limit for all PAD calls through this card, including both nailed
and non-nailed connections.
In determining how many PAD connections to allow, keep in mind that PAD
connections use SVCs, out of the pool of available SVCs. The same pool
of SVCs is used for system-to-system connections if system-to-system
connections are also configured for this card. You will need to balance
your PAD support requirements with you system-to-system requirements to
find the optimum configuration for your network.
- PVCs
- Low and high values for permanent virtual circuits as listed on your
X.25 subscription.
- One-way incoming SVCs
- Low and high values for one-way incoming switched virtual circuits as
listed on your X.25 subscription.
- Two-way SVCs
- Low and high values for two-way (incoming and outgoing) switched virtual
circuits as listed on your X.25 subscription.
- One-way outgoing SVCs
- Low and high values for one-way outgoing switched virtual circuits as
listed on your X.25 subscription.
- Packet size
- Size of packet, in bytes, for incoming and outgoing data as listed on
your X.25 subscription. Note that for X.25 cards on which you intend to
configure PAD support, the subscribed and configured packet size must be
128, 256, or 512 bytes.
- Window size
- Window size for incoming and outgoing data as listed on your X.25
subscription.
- Throughput class
- Throughput class values for incoming and outgoing data. Values depend
upon the speed of the link, as follows:
Throughput class |
Line Speed |
7 | 1200 |
8 | 2400 |
9 | 4800 |
10 | 9600 |
11 | 19200 |
12 | 48000 |
- Flow control negotiation
- Specifies whether or not flow control negotiation is enabled. When
flow control negotiation is enabled, both packet size and window size
are negotiable. Enter Y if your subscription allows flow
control negotiation and you wish to enable it. Otherwise enter
N.
- Use of D-bit
- Specifies whether or not delivery confirmation is enabled. Enter
Y if your subscription allows delivery confirmation and you
wish to enable it. Otherwise enter N.
- Throughput class negotiation
- Specifies whether or not throughput class negotiation is enabled.
Enter Y if your subscription allows throughput class
negotiation and you wish to enable it. Otherwise enter N.
- Extended packet sequence numbering
- Specifies whether or not extended packet sequence numbering is enabled.
Enter Y if your subscription allows extended packet sequence
numbering and you wish to enable it. Otherwise enter N.
Step 11: Configure X.25 System-to-System Information
NMMGR displays the DTC X.25 Card Configuration — Sys-to-Sys LUGs screen
(Figure 3-10 "DTC X.25 Card Configuration
— Sys-to-Sys LUGs Screen") if you press the [Go To SysLUG]
key at the DTC X.25 Card Configuration screen or the DTC X.25 Card
Configuration — Level 3 & Miscellaneous screen. On this screen, you
specify information for X.25 system-to-system connections. You can also reach
this screen by typing the following path at the Command line and pressing the
[ENTER] key:
@DTS.DTC.SELECT.dtcname.X25CARDn.SYSLUG
Figure 3-10 DTC X.25 Card Configuration — Sys-to-Sys LUGs Screen
![[DTC X.25 Card Configuration —
Sys-to-Sys LUGs Screen]](img/gfx20.gif)
- Verify that the cursor is in the X.25 link name field. Enter
the link name that will be used for X.25 iX System Access (X.25
system-to-system connections) for this DTC/X.25 Network Access card.
This link name must be the same as the link name configured on the
X.25 Configuration screen during NS configuration (see
Chapter 6 "Configuring X.25 Links Step-by-Step")
- Move the cursor to the Maximum number of Switched Virtual
Circuit field. Enter the maximum number of SVC connections that
will be supported for this card.
- Move the cursor to the System X.25 address field. Enter the
same X.25 address as entered in the X.25 card address field on the Level
3 and Miscellaneous screen unless your network application requires
the address used for X.25 system-to-system communications to be
different from that used for PAD communications. If the addresses
must be different, enter the X.25 address that the local system will use
for system-to-system connections in this field.
Note that with certain networks (such as Transpac, in France) the called
address is removed from incoming call packets and the calling address is
added to outgoing call packets by the network. For these networks, enter
only the subaddress in this field, not the full X.25 address.
- Move the cursor to the first Address field under Enter
remote X.25 addresses and security. Enter the X.25 address of a
system that will be able to establish a system-to-system connection with
the HP 3000 Series 900 you are configuring.
- Move the cursor to the Sec. field next to the address you just
entered. Enter the security level for connections between the remote
X.25 address and the system you are configuring. Possible values are
IN (accept calls from the address), OU (send calls to
the address), and IO (accept calls from and send calls to the
address).
- Repeat steps 4 and 5 for each remote system that will be able to
establish a system-to-system connection with the HP 3000 Series 900 you
are configuring. If you need to enter more than eight remote system
addresses, press the [Save Data] key to save the data on this
screen, then use the [Next Page] key to move to a new data entry
screen to configure additional addresses.
- When you have entered all remote X.25 addresses and associated security,
press the [Save Data] key to save the configuration.
- Press the [Go To PAD] key to move to the DTC X.25 Card
Configuration — Nailed PAD Connections screen.
Fields
This screen lets you configure X.25 system-to-system local user group
(LUG) information for the DTC/X.25 Network Access card being configured.
- DTC name
-
Display only.
- Card number
-
Display only.
- X.25 link name
- The name of the link that will be used by the system being
configured for X.25 system-to-system connections. Must be the same
as the link name entered during NS configuration of X.25 iX System
Access using the NS subbranch of NMMGR. The link name can be up to
eight alphanumeric characters, beginning with a letter.
- Maximum number of Switched Virtual Circuits
- The number of switched virtual circuits (SVCs) that will be
allowed through this DTC/X.25 Network Access card. Up to 32 SVCs
are allowed for cards mounted in a DTC 16, up to 256 SVCs are
allowed for cards mounted in a DTC 48 and up to 156 SVCs are
allowed for cards mounted in DTC 72MX.
The following factors must be considered in determining how many
SVCs to allow:
- The total number of SVCs which an X.25 board can establish
depends on the packet size configured in the X.25 level 3
configuration. Upper limits for each DTC48 and DTC72MX card
are:
- 256 for packet sizes of 512 or less.
- 150 for 1024 byte packets.
- 100 for 2048 byte packets.
- 54 for 4096 byte packets.
Note that these limits are not affected by packet size
negotiation. That is, if you have configured a packet
size of 4096, and a packet size of 128 has been
negotiated, you are still limited to the 54 SVCs
supported with 4096 byte packets.
- If you are also configuring PAD connections on this card,
remember that PAD connections use SVCs out of the pool of
available SVCs. You will need to balance your PAD support
requirements with your system-to-system requirements to find
the optimum configuration for your network.
- The total number of SVCs available may also be limited by
your PSN subscription.
- System X.25 address
- This is the X.25 address of the X.25 card, to be used for
system-to-system connections. In most cases, this will be the same
as the address entered on the Level 3 & Miscellaneous screen.
If, however, your network application requires the address used
for X.25 system-to-system communications to be different from the
address used for PAD connections, enter a different address here.
For most connections to public data networks, this will be the
DTC/X.25 Network Access card address plus a unique subaddress for
the host system.
Note that with certain networks (such as Transpac, in France) the
called address is removed from incoming call packets and the
calling address is added to outgoing call packets by the network.
For these networks, enter only the subaddress in this field, not
the full X.25 address.
- Address
- The X.25 addresses of the remote systems in your X.25 network
- Sec.
- The security level associated with each remote X.25 address. To
accept only incoming calls for call setup, enter IN in
the security field beside the address. To allow only outgoing
calls for call setup, enter OU. To allow both incoming
and outgoing calls for call setup, enter IO.
Step 12: Configure Nailed PAD Connections
NMMGR displays the DTC X.25 Card Configuration - Nailed PAD Connections screen
(Figure 3-11 "DTC X.25 Card Configuration
— Nailed PAD Connections ") if you press the [Go To PAD] key
from the DTC X.25 Card Configuration screen or the DTC X.25 Card Configuration
— Sys-to-Sys LUGs screen. On this screen, logical device (ldev) numbers,
profile names, device names, and remote X.25 addresses are permanently
associated with individual PAD connections allowed through the card. Configure
the connections as required. You can also reach this screen by typing the
following path at the Command line and pressing the [ENTER] key:
- @DTS.DTC.SELECT.dtcname.CARD012.PADn
or
@DTS.DTC.SELECT.dtcname.CARD345.PADn
Figure 3-11 DTC X.25 Card Configuration — Nailed PAD Connections
![[DTC X.25 Card Configuration
— Nailed PAD Connections]](img/gfx21.gif)
- Verify that the cursor is in the first field under Ldev. Type
the ldev
number that the nailed connection will use in the Ldev
field.
- Move the cursor to the Profile field and enter the profile name
the connection will use.
- Move the cursor to the Device Name field and enter the unique
name assigned to the remote device that will be using this nailed
connection.
- Move the cursor to the Remote Device (PAD) X.25 Address field
and enter the X.25 address of the remote PAD that will be using this
nailed connection.
- If you want to associate a closed user group number with this nailed
connection, move the cursor to the
CUG No. field and enter the CUG number.
- Repeat the above steps for every device attached to this card. (You can
use the [Fill Cards] key to fill in ldev and profile information.)
If you need to configure more than eight nailed PAD connections for this
card, press the [Save Data] key to save the data on this screen,
then use the [Next Page] key to move to a new data entry screen
to configure additional nailed connections. You can configure up to 256
nailed PAD connections for each card.
- When all nailed connections have been configured, press the [Save
Data] key.
- Press the [Go To Security] key to move to the DTC X.25 Card
Configuration — PAD Security screen.
Fields
This screen is used to permanently associate ldev numbers and other
information with individual connections that can be made through a DTC/X.25
Network Access card; that is, to configure nailed PAD
connections.
- DTC name
-
Display only.
- Card number
-
Display only.
- Ldev
- The logical device (ldev) number to be associated with the connection.
Each ldev number must be unique; it may not be duplicated by any other
device configured on the system.
- Profile
- The PAD terminal or PAD printer profile name to be associated with the
connection. The features defined by the profile must correspond to the
actual operating features of the connection and the device.
- Device Name
- The name associated with the PAD-connected terminal or printer. The
device name can be up to eight (8) characters and must be unique for
each PAD connection.
- Remote Device (PAD) X.25 Address
- The X.25 address of the remote PAD device. Where devices are connected
to a multiport PAD, include port subaddresses in this field.
- CUG No. (Optional)
- The closed user group number (0 to 99), if specified for your network
subscription. Leave blank if your subscription does not specify a CUG
number.
Step 13: Configure PAD Security
NMMGR displays the DTC X.25 Card Configuration — PAD Security
screen (Figure 3-12 "DTC X.25 Card
Configuration — PAD Security Screen") if you press the [Go To
Security] key from the DTC X.25 Card Configuration screen or the DTC X.25
Card Configuration — Nailed PAD Connections screen. On this screen, you
specify either a list of PAD calling addresses that will be accepted or a list
of PAD calling addresses that will be rejected for connection through the
DTC/X.25 Network Access card being configured. You can also reach this screen
by typing the following path at the Command line and pressing the
[ENTER] key:
@DTS.DTC.SELECT.dtcname.X25CARDn.PADSEC
Figure 3-12 DTC X.25 Card Configuration — PAD Security Screen
![[DTC X.25 Card Configuration —
PAD Security Screen]](img/gfx22.gif)
- Verify that the cursor is in the Allow access field. If you
want to accept calls only from the calling addresses listed below (and
reject all other calls), enter a Y. If you want to reject calls
only from the calling addresses listed below (and accept all other
calls), enter an N.
- In the fields under Enter remote X.25 calling address below:,
enter the X.25 addresses of all remote PAD devices that will be accepted
for connection, if Allow access is Y, or enter the
addresses of all remote PAD devices that will be rejected for connection,
if Allow access is N. If you need to configure more
addresses than there is room for on this screen, press the
[Save Data] key, then press the [Next Page] key to enter
more device addresses. Up to 512 remote X.25 calling addresses can be
configured.
- If you have finished configuring PAD security for this card but still
need to configure additional cards or DTCs, press the
[Prior Screen] key until you return to the DTC Configuration
screen so that you can select a different card or DTC to configure.
- If all DTCs and all cards have been configured, press the [Validate
DTS/LINK] key to validate the DTC configuration for the system. (See
appendix A for validation error
messages.)
Fields
- DTC name
- Display only.
- Card number
- Display only.
- Allow access
- Specifies whether connection requests from devices whose addresses
are listed will be accepted (Y) or rejected (N).
If you enter Y, calls will only be accepted from devices
whose addresses you list on this screen. If you enter Y
and do not list any addresses, all calls will be
rejected.
If you enter N, calls will only be rejected from devices
whose addresses you list on this screen. If you enter N
and do not list any addresses, all calls will be
accepted.
If you do not update this screen (data flag is N, a
default PAD security will be downloaded that allows all
calls to be accepted.
- Enter remote X.25 calling address below
- Lists the X.25 addresses of all PAD devices that will be accepted
for connection if Allow access is Y or rejected
for connection if Allow access is N. Enter up to
32 remote addresses per screen and up to 512 per DTC/X.25 Network
Access card.
You can use the letter X as a wildcard character in place
of any single digit. All systems with corresponding addresses will
have the same access rights. The address check is sensitive to the
length of the address. To manage addresses, you may enter pyramids
of Xs where the base is the longest expected address and the peak
is the shortest expected address.
For example to control access to all PAD addresses of six, seven
or eight digits starting with 1234:
- 1234XX
1234XXX
1234XXXX
To control access to PADs with addresses of seven digits starting
with 6789:
- 6789XXX
Step 14: Validate/Cross-Validate the Configuration File
Validation ensures that no conflicts exist in the network configuration file
(NMCONFIG.PUB.SYS) between the DTCs and other configuration
parameters. After NMMGR validates the network configuration file, it will
automatically cross-validate the file with the system I/O devices configured
through the SYSGEN utility. This will take place only if the file opened at
the start of the NMMGR session is NMCONFIG.PUB.SYS and validation
is successful. Additionally, you must have System Manager (SM) capability or
the cross-validation will not occur. The commands used for SYSGEN
cross-validation are in the file NMGRXVAL.PUB.SYS. If this file
does not exist, NMMGR will create the file for you before cross-validating.
You can edit this file as appropriate for your environment.
Refer to the MPE/iX manual, System Startup, Configuration, and Shutdown
Reference Manual, for information on SYSGEN.
- To validate the DTS configuration in the configuration file, press the
[Validate DTS/LINK] key at the Card Configuration screen. You can
also reach the Validate Configuration File screen by typing
validate at the command line on top of any NMMGR screen and
pressing [Enter]. (Note that the [Enter] key is not the
carriage return key.) While at the Validate screen press the
[Validate DTS/LINK] key to validate the DTS configuration.
The DTS validation procedure starts by displaying the following on the
terminal:
- -> Validation of DTS/LINK started. <-
- -> Validation of DTS/LINK finished. <-
If errors were encountered in the configuration file, the validation
procedure will print out the total number of errors found. Error
messages will also be displayed explaining the problems found. Refer to
Appendix A "Error Messages" for more information
about these error messages.
- After validation of the network configuration file is complete, the
following will appear on the screen as the file is cross-validated with
the files created with SYSGEN (warning messages may vary):
NMMGR will now cross-validate the NMCONFIG file with SYSGEN.
SYSGEN version E.00.00 : catalog version E.00.00 FRI, FEB 4, 1994, 3:32 PM
Copyright 1987 Hewlett-Packard Co. All Rights Reserved.
**warning** No NMCONFIG file in the configuration
**warning** NMCONFIG.PUB.SYS is now the NMCONFIG file
** First level command **
io log (lo) misc (mi) spu (sp)
sysfile (sy)
basegroup (ba) keep(ke) permyes (pe) show (sh)
tape (ta)
clear (cl)(c) exit (ex)(e) help (he)(h) oclose (oc)
redo
sysgen> PERMYES ON {Automatically reply YES}
sysgen> SY {Go to the SYSFILE subsystem}
** SYSFILE configurator commands **
aauto (aa) aboot (ab) acmsl (ac) asprog (as)
cmsl (cm) dauto (da) dboot (db) dcmsl (dc)
dsprog (ds) lcmsl (lc) rauto (ra) rboot (rb)
rcat (rc) rcmsl (rcm) rdcc (rd) ripl (ri)
rnmlib (rn) rsprog (rs) show (sh)
clear (cl)(c) exit (ex)(e) help (he)(h) hold (ho)
sysfile> RDCC {Set configuration file to NMCONFIG.PUB.SYS}
sysfile> {HO} {Remove braces to HOLD RDCC command}
sysfile> EX {EXit the SYSFILE subsystem
configuration changes are not kept yet!
still want to exit (yes/no)? Automatic yes
sysgen> BA CONFIG {Set BAse group to CONFIG}
sysgen> KE (KEep the changed configuration data)
keeping to group CONFIG.SYS
Purge old configuration (yes/no)? Automatic yes
** configuration files successfully saved **
sysgen> EX {EXit SYSGEN}
Cross-validation with SYSGEN was successful.
Copying validated configuration file to backup file, please wait ***
(Press RETURN when done viewing screen contents)
- After successful validation and cross-validation, and if the file in use
is NMCONFIG.PUB.SYS, the following prompt will appear:
Do you want DTS changes to become active now (Y/N)?
Y = all changes made take effect now
N = all changes made will take effect up next dynamic
configuration or system reboot
H = help
>
Answer Y if you want to invoke DTCCNTRL and make DTS changes
take effect now, or answer N if you don't want DTS changes to take
effect now. Note any messages that describe additional actions needed
for changes to become active. After you exit NMMGR you can review any
actions needed by viewing the logs at the end of the file
LOGDCC.PUB.SYS.
If you answer N, the DTS changes will take effect the next time
DTCCNTRL is invoked, a DTS shutdown/restart is done, or the system is
rebooted.
Type H
if you need more help to answer the question.
- After viewing the messages describing what actions are required, if any,
enter [RETURN] when you see the prompt:
(Press RETURN when finished view screen contents.)
You will return to the Validation screen. You may make additional
configuration changes or exit NMMGR.
Step 15: Ensure DTS Changes Become Active
If you answered Y to the question "Do you want DTS changes to
become active now (Y/N)?" in Step 14, refer to in
Chapter 7 "Managing Networks with DTCCNTRL" for a list of configuration
tasks and associated actions for changes to become active.
For those tasks indicating "No action; changes take effect dynamically," no
additional actions are required for the DTS changes to become active. You will
see a message on the screen indicating that no other actions are required.
For other tasks requiring additional actions for changes to become active, you
will see messages on the screen indicating what actions must be taken first.
 |
NOTE: If you answered N to the question in Step 14, thus
choosing not to call DTCCNTRL after NMMGR exit, refer to
Chapter 7 "Managing Networks with DTCCNTRL" for the
syntax on how to invoke DTCCNTRL outside NMMGR.For host-based X.25
configuration tasks and associated actions for changes to take effect, refer
to Configuring and Managing Host-Based X.25 Links for more
information.
|
Performing a DTC Reset
First, logoff any sessions. To reset the DTC, turn off the power and then turn
on the power again for the DTC.
You may also use TermDSM, an online diagnostic program for host-managed DTCs,
to reset the DTC. Refer to Troubleshooting Terminal, Printer, and Serial
Device Connections for more information.
Performing a DTS Shutdown/Restart
To perform a DTS shutdown and restart, use the DTCCNTRL command. Refer to
Chapter 7 "Managing Networks with DTCCNTRL" for the
command syntax of this command. Refer to the Dynamic Configuration chapter of
the Configuring Systems
for Terminals, Printers, and Other Serial Devices manual for
additional information on performing a DTS shutdown and restart.
|
