To install the adapter in the host computer, perform the following steps:
- Access the adapter slot(s).
- Select an available adapter slot.
- Insert the adapter into the slot.
- Switch on the power to the computer.
a. Access the adapter slot(s)
Because computer models vary, there may be different procedures to access and
select an adapter slot. Before you install the adapter, you should refer to
the manuals that apply to your particular computer for instructions. Identify
the following information:
- authorized or recommended adapter configurations and limitations, if any
- how to access the computer's adapter slot(s)
- proper orientation of the adapter in its slot
b. Select an available slot
Select an available HP-PB adapter slot. Remove the slot cover for that slot.
Refer to your computer system administrator's documentation.
Retain the cover for possible future use.
Verify you can see an adapter connector at the back of the slot.
Record the slot number for future reference. If there are no other adapters to
install, reassemble the computer.
c. Insert the adapter into the slot
Insert the adapter into the adapter slot connector and press in firmly until
the adapter is fully seated into the connector.
Refer to Figure 1-2 Inserting and Securing
Adapter.
- With both hands, grasp the adapter by its edges or faceplate. Do not
touch electronic components or electrical traces.
- Insert the adapter into the slot. Be sure the contacts and adapter
guides are properly aligned.
- Fold in the extractor levers.
- Press the adapter firmly until you feel the connector mate fully.
- Secure the adapter in its slot by securing the retaining screws.

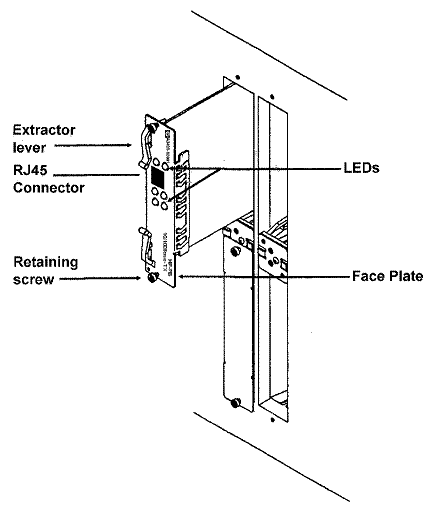

Figure 1-2 Inserting and Securing Adapter
d. Switch on the power to the computer.
- Reconnect the source power supply to the computer.
- Switch on the computer power switch.
|
