Before installing the adapter, you should perform the following steps:
- Observe antistatic precautions.
- Verify product contents.
- Record adapter identification information.
- Gather tools and accessories.
Observe Antistatic Precautions
This product contains electronic components that can easily be damaged by
small amounts of static electricity. To avoid damage, follow these guidelines:
- Store adapters in their conductive plastic bags until you are ready to
install them.
- If possible, work in a static-free area.
- Handle adapters only by the edges. Do not touch electronic components or
electrical traces. We strongly recommend that you use a grounding wrist
strap that is connected to the metallic chassis of the computer. If you
do not have a wrist strap, touch the chassis before handling adapters,
and frequently or continuously thereafter, to equalize any static charge.
Verify Product Contents
Unpack and identify all items supplied with the products:
| Description |
Part Numbers |
- HP-PB 10/100Base-TX Network Adapter
|
A3495-60001 |
- Installation and Service Manual
|
B5427-90001 |
Record Adapter Information
Record the relevant information from the card here for future reference. If
your adapter requires service in the future this information will be needed by
HP service personnel.
| Information to Record |
Card Information |
Example |
| Motherboard Model and Revision number | | H05000-003, REVB02 |
| Daughter Card Model and Revision number | | H04524-007, REVC02 |
| Daughter Card Serial number | | 615385 |
| Daughter Card Station Address | | 0060B0D52EFC |
This information is provided on stickers affixed to various locations on the
adapter cards. Use Figure 1-1 "Address
Location", for the locations of the relevant information.

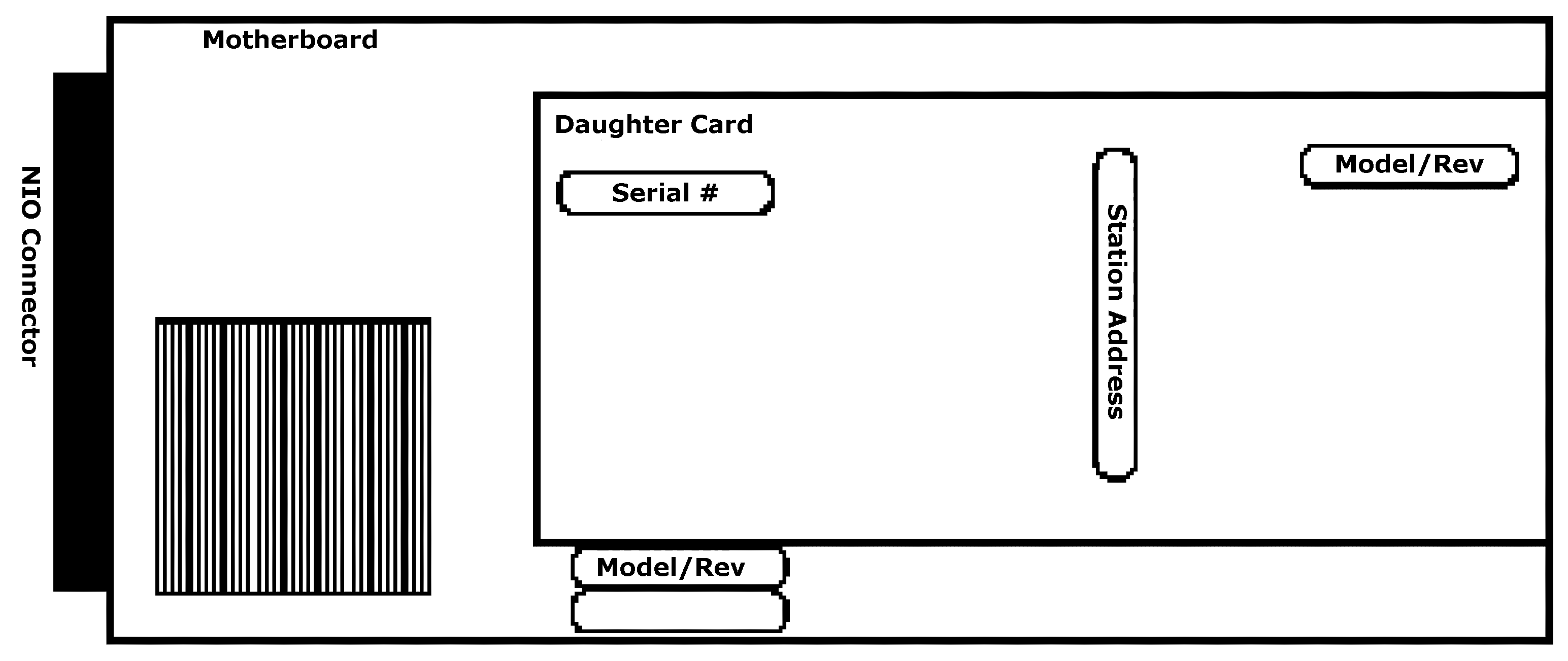

Figure 1-1 Address Location
Gather Tools and Accessories
Check the hardware installation manual of your computer model for special
tools and accessories required to access the I/O adapter slot(s). The
following common tools are helpful:
- screwdrivers necessary for opening your computer and installing
adapters
- grounding wrist strap
 |
NOTE: You should have all of your system and peripheral device
manuals available for reference. There may be special system or device
dependent requirements that are not noted here.
|
|
