The following paragraphs describe the tasks for using NetIPC for
process-to-process communication in programs which are:
- Establish a connection.
- Send and receive data over the connection.
- Shut down the connection.
These discussions are based on access to level 4 (TCP) but most principles
apply to direct access to level 3 (X.25). Information specific to X.25 is
noted in the discussion.
After establishing a virtual circuit, you can use other NetIPC functions which
are described in this chapter under the heading, "Additional NetIPC Functions".
Establishing a Level 4 Connection
The following paragraphs are a call-by-call explanation of the dialogue
through which a virtual circuit connection is built. This example uses the
socket registry facility by establishing names for call sockets with
IPCNAME and retrieving the names with IPCLOOKUP.
Figure 1-9 "Using IPCDEST" shows the
sequence of calls to use if the address of the socket is known (using
IPCDEST).
Only two processes are shown in this example. Either or both of the processes
shown can establish virtual circuit connections with other processes.
Secondary or auxiliary connections can also be set up between the same two
processes.
 |
NOTE: Both of the processes in the following dialogue are assumed to
be created and running at their respective nodes. NetIPC does not include a
call to schedule remote processes. Refer to the chapter, Remote Process
Management, in the Using NS 3000/XL Network Services manual for more
information about initializing remote processes with RPM.
|

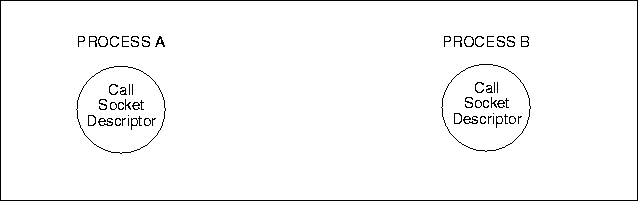

1. Creating a Call Socket
Interprocess communication is initiated when Process A and Process B each
create a call socket by invoking the NetIPC call IPCCREATE (see
Figure 1-2 "IPCCREATE (Processes A and B)").
As explained previously, a call socket is roughly analogous to a telephone
with multiple extensions (see Figure 1-1
"Telephone Analogy"). IPCCREATE returns a call socket
descriptor to the calling process in its calldesc
parameter that describes the call socket, or "telephone extension," that the
process has created. This call socket descriptor is then used in subsequent
NetIPC calls.
Figure 1-2 IPCCREATE (Processes A and B)

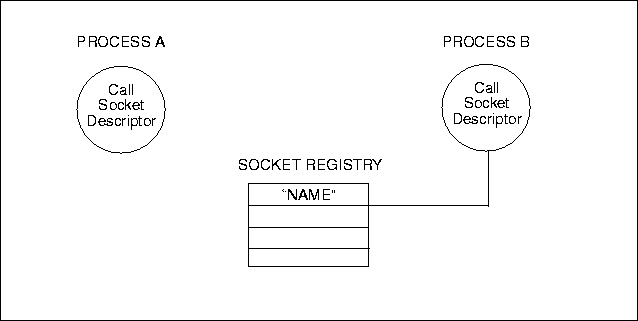

2. Naming a Call Socket
Process B associates a name with its call socket by calling IPCNAME
(see Figure 1-3 "IPCNAME (Process B)").
When a call socket is named, this information is placed in the socket registry
at the local node. The name Process B assigns to its call socket must also be
known to Process A because Process A must reference it later in its
IPCLOOKUP call. (When a socket name is known to both processes in
this way, it is called a well-known name.) Although call sockets do
not have to be named, a process cannot gain access to the socket of another
process if the socket is not named (unless the address of that socket is known,
in which case IPCDEST is used). The socket must be named and be
recorded in the socket registry at the node of Process B when Process A calls
IPCLOOKUP.
Figure 1-3 IPCNAME (Process B)

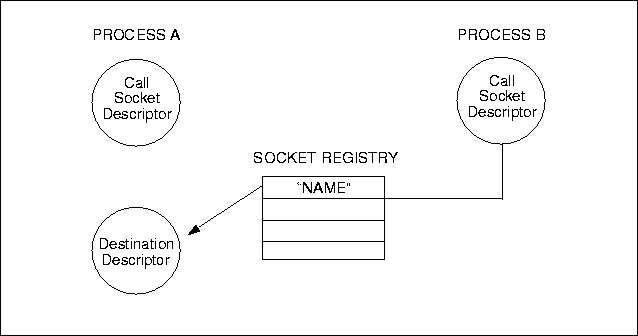

3. Looking Up a Call Socket Name
Process A must reference the call socket of Process B by its name in the call
to IPCLOOKUP to "look up" the name of the call socket in the socket
registry at the node where Process B resides. IPCLOOKUP returns a
destination descriptor in its destdesc parameter (see
Figure 1-4 "IPCLOOKUP (Process A)"). The
destination descriptor indicates the location of the destination call socket
which is owned by Process B. IPCLOOKUP is similar to a telephone
company's directory assistance service: Process A calls the "operator"
(IPCLOOKUP), and gives him/her a "city" (location
parameter) and a "name" (socketname parameter). Using the
"city," that is, the node name or environment ID, the operator looks for the
name in the proper "telephone directory" (socket registry). Once the name is
found, the operator returns a "telephone number" (destdesc
parameter) to the caller.
Figure 1-4 IPCLOOKUP (Process A)

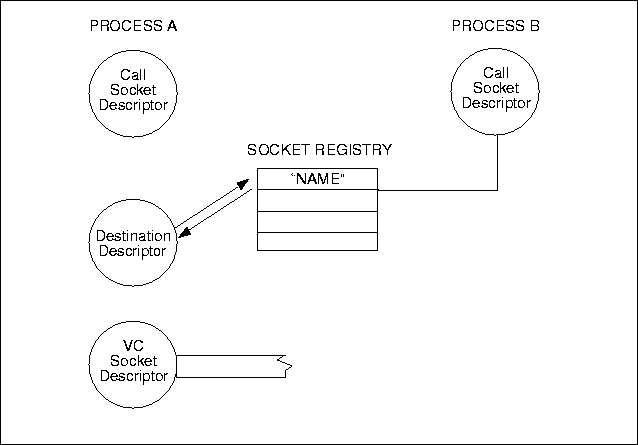

4. Requesting a Connection
Process A specifies the destination descriptor returned by IPCLOOKUP
and the call socket descriptor returned by IPCCREATE in its call.
With these two parameters, IPCCONNECT requests a virtual circuit
connection between Process A and Process B (see
Figure 1-5 "IPCCONNECT (Process A)"). This
could be compared to dialing a phone number. IPCCONNECT then returns
a VC socket descriptor in its vcdesc parameter that describes
the VC socket endpoint of the connection at Process A.
Figure 1-5 IPCCONNECT (Process A)

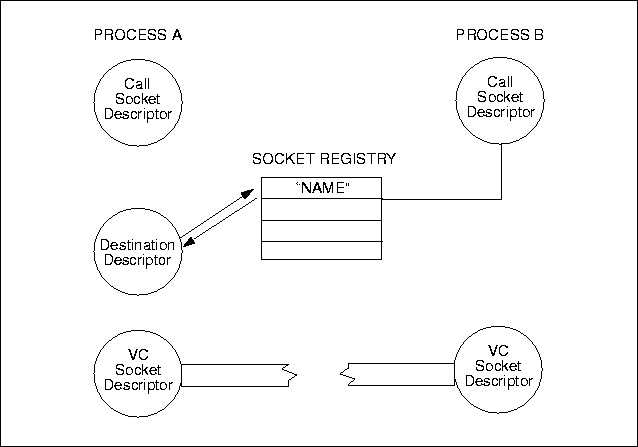

5. Receiving a Connection Request
Using the call socket descriptor returned by its IPCCREATE call,
Process B calls IPCRECVCN to receive any connection requests. In this
example, Process B receives a connection request from Process A. (Process A
"dialed its telephone" to call Process B when it called IPCCONNECT.)
IPCRECVCN returns a VC socket descriptor in its vcdesc
parameter (see Figure 1-6 "IPCRECVCN
(Process B)"). This VC socket is the endpoint of the virtual circuit at
Process B. The connection will not be established, however, until Process A
calls IPCRECV. In the telephone analogy, IPCRECVCN is
similar to picking up a ringing phone and saying "hello".
Figure 1-6 IPCRECVCN (Process B)

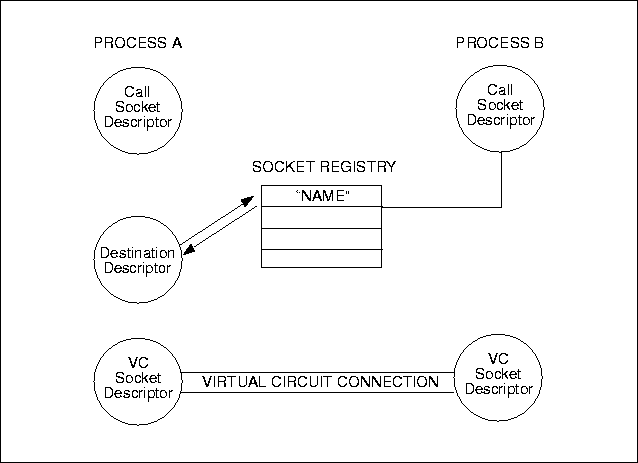

6. Checking the Status of a Connection
Process A calls IPCRECV using the VC socket descriptor returned by
its IPCCONNECT call. IPCRECV returns the status of the
connection (successful/unsuccessful) initiated by IPCCONNECT. If the
status is successful, the connection has been established and Process A and
Process B can "converse" over the new virtual circuit (see
Figure 1-7 "IPCRECV (Process A)").
Compared to the telephone system, IPCRECV is similar to saying
"hello" in response to the "hello" from the other end of the phone.
IPCRECV can also be used to receive data. This function is described
in the IPCRECV call discussion later in this section.
Figure 1-7 IPCRECV (Process A)
Connection Establishment Summary
The following discussions summarize the methods for establishing connections
using NetIPC intrinsics.
Connection Establishment Using IPCNAME

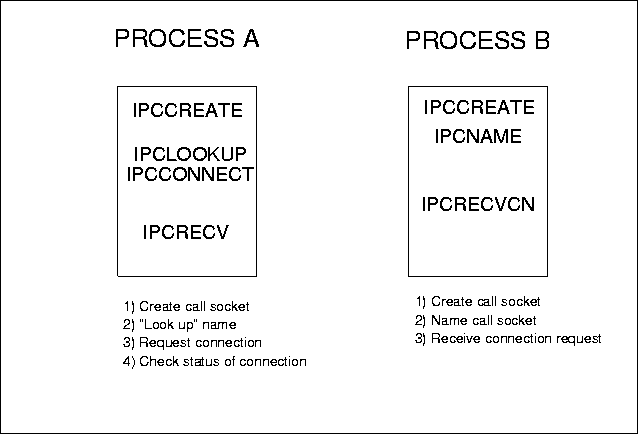

Figure 1-8 "Establishing a Connection
(Summary)" illustrates the sequence of NetIPC calls that is used to
establish a virtual circuit connection. This figure summarizes the information
presented in previous Figures.
Figure 1-8 Establishing a Connection (Summary)
\
Connection Establishment Using IPCDEST

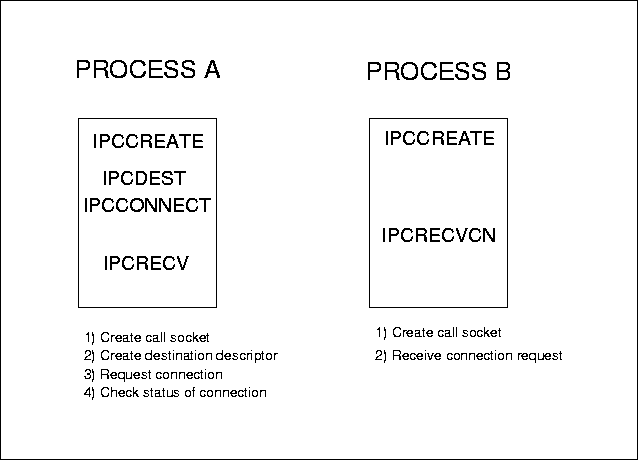

Figure 1-9 "Using IPCDEST" illustrates the
sequence of NetIPC calls that is used to establish a virtual circuit
connection when the protocol relative address of the remote node is known.
Figure 1-9 Using IPCDEST
Sending and Receiving Data Over a Connection
Once a virtual circuit connection is established, the two processes can
exchange data using the NetIPC calls IPCSEND and IPCRECV.
Either process can send or receive data. IPCSEND is used to send data
on an established connection; it is analogous to "speaking" over a telephone
connection. IPCRECV is used to receive data on an established
connection; the use of IPCRECV is similar to "listening" at our
telephone handset. (Note that IPCRECV has a dual function: to
complete a virtual circuit connection as well as to receive data on a
previously established connection.)
X.25 Access
Direct access to level 3 (X.25) provides message mode transfer. Stream mode is
not supported for X.25. Each IPCRECV returns a complete message
(provided the data length specified is of sufficient size). The X.25 protocol
signals the end of message and NetIPC buffers the message until an
IPCRECV (or required IPCRECVs), retrieve it.
TCP Access
For TCP access, all data transfers between user processes are in stream mode.
In stream mode, data is transmitted as a stream of bytes with no
end-of-message markers. This means that the amount of data received in an
individual IPCRECV is not necessarily equivalent to the amount of
data sent in an IPCSEND call. In fact, the data received may contain
part of a message or even several messages sent by multiple IPCSEND
calls.
You specify the maximum number of bytes you are willing to receive through a
parameter of IPCRECV. When the call completes, that parameter
contains the number of bytes actually received. This will never be more
than the maximum amount you requested, but it may be less. The data you
receive will always be in the correct order (in the order that the messages
were sent), but there is no indication of where one message ends and the next
one starts. It is up to the receiving process to check and interpret the data
it actually receives. An application which does not need the information in
the form of individual messages can simply process the data on the receiving
side.
If an application is concerned about messages, the programmer must devise a
scheme that allows the receiving side to determine what the messages are. If
the messages are of a known length, the receiving process can execute a
loop which calls IPCRECV with a maximum number of bytes equal to the
length of the portion of the message not yet received.
Since IPCRECV returns to you the actual number of bytes received, you
can continue to execute the loop until all the bytes of the message have been
received. The following Pascal program fragment demonstrates this idea:
received_len := 0;
while (received_len < msg_length) and (errorcode = 0) do
begin
data_len := msg_length - received_len;
ipcrecv( connection, tempbfr, data_len,,,errorcode );
if errorcode = 0
then strmove(data_len,tempbfr,1,databfr,
received_len+1);
received_len := received_len + data_len;
end;
In the above example, the Pascal function strmove takes each piece of
the message received in tempbfr and concatenates it to the portion of
the message already in databfr. Upon exiting the loop, the entire
message has been stored in databfr.
If the length of the messages are not known, the sending side could send the
length of the message as the first part of each message. In that case, the
receiving side must execute two IPCRECV loops for each message:
first to receive the length and then to receive the data. An example of this
technique is shown at the end of this section.
Shutting Down Sockets and Connections
The NetIPC call IPCSHUTDOWN releases a descriptor and any resources
associated with it. IPCSHUTDOWN can be called to release a call
socket descriptor, a destination descriptor, or a VC socket descriptor.
Because system resources are being used whenever descriptors exist, you should
probably release them when they are no longer needed.
The call socket is needed as long as a process is expecting to receive a
connection request on that socket. A process which receives a connection
request can release the call socket any time after the IPCRECVCN
connection request, as long as no other connection requests are expected for
that call socket.
Similarly, a process which requests a connection can release its call socket
any time after the call to IPCCONNECT, as long as it is not expecting
to receive any more connection requests for that socket.
For TCP only, a process does not need to create a call socket (via
IPCCREATE) at all; instead, it can use a temporary call socket by
calling IPCCONNECT without specifying a call socket descriptor. (A
temporary call socket is automatically destroyed when the IPCCONNECT
call completes.) A process which requests a connection can also release the
destination socket any time after the call to IPCCONNECT.
For example, in the section "Establishing a Connection", Process A no longer
needs the destination descriptor after calling IPCCONNECT and can use
IPCSHUTDOWN to release the destination descriptor. In addition, if
Process A does not expect to request additional connections, it can also call
IPCSHUTDOWN a second time to release the call socket.
Process B, as described in "Establishing a Connection", can call
IPCSHUTDOWN to release its call socket any time after the call to
IPCRECVCN (see "Receiving a Connection Request"). Process B should
release its call socket only if it does not want to establish additional
connections.
Before a process terminates, it should terminate its virtual circuit
connections by releasing its VC sockets with IPCSHUTDOWN. If a
process does not release its VC sockets before terminating, the system
releases them when the process terminates. Because IPCSHUTDOWN takes
effect very quickly, all of the data that is in transit on the connection
is lost when the connection is shut down. As a result, if there is a
possibility that data is in transit on the connection, the processes that
share a connection must cooperate to ensure that no data is lost.
X.25 Access
X.25 direct access to level 3 does not support the graceful release bit.
Using IPCSHUTDOWN on a VC socket descriptor causes a clear packet to
be sent.
To ensure that no data packets are lost before the clear packet is sent, the
D bit option can be set in the last IPCSEND. This assures end-to-end
acknowledgment of this message before issuing the IPCSHUTDOWN to
clear the virtual circuit.
Another method to ensure no lost packets is to send an unimportant message as
the last message. The following example shows the calling sequence you would
use. Note that the "dummy" message may or may not be received by the last
IPCRECV. If the last message is not received, a SOCKERR 67
"CONNECTION FAILURE DETECTED" is returned.
IPCSEND ---> IPCRECV
(important message) (important message
received)
<---- IPCSEND
(dummy message sent)
IPCRECV
(receive dummy IPCSHUTDOWN
message)
IPCSHUTDOWN
TCP Access
To ensure that no data is lost, the IPCSHUTDOWN
graceful release bit can be set, and the following sequence of steps
can be followed:
- Process A calls IPCSHUTDOWN and sets bit 17, the graceful
release flag. Process B receives a message (with an IPCRECV)
informing it that Process A has called for graceful release.
(This message is sent to B automatically when A sets the graceful
release flag.) Process A enters a simplex-in state; meaning, it can
receive, but not send, data. Process B will enter a simplex-out state,
that is, it can send but cannot receive data. As a result, data that is
in transit to Process A (which initiated the graceful release
shutdown) will reach Process A without being lost.
- Next, one of two steps must occur to completely shut down the connection.
Either (1) Process B initiates with or without its own graceful
release or (2) Process A calls IPCSHUTDOWN without
the graceful release option.
- This releases Process A's VC socket descriptor and shuts down the
connection. In this case, Process B must also release its socket
descriptor by calling IPCSHUTDOWN.
If the graceful release option is not used (this may be necessary,
for example, if the remote node does not support graceful release)
the following steps should be followed when shutting down a connection.
- Process A sends a "last message" to Process B via an IPCSEND
call. This message contains data that is recognized by Process B as a
termination request, and may also contain data to be processed by
Process B. Process A then calls IPCRECV.
- Process B receives the message from Process A with a call to
IPCRECV and sends a "confirmation message" to Process A via
IPCSEND. This message contains data that indicates to Process A
that it is okay to terminate the connection, and may also contain data
to be processed by Process A. Process B then calls IPCRECV.
- Process A receives a "confirmation message" from Process B via the call
to IPCRECV and calls IPCSHUTDOWN to release its VC
socket descriptor and shut down the connection.
-
The IPCRECV call of Process B completes with a result
parameter value of 64 ("REMOTE ABORTED THE CONNECTION"). It then calls
IPCSHUTDOWN to release its VC socket.
Additional NetIPC Functions
Once a virtual circuit is established between processes, descriptors can be
given away, names can be erased, and other functions can be performed. The
following NetIPC calls are provided in addition to those described in the
previous paragraphs to enable you to perform these additional functions. A
brief introduction to each call and its use follows. A complete description of
NetIPC calls is provided in Chapter 3 "NetIPC
Intrinsics"
- IPCCONTROL. Performs special operations on sockets such as
enabling synchronous mode, and changing asynchronous timeout values.
- IPCDEST. Returns a destination descriptor which can be used to
send messages to another process. This is an alternative to naming the
descriptor with IPCNAME and acquiring it with
IPCLOOKUP.
- IPCGET. The companion call to IPCGIVE. Receives a call
socket or virtual connection given away by a process that has called
IPCGIVE. This call is similar to IPCLOOKUP because it
enables your process to acquire a descriptor that can be used in
subsequent NetIPC calls.
- IPCGIVE. The companion call to IPCGET. Releases
ownership of a descriptor to NetIPC so that it can be acquired by
another process via a call to IPCGET.
- IPCNAMERASE. Does the reverse of IPCNAME: it removes a
name associated with a call socket from the socket registry. Only the
owner of a call socket descriptor can remove its name.
|
![[IPCCREATE (Processes A and B)]](img/gfx2.gif)
![[IPCNAME (Process B)]](img/gfx3.gif)
![[IPCLOOKUP (Process A)]](img/gfx4.gif)
![[IPCCONNECT (Process A)]](img/gfx5.gif)
![[IPCRECVCN (Process B)]](img/gfx6.gif)
![[IPCRECV (Process A)]](img/gfx7.gif)
![[Establishing a Connection (Summary)]](img/gfx8.gif)
![[Using IPCDEST]](img/gfx9.gif)
