The procedures that follow describe how to modify the NMMGR configuration file
and network directory file for X.25 iX System Access configuration. These
procedures assume that you have already configured the datacommunications and
terminal subsystem (DTS) for this system. See Chapter 3
"Configuring DTCs Step-by-Step" for information on DTS configuration.
Step 1: Begin the Configuration Process
Run the NMMGR program. Node manager (NM) or network administrator (NA)
capabilities are required to run this program. To run NMMGR:
- Type NMMGR.PUB.SYS at the MPE/iX prompt (:).
- Press [Return].
 |
NOTE: You cannot modify the X.25 iX transport and link configurations
in NMCONFIG.PUB.SYS if the Network Services are active. Verify that
the Network Services are not running by issuing the NETCONTROL STATUS
command. You must have NM (Node Manager) capability to issue this command.
If NS is down, you will see the following two messages in response to the
NETCONTROL STATUS command:
TRANSPORT NOT ACTIVE. (NETXPORTWARN 0001)
ENCOUNTERED ONE OR MORE WARNINGS
WHILE PROCESSING COMMAND. (CIWARN 4437)
|
Step 2: Open the Configuration File
The first screen that NMMGR displays is the Open Configuration/Directory File
screen (Figure 6-1 "Open
Configuration/Directory File Screen"). You should already have created the
configuration file you are using when you configured DTS. (If you have not
already configured DTS, stop here, and go to Chapter 3
"Configuring DTCs Step-by-Step" for step-by-step instructions.

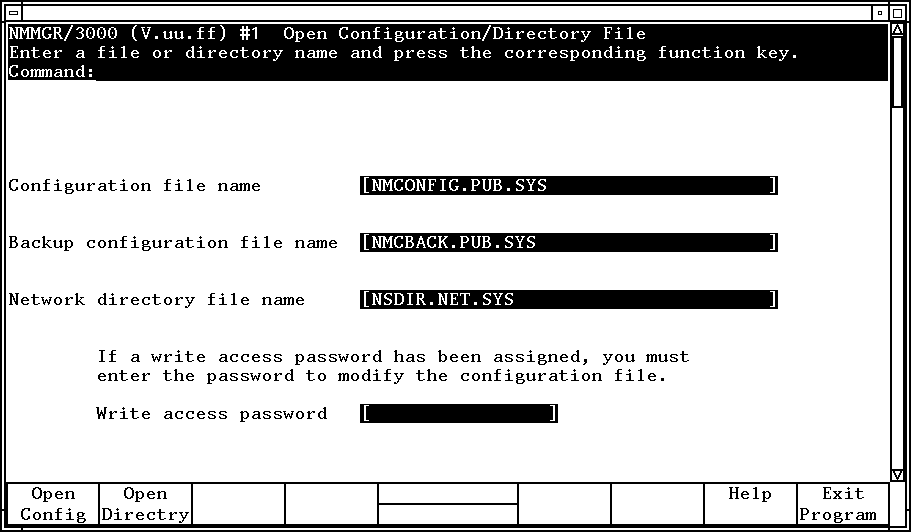

Figure 6-1 Open Configuration/Directory File Screen
- Verify that the correct configuration file name, backup configuration
file name, and network directory file name are in the appropriate
fields
- If you have assigned a write access password, enter it in this field.
If you are not using the password feature, leave this field blank.
- Press the [Open Config] key.
Fields
- Configuration file name
- The only configuration file name the system recognizes for use by the
network subsystem is NMCONFIG.PUB.SYS. You can, however, create
or modify a configuration file using a different name and save it as an
offline configuration file. You can use offline configuration
files as a means of creating and storing configurations that you want to
use in the future or that you are preparing for use on a different
system. When you are ready to use an offline configuration file, rename
it as NMCONFIG.PUB.SYS, validate within NMMGR (SYSGEN
cross-validation is done automatically within NMMGR). Use DTCCNTRL to
shutdown and restart DTS or reboot the system.
- Backup configuration file name
- A backup file name must be specified whenever a configuration file is
opened or created. The default backup configuration file name is
NMCBACK.PUB.SYS. The backup file will be automatically updated
with the contents of the configuration file each time the configuration
file is successfully validated.
- Network directory file name
- The network directory file must be configured for each new node (unless
you will only be accessing the node using direct level 3 access). The
network directory contains information that one X.25 node needs in order
to communicate with other X.25 nodes. The only network directory file
name supported by HP is NSDIR.NET.SYS. This file is part of a
KSAM pair. A key file is created at the same time as this data file. The
key file will automatically be named using the first six letters of the
network directory file name, appended with the character K. For example,
NSDIRK.NET.SYS is the name of the key file associated with the
data file NSDIR.NET.SYS.
- Write access password
- The password is an optional feature. If a password has been assigned,
you must enter it in the password field to update the configuration file.
It is still possible to open the file without using an assigned password,
but the file will be in read only mode and NMMGR will not accept any
changes.
If a password has not been assigned, you should ignore the password
field.
If you want to assign a password for the system you are configuring, see
Using the Node
Management Services (NMS) Utilities manual.
Step 3: Select NS Configuration
NMMGR displays the Main screen (Figure 6-2
"Main Screen") after you create or open a configuration file.

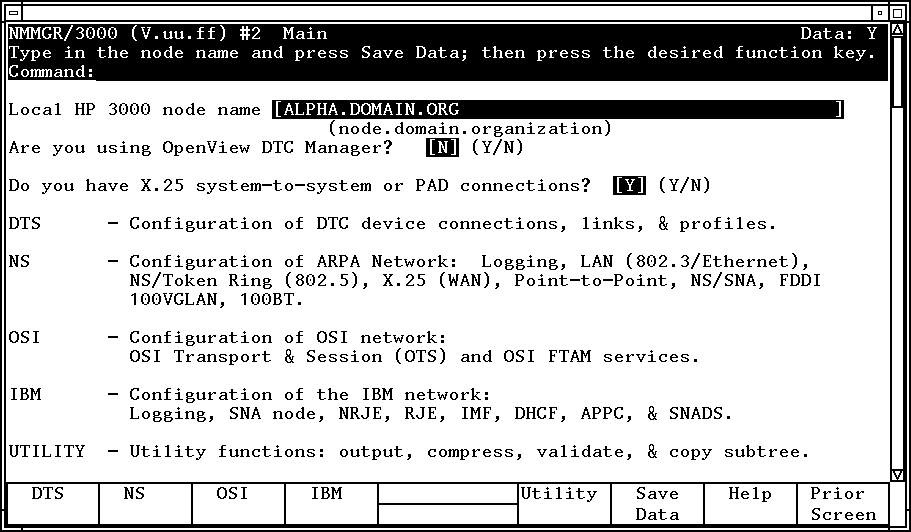

Figure 6-2 Main Screen
- You should already have configured a local node name and entered the
other information required for this screen. Verify that the information
is correct
- Press the [NS] key to select the NS configuration branch.
Fields
- Local HP 3000 node name
- The local HP 3000 node name is the name by which the HP 3000 Series 900
computer is known in the network. The format of a node name is
nodename.domain.organization where the total number of
characters is 50 or fewer, and each field contains 16 or fewer
characters (alphanumeric, underscore, or hyphens). The first character
of each field must be alphabetic.
The nodename portion of each node name must be unique
within the node's network. The nodename.domain portion
of each node name must be unique within the internetwork. HP recommends
that all nodes on the network be assigned the same domain and
organization.
Assign meaningful node names. For example, MKTG.ITG.HP and
LAB.ITG.HP are meaningful names for two nodes on the same Local
Area Network (LAN) within Hewlett Packard. One node
(MKTG.ITG.HP) is used by the marketing department. The other
node (LAB.ITG.HP) is used by the lab. The domain
field is the same because the nodes belong to the same network. The
organization field is the same because the nodes belong
to the same internetwork.
- Are you using OpenView DTC Manager?
- If you answer yes (Y) to this question, NMMGR assumes you are
using a PC to manage your system and takes you to the corresponding set
of screens. If you answer no (N), NMMGR assumes you are using
host-based network management and takes you to the set of screens
required for host configuration. If you are using this manual, you
should have entered an N in response to this question when you
configured your DTCs.
- Do you have X.25 system-to-system or PAD connections?
- If you answer yes (Y) to this question, NMMGR assumes you are
configuring X.25 connections and takes you to the set of screens
required to configure DTC X.25 Network Access Cards when you configure
DTS. If you answer no (N), NMMGR assumes you have no need to
configure X.25 connections and takes you to a different set of screens.
If you are using this manual, you should have entered a Y in
response to this question when you configured your DTCs.
Step 4: Select Guided Configuration
NMMGR displays the NS Configuration screen
(Figure 6-3 "NS Configuration Screen")
if you press the [NS] key at the Main screen.

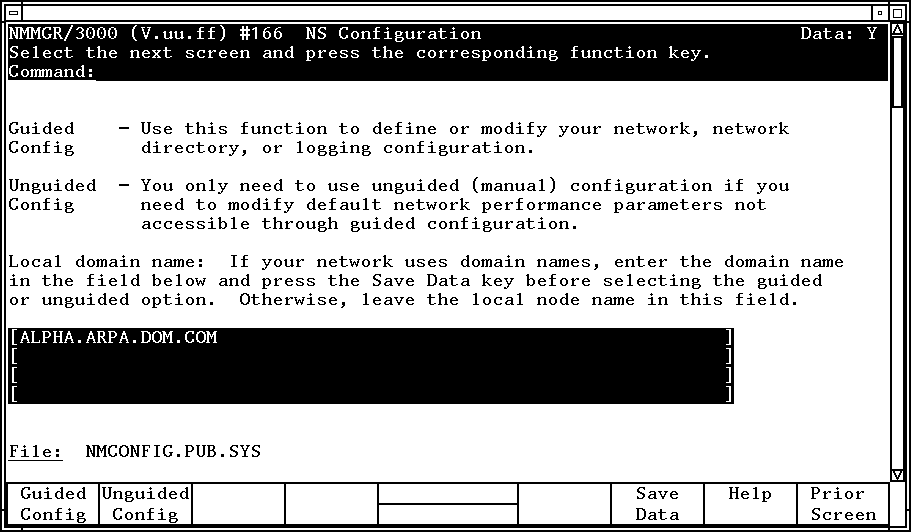

Figure 6-3 NS Configuration Screen
- If you are using domain names for network access, replace the node name
in the field at the bottom of the screen with this system's domain name
and press the [Save Data] key. If not using domain names, leave
the local HP 3000 node name in this field.
- Press the [Guided Config] key to proceed with guided
configuration of X.25 iX System Access.
Fields
- Local domain name
- The name of this system in the ARPANET standard format. This name can be
used by other nodes on the network to access this host.
The domain name is composed of labels, with each label separated by a
period. Each label must start with a letter or digit, and have as
interior characters only letters, digits, hyphens (-), or underbars (_).
A domain name may have any number of labels, but its total length,
including periods, is limited to 255 characters.
label[.label][...]
Domain names are not case sensitive.
Use of domain names is optional. If you are not using domain names for
network access, leave the local HP 3000 node name in this field.
Step 5: Perform Guided Network Transport Configuration
NMMGR displays the Network Transport Configuration screen
(Figure 6-4 "Network Transport configuration
Screen") if you press the [Guided Config] key at the NS
Configuration screen.

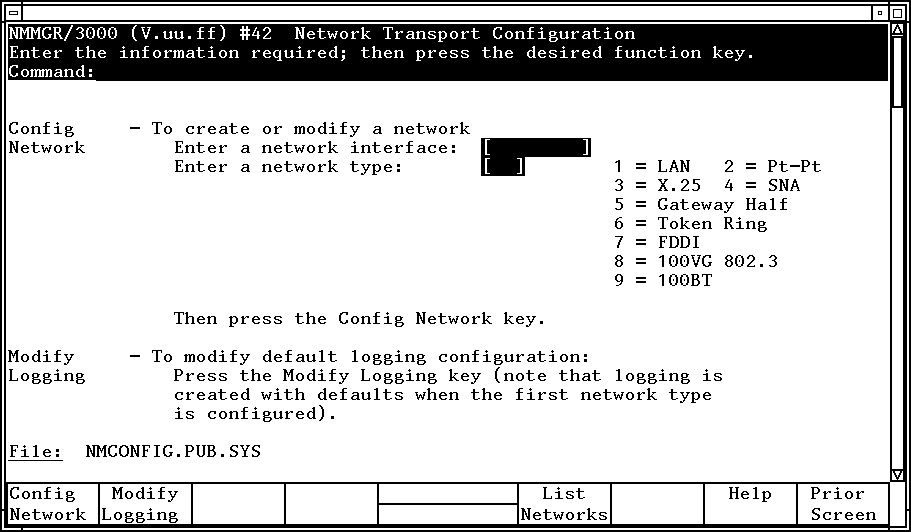

Figure 6-4 Network Transport configuration Screen
- Next to the words Enter a network interface:, enter a name for
the network interface (for example, X25NI).
- Next to the words Enter a network type:, enter a 3 to
indicate that the NI is an X.25 NI.
- Press the [Config Network] key. (There may be a short pause
before the next screen appears.)
Fields
- Enter a network interface
- The network interface name (NI name) is used to easily identify one of
the types of network interfaces: X.25, LAN, point-to-point (router),
gateway half, SNA, or token ring. The name can be up to eight
alphanumeric characters, starting with a letter. The maximum number of
NIs that can be configured on a node is 12. One of the 12 allowable NIs
is reserved for loopback. (Loopback is configured for you automatically.)
If a node interfaces to more than one network, give each NI on that node
a unique name. Although all nodes on the same network do not have to
have the same NI name, it will be easier to remember if you make the NI
name the same for all nodes on the same network (for instance,
X25net1). You will use the NI name with the NETCONTROL
command to start the transport and network link.
 |
NOTE: You can have more than one X.25 NIs configured for the same
X.25 card on one MPE/iX system, but only one can be running at any one time.
|
- Enter a network type
- Number that indicates the type of network interface you are configuring.
You must enter a network type if you are configuring a new network
interface. Network type 3 is the only type used when
configuring host-based X.25 links.
 |
NOTE: The only link protocol that can be used as a gateway half is
that of the NS Point-to-Point 3000/iX link. X.25 iX System Access cannot be
configured as a gateway half. Yet, these two types of software can coexist
on the same node. To configure an internetwork gateway half, refer to the
HP3000/iX Network Planning and Configuration Guide.
|
Step 6: Configure X.25 Network
NMMGR displays the X.25 Configuration screen (
Figure 6-5 "X.25 Configuration Screen") when you press the
[Config Network] key at the Network Transport Configuration screen with
an NI type of 3 (X.25).

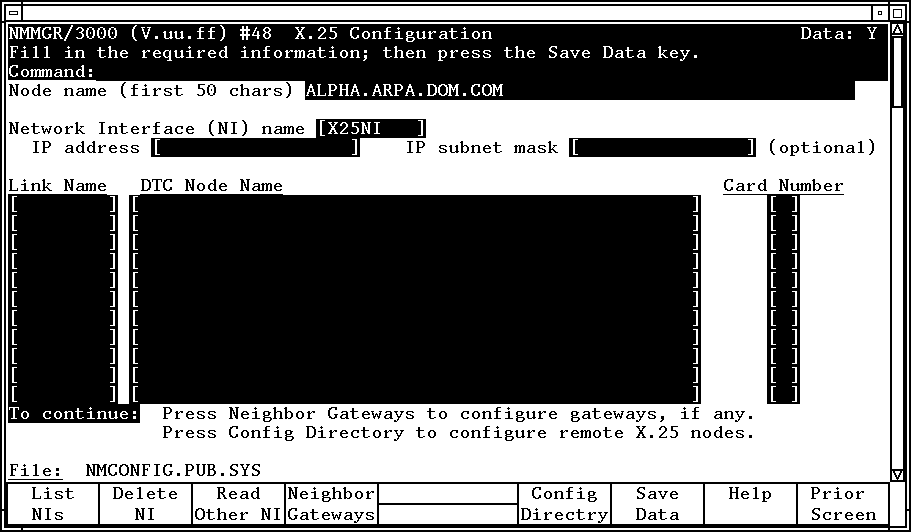

Figure 6-5 X.25 Configuration Screen
![[X.25 Configuration Screen]](img/gfx30.gif)
- In the IP address field, enter the internet protocol (IP)
address for the node being configured. An example of an address is:
C 192.191.191 009
- The IP subnet mask is optional. If entering one, tab to the IP
subnet mask field and enter the number in the same format as an IP
address. The 32-bit mask is grouped in octets expressed as decimal
integers and delimited by either a period (.) or a space. The mask
identifies which bits of an IP address will be used to define a
subnetwork. To determine these bits, you first need to estimate how many
subnetworks and nodes per subnetwork you need. For details on deriving
an IP subnet mask, refer to the
HP 3000/iX Network Planning and Configuration Guide.
- Move to the first Link Name field. Enter a link name to
represent the DTC/X.25 Network Access card for which you are configuring
a link. This name must be unique to both the node and the DTC. The link
name must be the same as the link name configured for this card on the
DTC X.25 Card Configuration — Sys-to-Sys LUGs screen during the
DTC configuration see Chapter 3 "Configuring DTCs
Step-by-Step"
- Enter the node name of the DTC that houses the DTC/X.25 Access card in
the first DTC Node Name field the enter the slot number of the
card in the Card Number field. Enter a link name, DTC node name,
and card number for each link you are configuring.
- When you are done adding links, press the [Save Data] key.
- If the network that this node is on contains ANY internetwork gateway
(either full or half) press the [Neighbor Gateways] key and
proceed to the section in this chapter called "Configure Neighbor
Gateways."
- If the network that this node is on contains NO internetwork gateways or
if you have already configured gateways for this system, press the
[Config Directry] key and proceed to the section in this chapter
called "Configure X.25 Virtual Circuits".
Fields
- Node name
- Display only. This is the Local HP 3000 node name.
- Network interface (NI) name
- Display only.
- IP address
-
The IP address is an address of a node on a network. An IP address has
two parts: a network portion and a node portion. The network
portion must be the same for all nodes on an X.25 network; the
node portion must be unique for all nodes on an X.25
network.
HP assigns the network portion (initial nine digits) of IP addresses
from ARPA Class C, though your addresses may also be of Classes A or B.
The complete formats are:
Class A: nnn.xxx.xxx.xxx
Class B: nnn.nnn.xxx.xxx
Class C: nnn.nnn.nnn.xxx
Where: nnn = the network portion of the IP address
and
xxx = the node portion of the IP addres
Note: A space separates the network and node
portions of the IP address.
For Class C, the node portion of the IP address must be
between 000 and 255.
If you are adding your NS 3000/iX node to an existing NS 3000/V
network, the network portion of each node's IP address should be the
same. You will have to find out what this is, and use it in the
network portion of the IP address of your NS 3000/iX node. Also, you
will need to know the node portions of the IP addresses of each of the
nodes (usually they will be numbered sequentially, such as
001, 002, and so on), so that you can specify a
unique node portion for the IP address of your node. If you have a
network map, it should provide a record of such items as the node name
and IP address of each node. If there is no record, and if you want to
find out each node's IP address, you will have to issue the following
command (NM capability required) on each of the nodes:
NETCONTROL NET=NIname;STATUS
The last line of output from this command tells you what the complete
IP address is for that node; the last three digits are the unique node
portion of the address.
- IP subnet mask
- An IP subnet mask is specified in the same format as an IP address.
The 32-bit mask is grouped in octets expressed as decimal integers and
delimited by either a period (.) or a space. An IP mask is used when
configuring subnetworks. The mask identifies which bits of an IP
address will be used to define a subnetwork. To determine these bits,
you first need to estimate how many subnetworks and nodes per
subnetwork you need. For details on deriving an IP subnet mask, refer
to the
HP 3000/iX Network Planning and Configuration Guide.
- Link Name
- The link name identifies a specific DTC/X.25 Network Access card to be
used for X.25 system-to-system connections. This link name must be the
same as the link name you entered for this card on the DTC X.25 Card
Configuration — Sys-to-Sys LUGs screen when you configured your
DTCs, see Chapter 3 "Configuring DTCs
Step-by-Step"
- DTC Node Name
- The DTC node name is the fully qualified nodename
(name.domain.organization) of the DTC that contains
the DTC/X.25 Network Access card with the configured link name.
- Card Number
- The DTC card number is the number of the DTC/X.25 Network Access card
in the associated DTC. If the card is contained in a DTC 48, the DTC
card number can be any number from 1 to 5. If the card is contained in
a DTC 16, the card number must be 2. If the card is contained in a DTC
72, the DTC card number can be any number from 0 to 3.
Step 7: Configure X.25 Virtual Circuits
NMMGR displays the X.25 Virtual Circuit Configuration screen
(Figure 6-6 "X.25 Virtual Circuit
Configuration Screen") if you press the [Config Directry] key from
the X.25 Configuration screen. This screen lets you configure the network
directory.

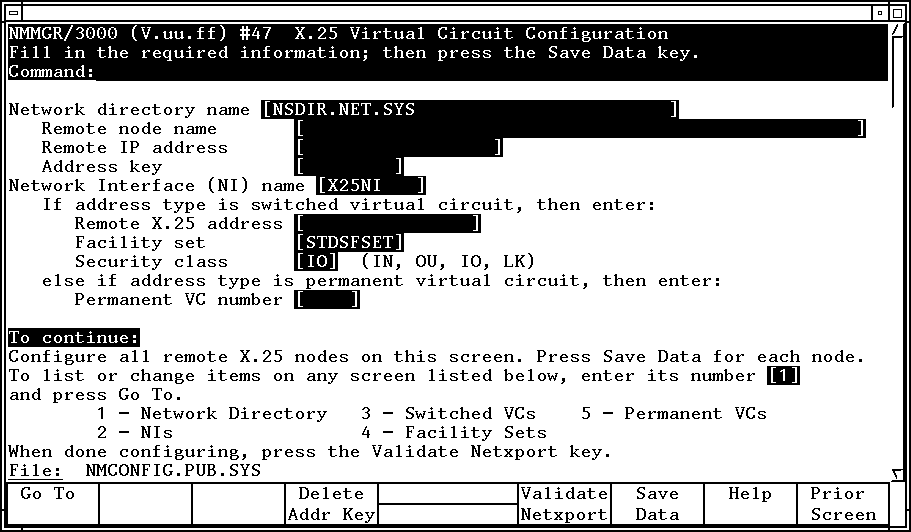

Figure 6-6 X.25 Virtual Circuit Configuration Screen
![[X.25 Virtual Circuit Configuration Screen]](img/gfx31.gif)
- In the Remote node name field, enter, in turn, the nodename of
each remote X.25 node on your network in the format
nodename.domain.organization. Also, if you need to be
able to perform a loopback DSLINE command to the local node, then
enter the local HP 3000 node's name here as well.
- For each remote nodename, type the IP address of the node in the
Remote IP address field.
- To specify that calls can be made to a node, enter its address
key in the Address key field. Enter the node portion
of the remote node's configured nodename.
 |
NOTE: An address key called POOL is already preconfigured
for you though it doesn't show up on the screen. POOL allows the
node being configured to receive any incoming calls even if the
remote system's address is not configured on this screen. POOL will
also allow you to use NetIPC to programmatically provide an X.25 address
that is not configured on this screen. If you want to delete the
POOL address key, in the last line of the X.25 Virtual Circuit
Configuration screen enter a 3 (for switched VCs) and press the
[Go To] key. That brings you to the X.25 SVC Address Key Paths screen
where you can then remove the default name POOL by typing over it
with spaces and then saving the data.
|
- If the address type is a switched virtual circuit, complete steps a
through c, but if the address type is a permanent virtual circuit, skip
to step 5.
- In the Remote X.25 address field, enter the X.25 address
of the remote host for X.25 public data networks or private
networks.
- Make sure the name of the facility set you are using is in the
Facility set field. You may either choose the default
facility set (STDSFSET) or enter an alternative. If you
are configuring a new facility set, enter a new name. (To modify
facility set parameters, enter a 5 in the last field on
the screen and press the [Go To] key.)
- In the Security class field, enter the level of logical
security you want to have on this particular entry. The possible
values are IN (accept calls from the address),
IO (accept calls from and send calls to the address,
default), OU (send calls to the address, incoming calls
are rejected), and LK (block calls to or from the
address).
- If the address type is a permanent virtual circuit (PVC), in the
Permanent VC number field, enter the PVC number of the PVC on
the remote node. This value cannot be greater than the number of PVCs
for which you are subscribed. It must be within the PVC range you
defined during DTC configuration.
- After you have finished entering new information for each remote node,
press the [Save Data] key. (Press the key once for each remote
node you are configuring.)
- If you have completed configuration of X.25 iX System Access, press the
[Validate Netxport] key. Otherwise, press the [Prior
Screen] key to return to the X.25 Configuration screen.
Fields
- Network directory name
- The network directory file that will be updated by the information
entered through this screen.
- Remote node name
- You must enter the remote node name of each X.25 node into the network
directory. Include entries for all remote nodes and, if you want to be
able to perform loopback, the local HP 3000 node as well.
- Remote IP address
- Also in the network directory, you must enter the IP Address of each
node whose identity you have entered into the network directory. For the
format of this parameter, see the information in the "Fields" section
under "X.25 Configuration."
- Address key
- The X.25 address key is the name of a remote node with which your local
node will be communicating. Hewlett-Packard recommends that you make the
name be the node portion of the remote node's name (where its full name
is node.domain.organization). You must configure an X.25
address key for each remote node with which your node will be
communicating. You have a combined maximum of 1024 X.25 address keys in
the SVC and PVC path tables. The X.25 address key name must be eight
characters or less and the first character must be alphabetic. A default
address key called POOL allows any system to access the local
system even if the remote system's address is not configured.
POOL can also be used when level 3 programmatic access (NetIPC)
provides an X.25 address.
- Network interface (NI) name
- Display only.
- SVC or PVC Parameters
- The parameters for assigning either SVCs or PVCs are described in the
following paragraphs.
For SVCs
- Remote X.25 address
- The remote X.25 Address is the remote node's X.25 address. This address
is required for SVCs if you have specified an X.25 address key. This
address must be 15 digits or less.
- Facility set
- The facility set name is a name for a set of X.25 connection parameters.
The parameters are determined by the type of X.25 network that you are
subscribed to. You can configure options in a facility set so that
specified options are available for every virtual circuit or negotiated
for each virtual circuit on a per-call basis. This facility set will be
used when a connection is made from your node to the specified remote
node or from the specified remote node to your node. A Facility Set is
required for SVCs if you have specified an X.25 Address Key. The
facility set name must be eight characters or less, and the first
character must be alphabetic. You can configure up to 128 facility sets.
To modify facility set parameters, enter a 5 in the field at the bottom
of the screen and press the [Go To] key. This will take you to
the X.25 User Facility Sets screen. From this screen you can create new
or modify existing user facility sets. Refer to the
NS 3000/iX NMMGR Screens Reference manual for more information.
- Security Class
- The security class is the level of logical security you want to have
when a connection is made to or from the specified remote node. A
Security level is required for SVCs if you have specified an X.25
Address Key. The possible values are as follows:
- IO — Both incoming and outgoing calls are accepted.
This is the default value.
- IN — Only incoming calls are accepted from this
particular remote address. Outgoing calls will be rejected.
- OU — Only outgoing calls are accepted to this
particular remote address. Incoming calls will be rejected.
- LK — Entry is locked. No call is accepted, either
inbound or outbound.
For PVCs
- Permanent VC number
- The PVC number identifies a permanent virtual circuit (PVC) on the
remote node. If you have entered a name in the X.25 Address Key field
and are configuring PVCs, then you also have to enter a value for the
PVC number.
|
