You must define the characteristics of the X.25 iX System Access link or links
that you will be configuring. You must specify a link name and configuration
for each DTC/X.25 Network Access card that will be used for X.25
system-to-system connections.
Several of the parameters that you will configure for X.25 iX System Access
through the NS configuration must match the parameters you configured for DTS
(chapters 2 and 3). The common parameters are:
- Link name.
- DTC node name.
- Card number of the DTC/X.25 Network Access card in the DTC.
- If you configure user facility set parameters, these parameters should
also match the parameters specified in the DTS configuration.
Once you have defined the characteristics of the X.25 network, transfer this
information onto the X.25 Configuration Worksheet and the X.25 Virtual Circuit
Configuration Worksheet.
X.25 Configuration Worksheet
Fill out worksheet as shown in Figure 5-1
"X.25 Configuration Worksheet" for the X.25 iX System Access links you are
configuring.

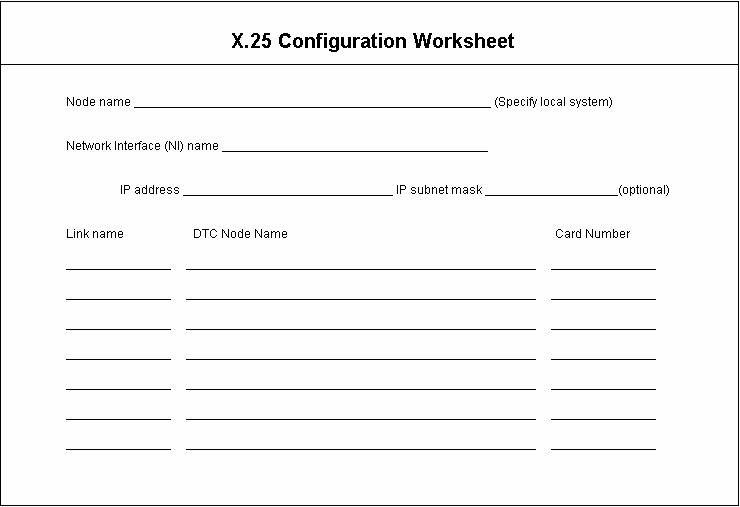

Figure 5-1 X.25 Configuration Worksheet
X.25 Virtual Circuit Configuration Worksheet
Fill out worksheet as shown in Figure 5-2
"X.25 Virtual Circuit Configuration Worksheet" for each X.25 iX System
Access link you are configuring.

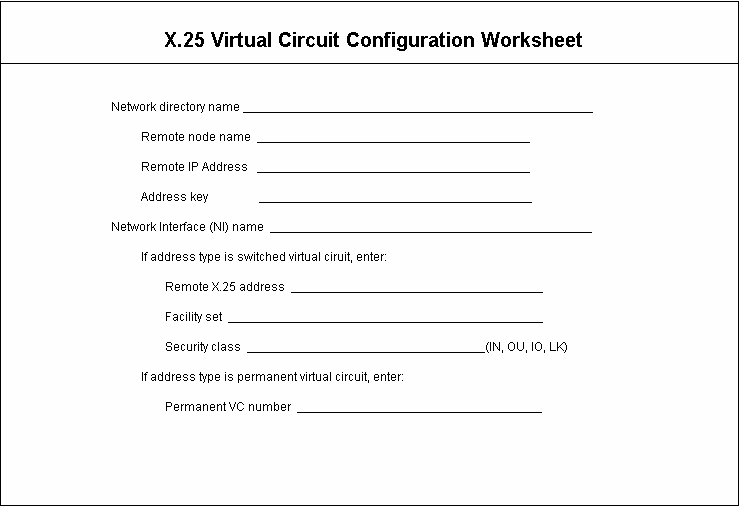

Figure 5-2 X.25 Virtual Circuit Configuration Worksheet
|
