Before you start NMMGR, use the worksheets provided here to gather the necessary configuration information. Make copies of these worksheets and fill in the parameter information, then use the worksheets to guide you through configuration in NMMGR.

DTC Configuration Worksheet

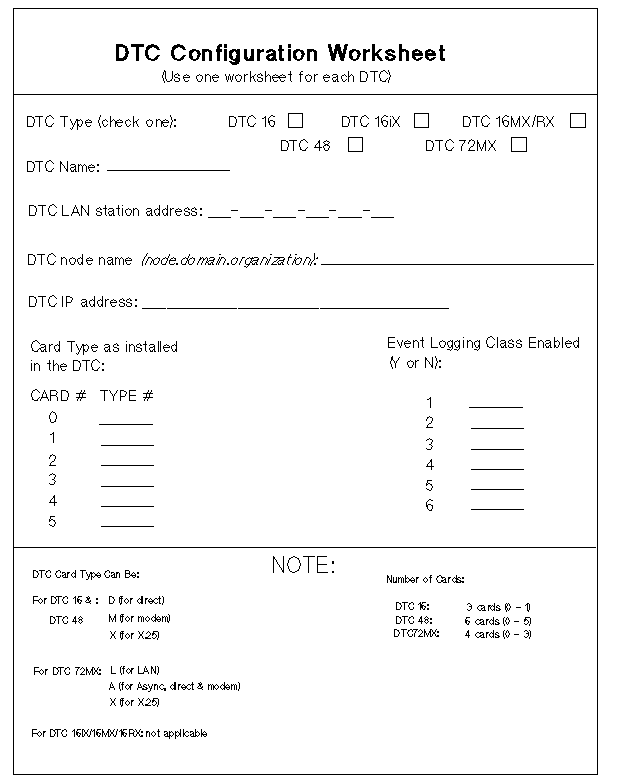

Fill out worksheet as shown in Figure 2-2 "DTC Configuration Worksheet" for each DTC you are configuring.

Figure 2-2 DTC Configuration Worksheet

DTC Card Configuration Worksheet

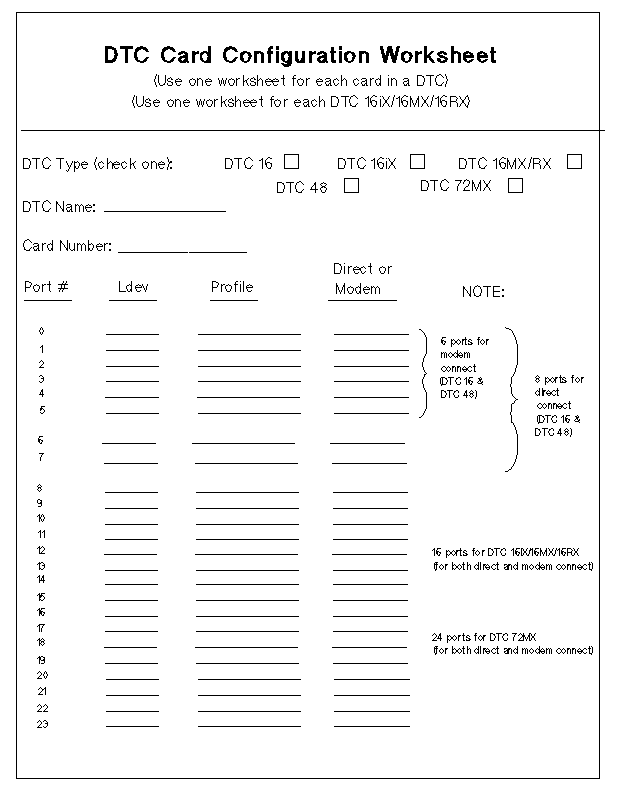

Fill out worksheet as shown in Figure 2-3 "DTC Card Configuration Worksheet" for each direct connect card you are configuring.

Figure 2-3 DTC Card Configuration Worksheet

DTC X.25 Card Configuration — Level 1 and Level 2 Worksheet

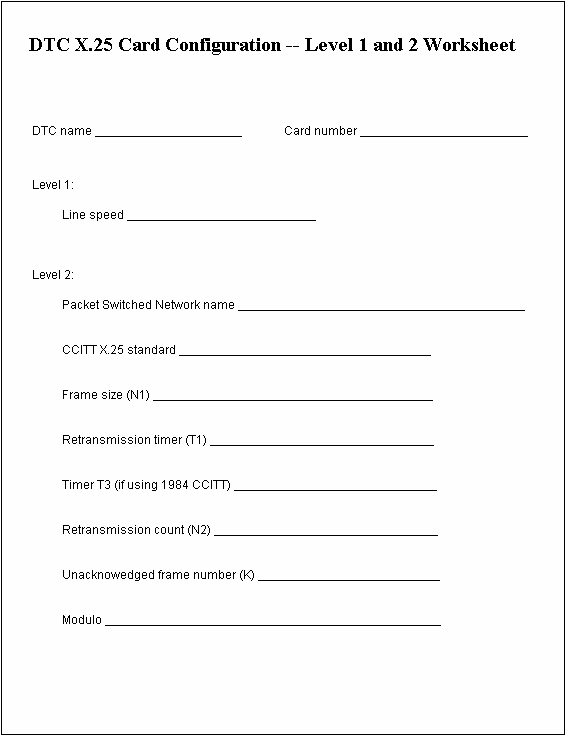

Fill out worksheet as shown in Figure 2-4 "DTC X.25 Level 1 & 2 Worksheet" for each DTC X.25 Network Access card you are configuring.

Figure 2-4 DTC X.25 Level 1 & 2 Worksheet

DTC X.25 Card Configuration - Level 3 & Miscellaneous Worksheet

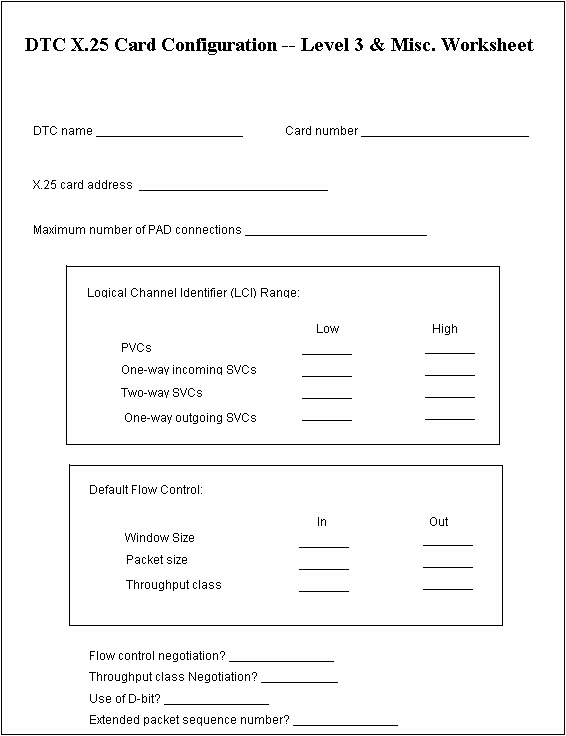

Fill out worksheet as shown in Figure 2-5 "DTC X.25 Card Level 3 and Miscellaneous Worksheet" for each DTC X.25 Network Access card you are configuring.

Figure 2-5 DTC X.25 Card Level 3 and Miscellaneous Worksheet

DTC X.25 Card Configuration — System-to-System Worksheet

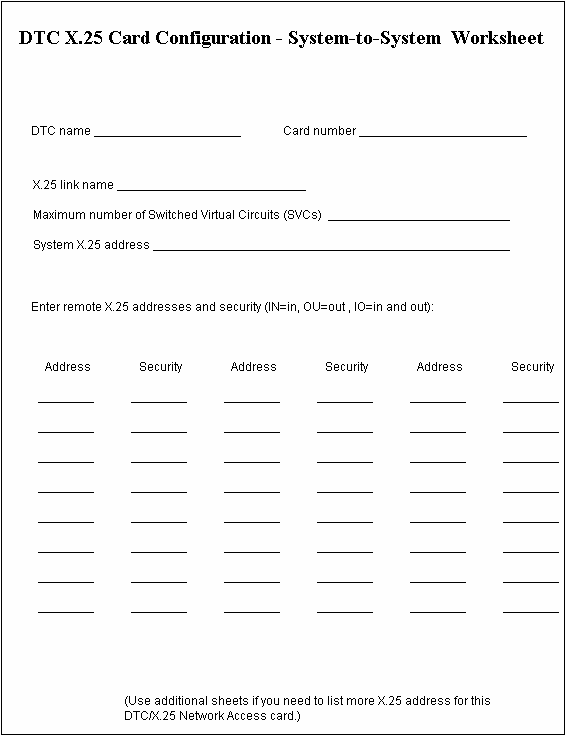

Fill out worksheet as shown in Figure 2-6 "DTC X.25 Card Configuration — System-to-System Worksheet" for each DTC X.25 Network Access card for which you are configuring system-to-system connections.

Figure 2-6 DTC X.25 Card Configuration — System-to-System Worksheet

DTC X.25 Card Configuration - Nailed PAD Worksheet

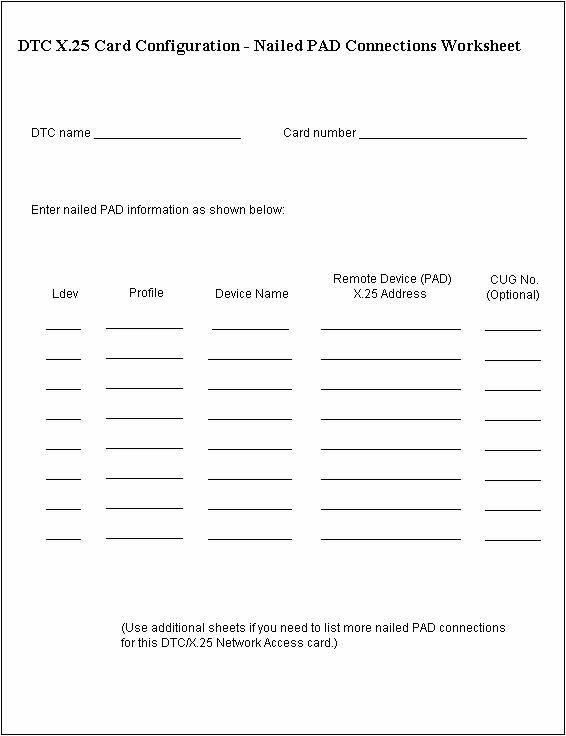

Fill out worksheet as shown in Figure 2-7 "DTC X.25 Card Configuration — Nailed PAD Worksheet" for each DTC X.25 Network Access card for which you are configuring nailed PAD connections.

Figure 2-7 DTC X.25 Card Configuration — Nailed PAD Worksheet

DTC X.25 Card Configuration — PAD Security Worksheet

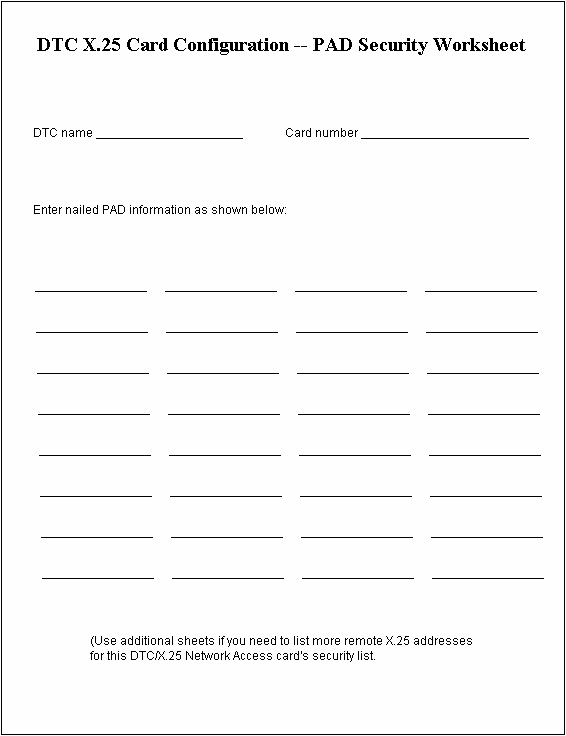

Fill out worksheet as shown in Figure 2-8 "DTC X.25 Card Configuration — PAD Security Worksheet" for each DTC X.25 Network Access card for which you are configuring PAD security.

Figure 2-8 DTC X.25 Card Configuration — PAD Security Worksheet
