Before installing the adapter, you should perform the following
steps:
Observe antistatic precautions.
Verify product contents.
Record adapter identification information.
Gather tools and accessories.
Observe Antistatic Precautions |
 |
This product contains electronic components that can easily
be damaged by small amounts of static electricity. To avoid damage,
follow these guidelines:
Store adapters in their conductive
plastic bags until you are ready to install them.
If possible, work in a static-free area.
Handle adapters only by the edges. Do not touch
electronic components or electrical traces. We strongly recommend
that you use a grounding wrist strap that is connected to the metallic
chassis of the computer. If you do not have a wrist strap, touch
the chassis before handling adapters, and frequently or continuously
thereafter, to equalize any static charge.
Verify Product Contents |
|
Unpack and identify all items supplied with the products:
| | Part Numbers |
|---|
HP-PB 100VG-AnyLAN
Network Adapter
| A3496-60001 |
Installation
and Service Manual
| B5426-90001 |
Record Adapter Information |
|
Record the relevant information from the card here for future
reference. If your adapter requires service in the future this information
will be needed by HP service personnel.
| Information to Record | Card Information | Example |
|---|
| Motherboard Model and Revision number | __________________ | H05000-003, REVB02 |
| Daughter Card Model and Revision number | __________________ | H04522-001, REVC00 |
| Daughter Card Serial number | __________________ | 615385 |
| Daughter Card Station Address | __________________ | 0060B0D52EFC |
This information is provided on stickers affixed to various
locations on the adapter cards. Use Figure 1-1 “Address Location”, for the locations of the relevant information.

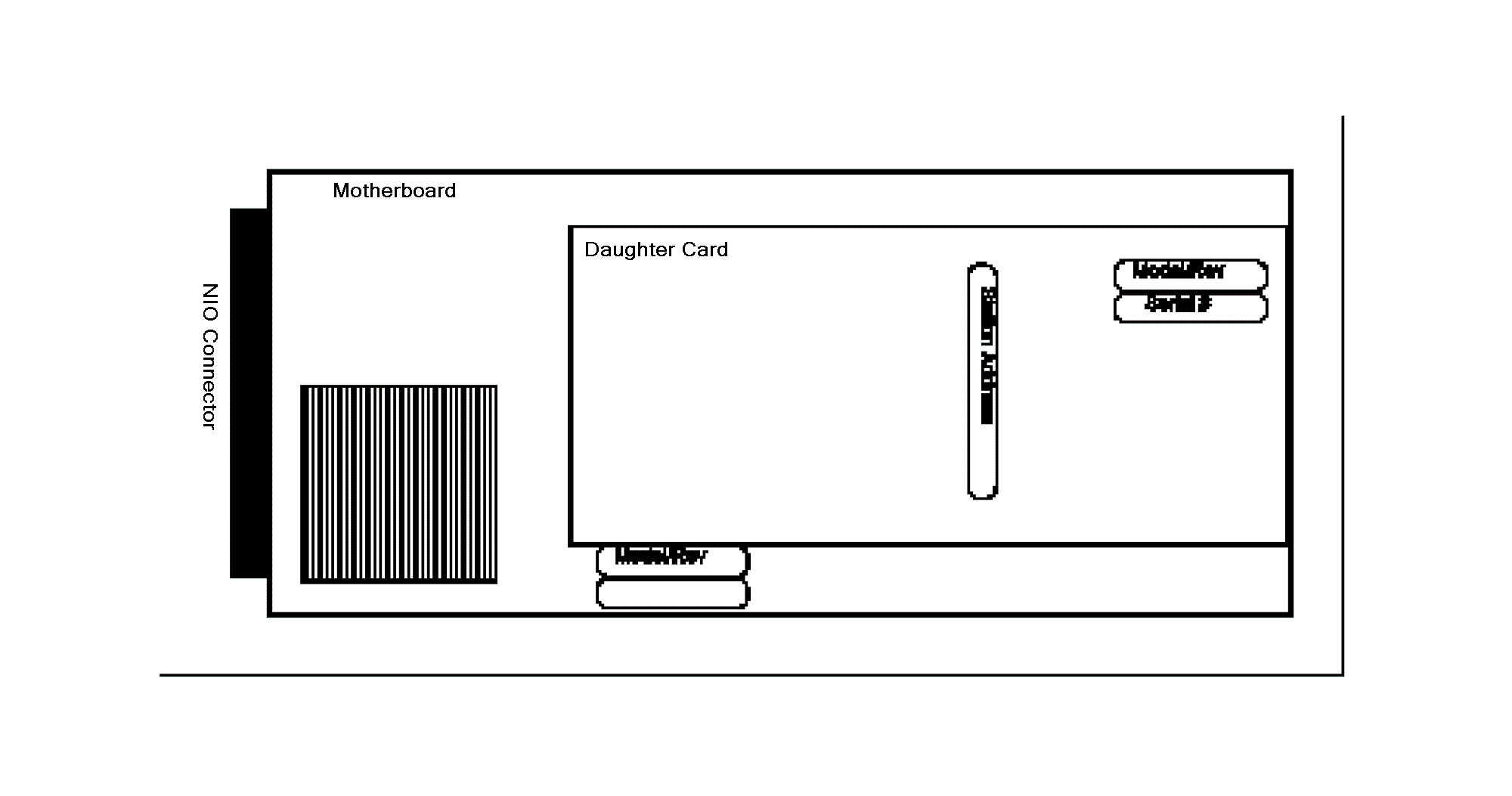

Figure 1-1 Address Location
![[Address Location]](img/gfx2.gif)
