The DTCCNTRL STATUS function displays the current status of each
DTC/X.25 Network Access card installed in a specified DTC. The command
displays the DTC type (16, 48 or 72MX) and the software module that is
currently active on any DTC/X.25 Network Access cards that are installed.
(Asynchronous cards installed in the DTC are not displayed.)
Figure 7-1 "DTCCNTRL Status Display' shows
the display resulting from a DTCCNTRL STATUS command issued
against a DTC 48 containing DTC/X.25 Network Access cards in slots 3, 4, and 5.
Card 3 shows no X.25 network functions active. Card 4 has both X.25
system-to-system and PAD support active. Card 5 has only system-to-system
support active.

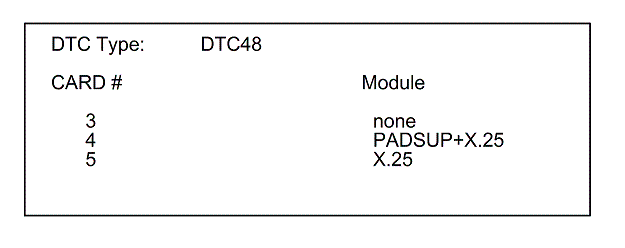

Figure 7-1 DTCCNTRL Status Display
|
![[DTCCNTRL Status Display]](img/gfx34.gif)
