The PAD Printer Profile screen, as shown in Figure 7-9 “PAD Printer Profile Screen (Host-Based)” is used to define the characteristics
associated with a PAD printer profile. This profile screen is used for host-based
management only. For PC-based management, you should use the regular
PC-based Printer Profile screen shown in Figure 7-7 “Printer Profile Screen (PC-Based)” for PAD printers.

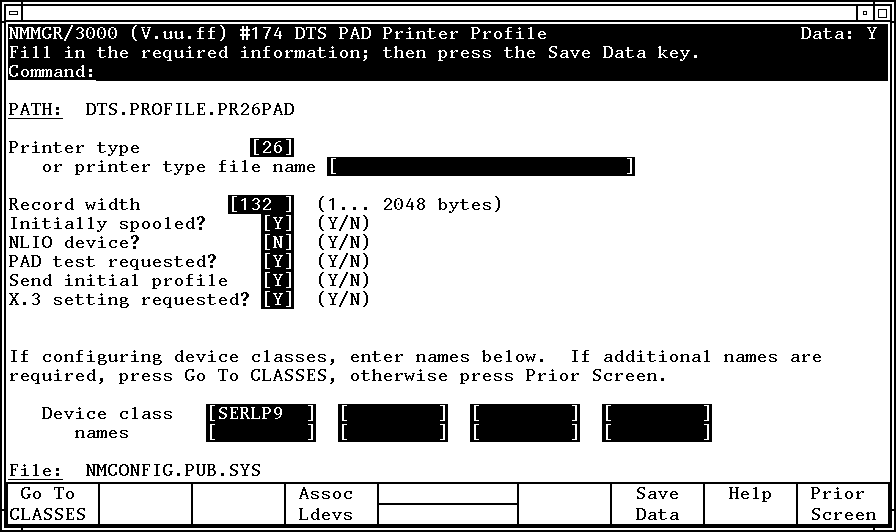

Figure 7-9 PAD Printer Profile Screen (Host-Based)
Review the profile settings on the screen. Use the [Tab]
key to move from field to field. Make changes as needed by typing
over the current values. When you have made the desired changes,
press the [Save Data] key. Refer to the "Fields"
subsection for detailed information about each field on the screen.
Press the [Prior Screen] key to return to
the Profile Selection screen.
Fields
- Printer type
The printer type being associated with the profile.
Use printer type 26 for PAD printer profiles.
- Printer type file name
A printer type file created with the Workstation
Configurator utility (TTUTIL.PUB.SYS,
to be associated with the profile instead of the system-supplied
printer type. Enter the fully qualified file name (filename.group.account).
Refer to the Customizing Terminal and Printer Type Files
with Workstation Configurator for more information on
TTUTIL.PUB.SYS.
- Record width
The number of characters for each record.
For HP terminals, the record width is usually 132 (the width of
the line).
- Initially spooled?
Specifies whether the printer will be initially
spooled.
- NLIO device?
Specifies whether native language devices will be
used.
- PAD test requested?
Specifies whether the DTC will set and read several
X.29 parameters at connection establishment time
to determine the PAD's behavior.
- Send initial profile?
Specifies whether at connection establishment, the
PAD is set to default X.3 printer parameter values.
- X.3 setting requested?
Specifies whether changes to X.3 parameters
may be made after connection establishment.
- Device class names
Device classes provide a means of accessing devices
associated with a profile. Each device class name is up to eight
alphanumeric characters beginning with a letter.
Up to 450 device class names may be used for a printer profile;
the total number of supported, configured device classes defined
in all profiles is 2000. Use the [Go To CLASSES]
key to go to an Additional Device Class Names screen for entering
additional device class names.
 |
 |  |
 |
 | NOTE: If you are changing profile characteristics, you can
see which ldevs and DTCs will be affected by the change by pressing
the [Assoc Ldevs] function key
on the profile screen corresponding to the profile you are changing.
After pressing this key, you will see a list of all ldevs using
this profile in the DTCs configured in DTS. |
 |
 |  |
 |
