Setting Up and Maintaining Your System The Installation Guide

Connecting the SCSI Terminator


NOTE  If your system has an external disk, skip this section, and
      continue the installation procedure with the section titled
      "Identifying and Installing Your HP 2340A DTC."


For systems with no external disk drive, a SCSI terminator (2) (part
number 1252-3932) must be attached to the connector (1) labeled SCSI, on
the computer back panel.  See Figure 2-18 .

Note that the following figure shows two terminators because, depending
upon parts availability, the terminator that you receive may physically
appear different; however, in functionality they are both the same.

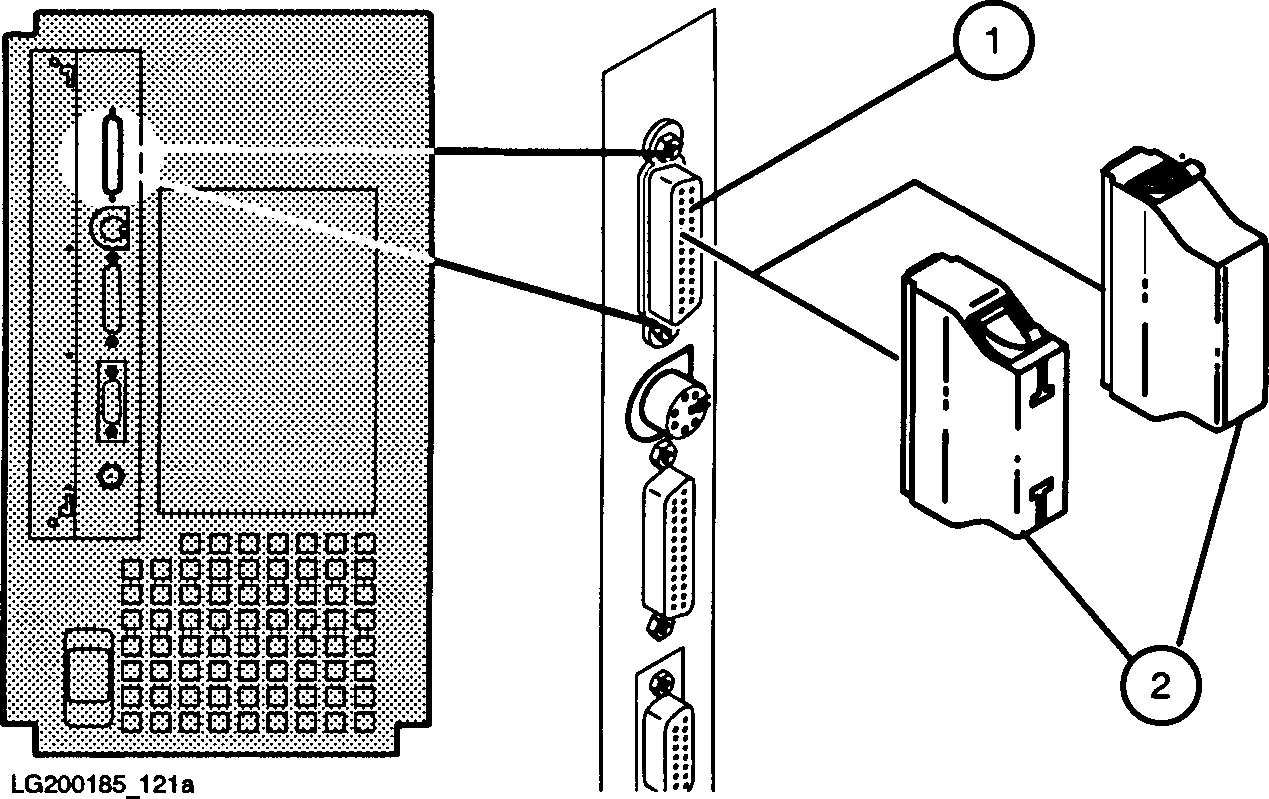

          Figure 2-18.  SCSI Terminator Connection
