Chapter 4 Customization
Introduction
HP Predictive Support has a menu-driven interactive user interface,
psconfig, which allows you to modify the default values or enter other
configuration changes for:
* Transfer information, such as number of transfer attempts and wait
period between attempts
* Customer information
* Peripheral device coverage
* Memory board coverage
* Automatic scheduler
* Report frequency and output destination
NOTE All configuration activities must be conducted through psconfig.
The psconfig Menu Hierarchy
The psconfig interface consists of several menus in a four-level
hierarchy (Figure 4-1). Access to lower-level menus and configuration
fields is through higher-level menus.
Item Key Command
Each menu item is numbered. You can bypass upper-level menus and go
directly to a lower-level menu or configuration field. Only item numbers
or item keys that follow a direct menu path according to the psconfig
hierarchy are valid; all others are not. For example, from the psconfig
Main Menu, you can type 4, press the space bar, type 1, and then press
Return to display the Configure Customer Information Menu. You can also
type configure, press the space bar, type customer, and then press
Return.
![[]](../../pic3k/M011844/FFN183c50.gif)

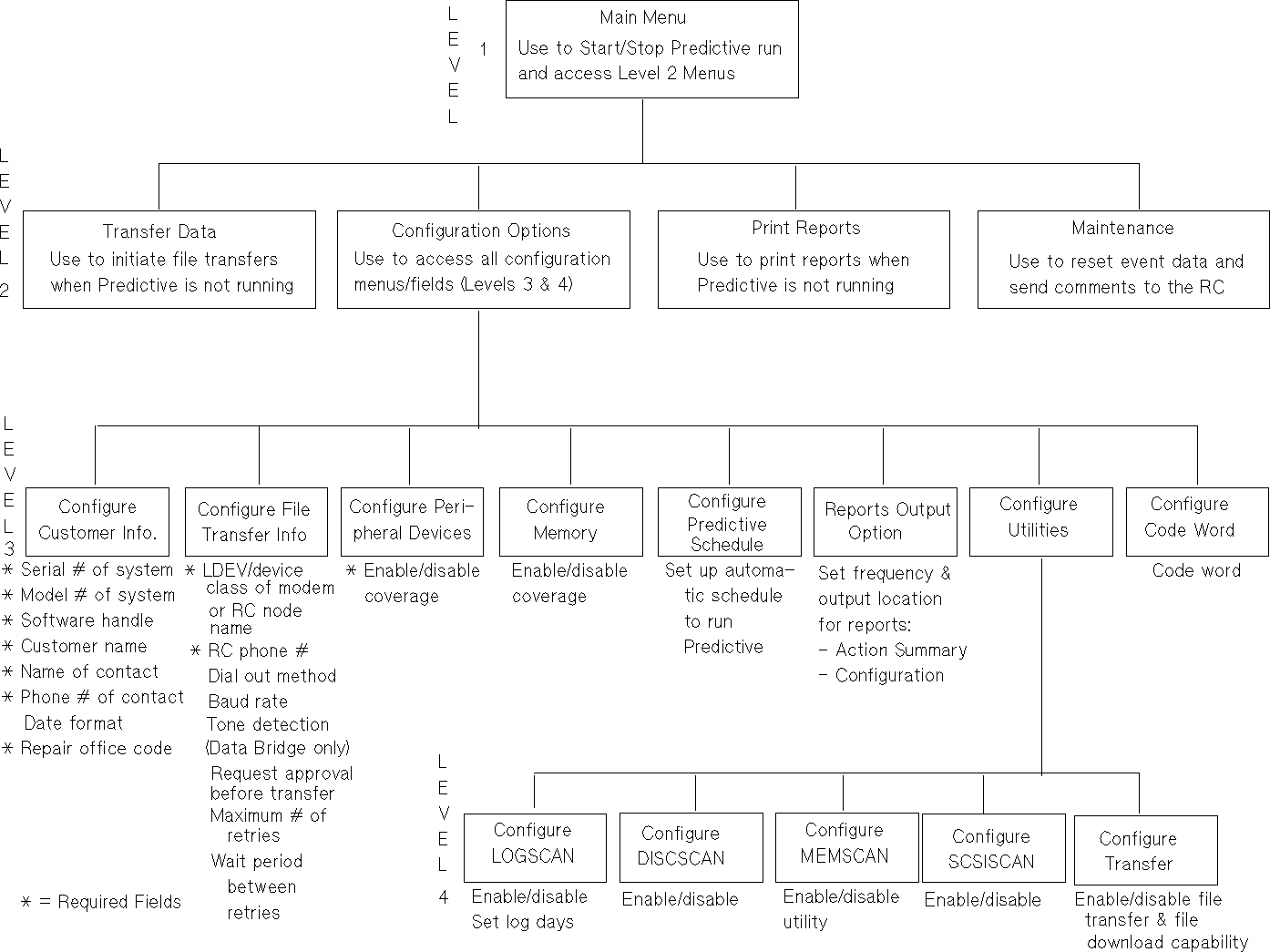

Figure 4-1. psconfig Menu Hierarchy
Running psconfig
You may run psconfig to update or change the current values. These are
predetermined defaults shipped with HP Predictive Support.
To change the configuration options,
1. Type run psconfig.pred.sys at the MPE prompt.
This displays the HP Predictive Support Main Menu (Figure 4-2).
2. From the Main Menu: Type 4 or configuration.
This displays the Configuration Options Menu (Figure 4-3).
__________________________________________________________________________________
| |
| |
| |
| |
| ************************************************************************ |
| |
| M (MainMenu) P (PreviousMenu) R (Refresh) H (Help) E (Exit) |
| |
| |
| Main Menu |
| |
| 1 - RUN Predictive |
| 2 - STOP Predictive |
| 3 - TRANSFER Data Menu |
| 4 - CONFIGURATION Options Menu |
| 5 - PRINT Reports Menu |
| 6 - MAINTENANCE Menu |
| |
| NOTE: Predictive Support status - [Predictive is not scheduled] |
| |
| |
| Type an item number, an item key, or a command: |
| |
__________________________________________________________________________________
Figure 4-2. HP Predictive Support Main Menu
________________________________________________________________________________
| |
| |
| |
| |
| *********************************************************************** |
| |
| M (MainMenu) P (PreviousMenu) R (Refresh) H (Help) E (Exit) |
| |
| |
| Configuration Options Menu |
| |
| 1 - CUSTOMER Information |
| 2 - TRANSFER Information |
| 3 - PERIPHERAL Devices |
| 4 - MEMORY |
| 5 - SCHEDULE |
| 6 - REPORTS |
| 7 - UTILITIES |
| 8 - CODE Word |
| |
| |
| Type an item number, an item key, or a command: |
| |
________________________________________________________________________________
Figure 4-3. Configuration Options Menu
