NS3000/iX NMMGR Screens Reference Manual

Protocol Configuration

The Protocol Configuration screen (#113) in figure 7-4 is displayed when
you press the [Go To Protocol] function key at the X.25 Network Interface
Configuration screen (figure 7-3).  This screen is also displayed when
you type the path name:

@NETXPORT.NI.NIname.PROTOCOL

in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

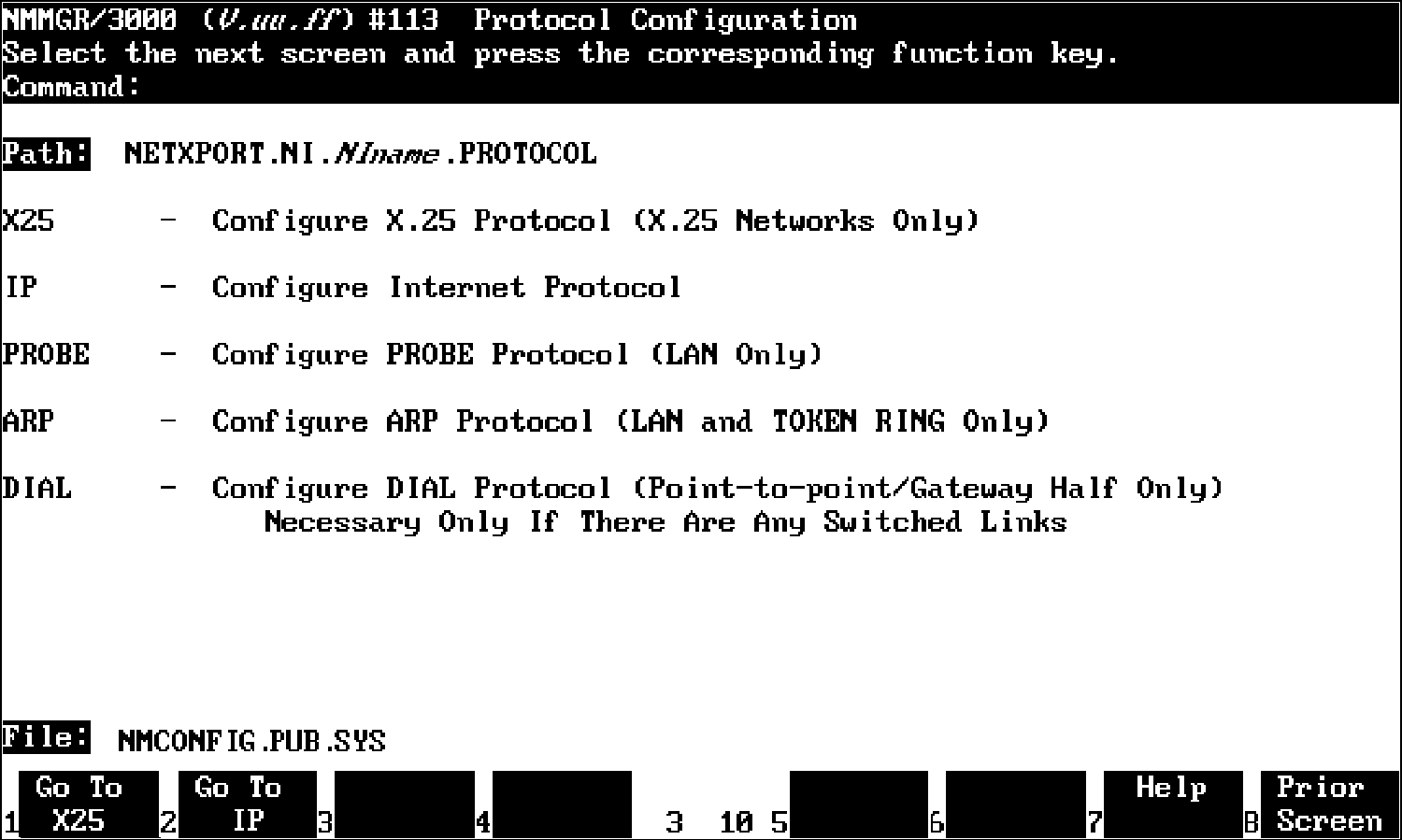

          Figure 7-4.  Protocol Configuration

For the X.25 NI, you configure the X.25 and IP protocols.  Choose the
protocol to configure and press the corresponding function key.

MPE/iX 5.0 Documentation
