X.25 Network Interface Configuration

The X.25 Network Interface Configuration screen (#102) in figure 7-3 is
displayed when you add an X.25 interface to the Network Interface
Configuration screen (figure 7-2) and press the [Add] or [Modify]
function key.  It is also displayed when you type the path name:

@NETXPORT.NI.NIname

in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

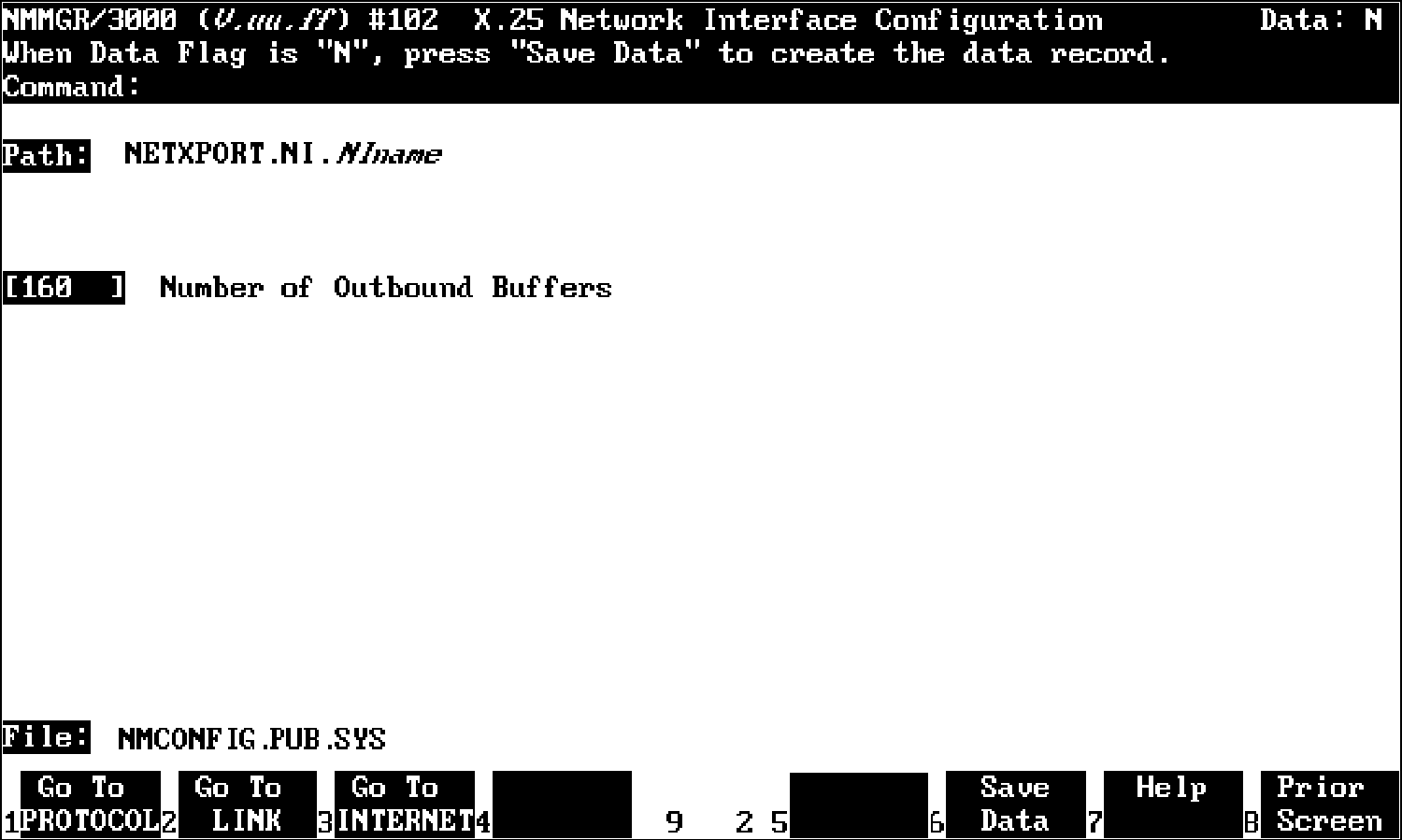

          Figure 7-3.  X.25 Network Interface Configuration

Use the fields and the function keys of the select screen to perform the
desired action.  Press the [Save Data] function key to transfer the data
displayed on the screen to the configuration file you are creating or
updating.  Verify that the data record has been created by checking that
the Data flag is set to Y.

Fields

Number of outbound        (Required.)  Enter the number of buffers that
buffers                   are allocated to the X.25 network interface.

                          If direct level 3 access is being used, or
                          large (over 5000 bytes) blocks of data are
                          being sent, or multiple no-wait sends are being
                          issued, then more buffers may be needed.
                          Logging location code 174, CLAS0003, tells you
                          that the X.25 subsystem does not have enough
                          buffers, in which case you can increase the
                          number of outbound buffers.  (If the outbound
                          buffers are exhausted, the transport will
                          continue to function, but at a significantly
                          reduced efficiency.)

                          Default value:  160

                          Range :  32-1060
