NS3000/iX NMMGR Screens Reference Manual

Unguided Configuration

If you press the [Unguided Configuration] function key from NS
Configuration screen (#166), the Unguided Configuration screen (#80)
shown in figure 2-6 appears.

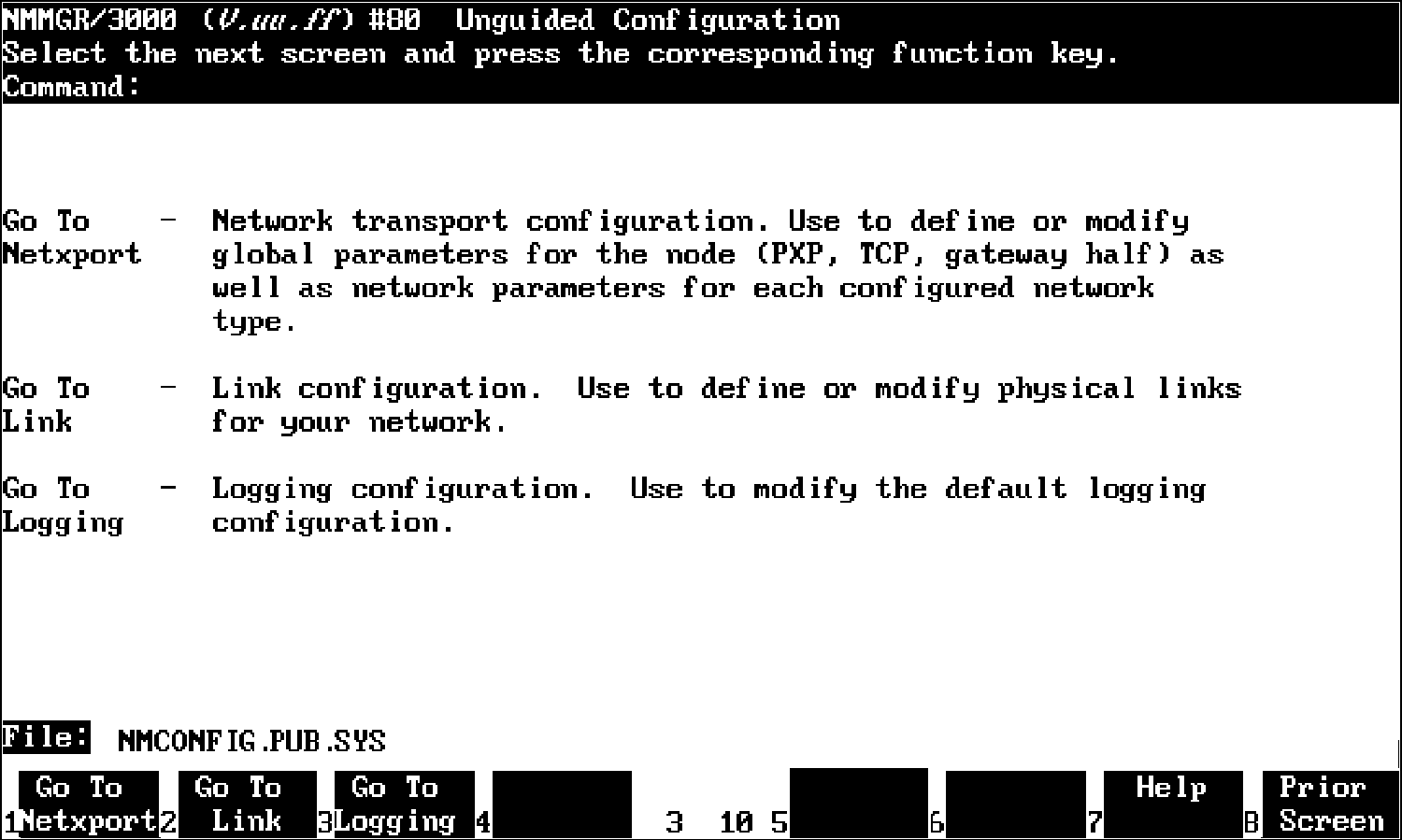

          Figure 2-6.  Unguided Configuration

To configure or update a link, press the [Go To LINK] function key and
refer to chapter 3 in this manual.

To configure or update screens that are common to all network interfaces,
press the [Go To NETXPORT] function key and refer to chapter 4 in this
manual.

To configure or update logging, press the [Go To LOGGING] function key
and refer to chapter 12 in this manual.
