NS3000/iX NMMGR Screens Reference Manual

Network Transport Configuration

If you press the [Guided Config] function key from the NS Configuration
screen, the Network Transport Configuration screen (#42) shown in figure
2-5 appears.  This is the first guided configuration screen.  For
information specific to the guided configuration screens (including the
screen shown here), refer to the HP 3000/iX Network Planning and
Configuration Guide.

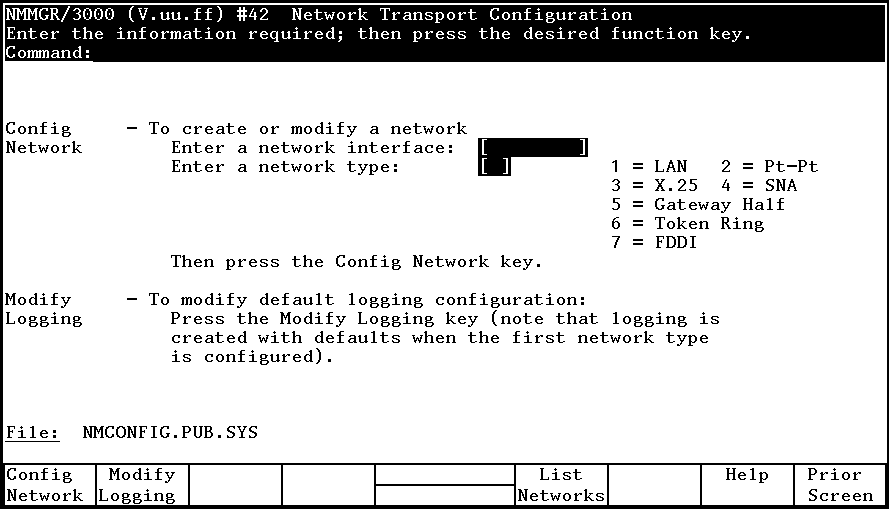

          Figure 2-5.  Network Transport Configuration

Guided configuration is an NMMGR procedure that automates configuration.
It assumes and supplies default values wherever possible to furnish most
of the configuration file's data.

When you run guided configuration, you visit only a minimal number of
configuration screens.  A number of these screens are different from
those you would see during unguided configuration.


NOTE  HP strongly recommends that you use guided configuration to
      configure each node initially.  You can also take advantage of its
      convenience later for most network maintenance and updating.  Use
      manual configuration only if guided configuration does not provide
      access to the configuration data you need to change.
