NS3000/iX NMMGR Screens Reference Manual

Chapter 3  Link Configuration Screens

Link configuration screens are used to define a link from the HP 3000 to
a network.The first screen, Link Selection, allows you to define a link
of type LAN, LAP-B (point-to-point), X.25, TOKEN, or FDDI. A screen is
then displayed that allows you to configure operating parameters for the
link type that you select.

The links defined and configured in these screens must match the links
defined later when configuring the network interface (path name
NETXPORT.NI.NIname.LINK) in chapters 5, 6, 7, 8, and 9.

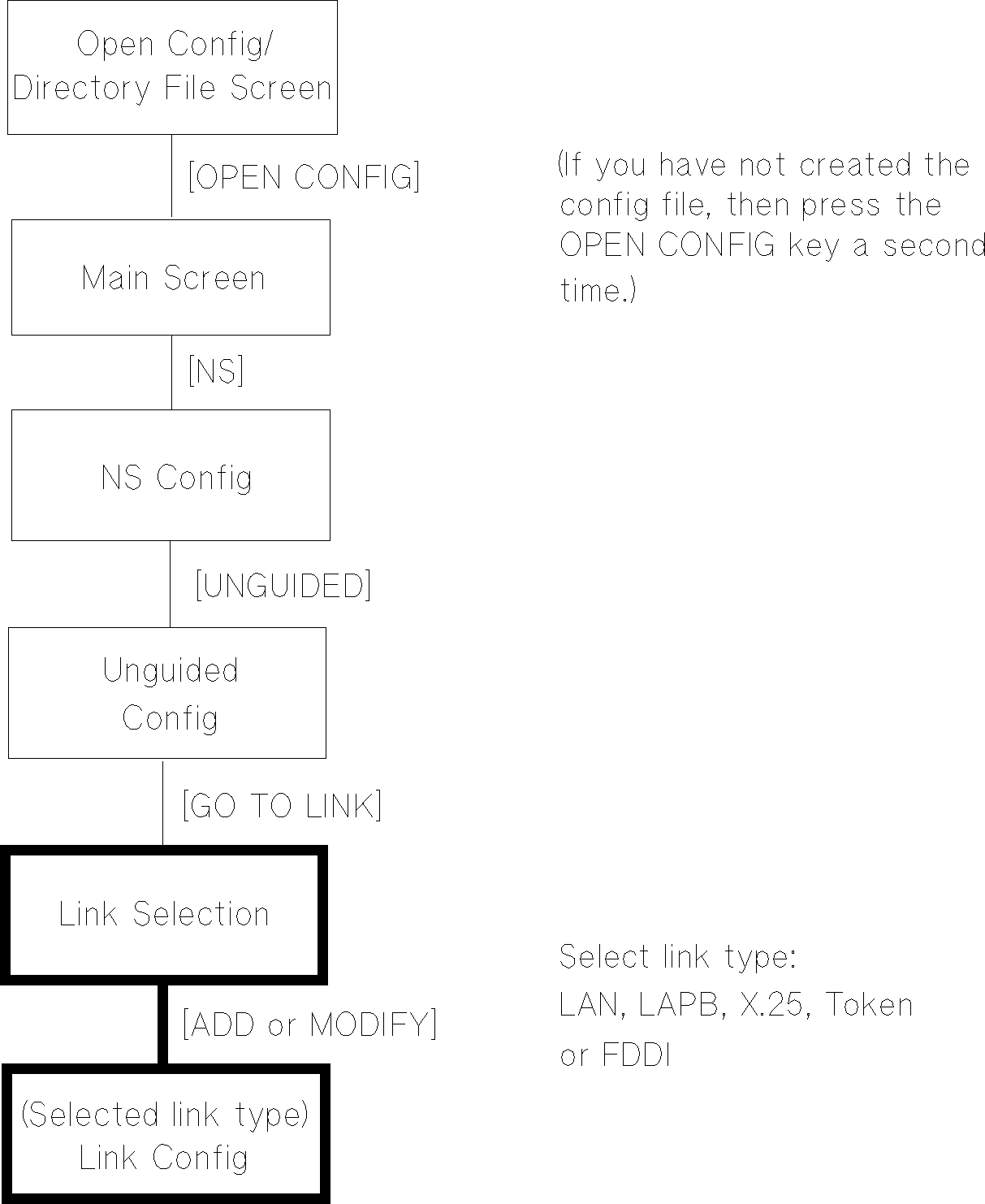

Figure 3-1 shows the screen flow of the link selection screens.  Screens
unique to the link selection are indicated by bold boxed screens.
[FUNCTION] denotes the function key used at a screen to invoke the next
screen on the screen flow.


          Figure 3-1.  Link Selection Screen Flow
