HP ALLBASE/4GL Developer Reference Manual Vol. 2

Catalog Deletions Screen

This screen allows you to delete components within an application.

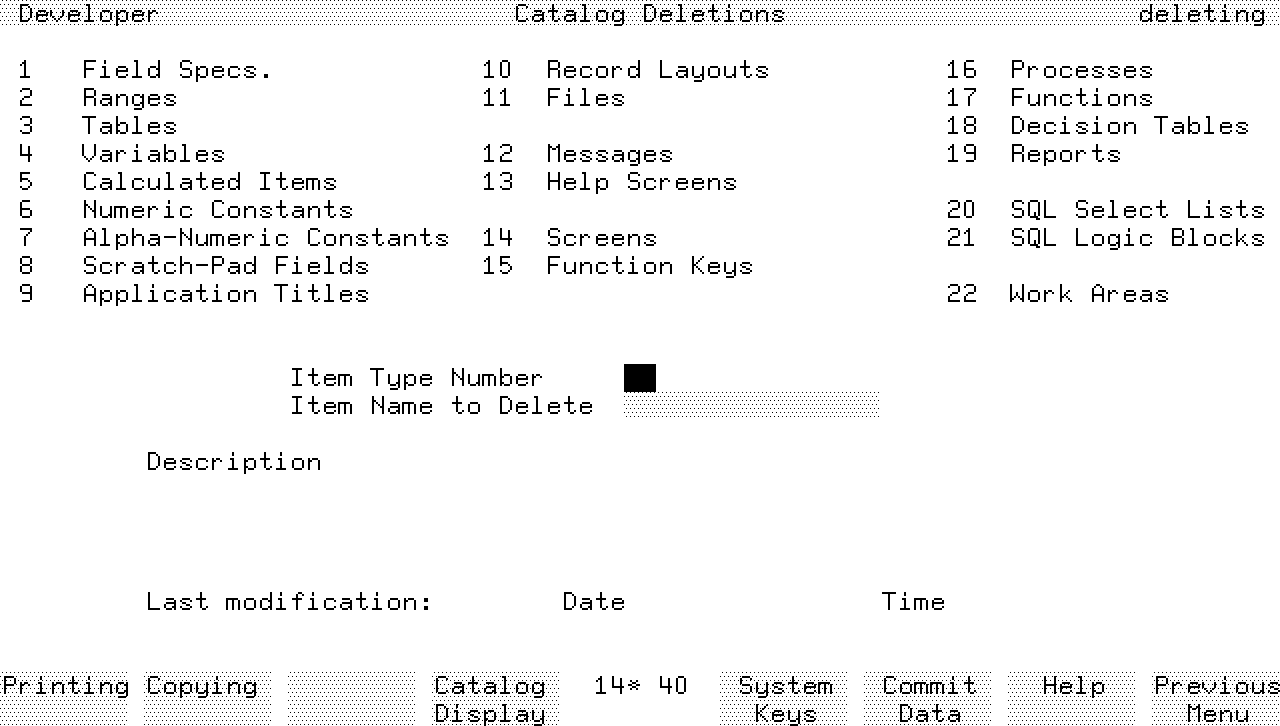

Screen Image




Field Descriptions

Item Type Number.  Enter the number that corresponds to the item type to
be deleted.

Item Name to Delete.  Enter the name of the item to be deleted.

Description.  Display-only field showing the details from the description
fields of the item to be deleted.

Function Keys

f1       Printing  Cancels the current screen and displays the catalog
        printing screen.

f2       Copying  Cancels the current screen and displays the catalog
        copying screen.

f4       Catalog Display  Cancels the current screen and displays the
        catalog display screen.

Additional Information

HP HP ALLBASE/4GL does not delete the item until you press the  Commit
Data  function key.

In some cases, HP HP ALLBASE/4GL cannot recover space in its internal
name lists after you delete an item.  To recover the name list space, you
must generate the entire application by selecting the All option on the
generates menu.  This menu is accessible from the developer main menu.
