HP ALLBASE/4GL Developer Reference Manual Vol. 2

Catalog Copying Screen

This screen allows you to copy components within an application or
version, and to copy components from other applications or versions.

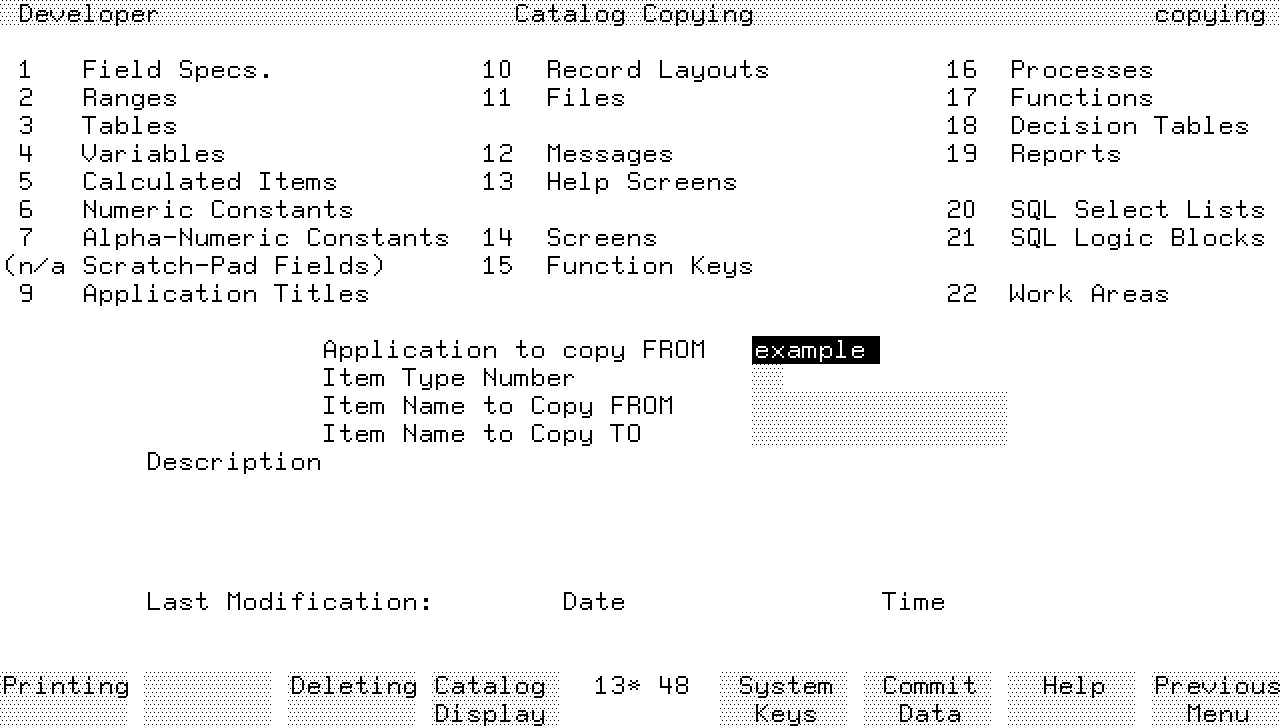

Screen Image




Field Descriptions

Application to copy FROM. Enter the name of the application or version
that you want to copy the item from.

Item Type Number.  Enter the number of the type of item you want to copy.

Item Name to Copy FROM. Enter the name of the item you want to copy.

Item Name to Copy TO. Enter the name of the item to be created.  This
name must not already exist for the type of item being copied.  In
particular, if you copy a screen, the new name must not be defined on the
screen header screen.  The copy facility copies the screen header as well
as the screen image.

Description.  Display-only field showing the details from the description
fields of the item to be copied.

Function Keys

f1       Printing  Cancels the current screen, and displays the catalog
        printing screen.

f3       Deleting  Cancels the current screen, and displays the catalog
        deletions screen.

f4       Catalog Display  Cancels the current screen and displays the
        catalog display screen.

Additional Information

You cannot copy a generated component from another application unless the
source information for the component also exists in the application.

You must generate the new item after the copy has finished.  The copy
process does not generate the new item automatically.  This allows you to
modify the new item before you generate it.

The copy does not occur until you press the  Commit Data  function key.
