HP ALLBASE/4GL Developer Reference Manual Vol. 2

Catalog Display Screen

This screen allows you to display the names of existing application
components on the terminal screen.

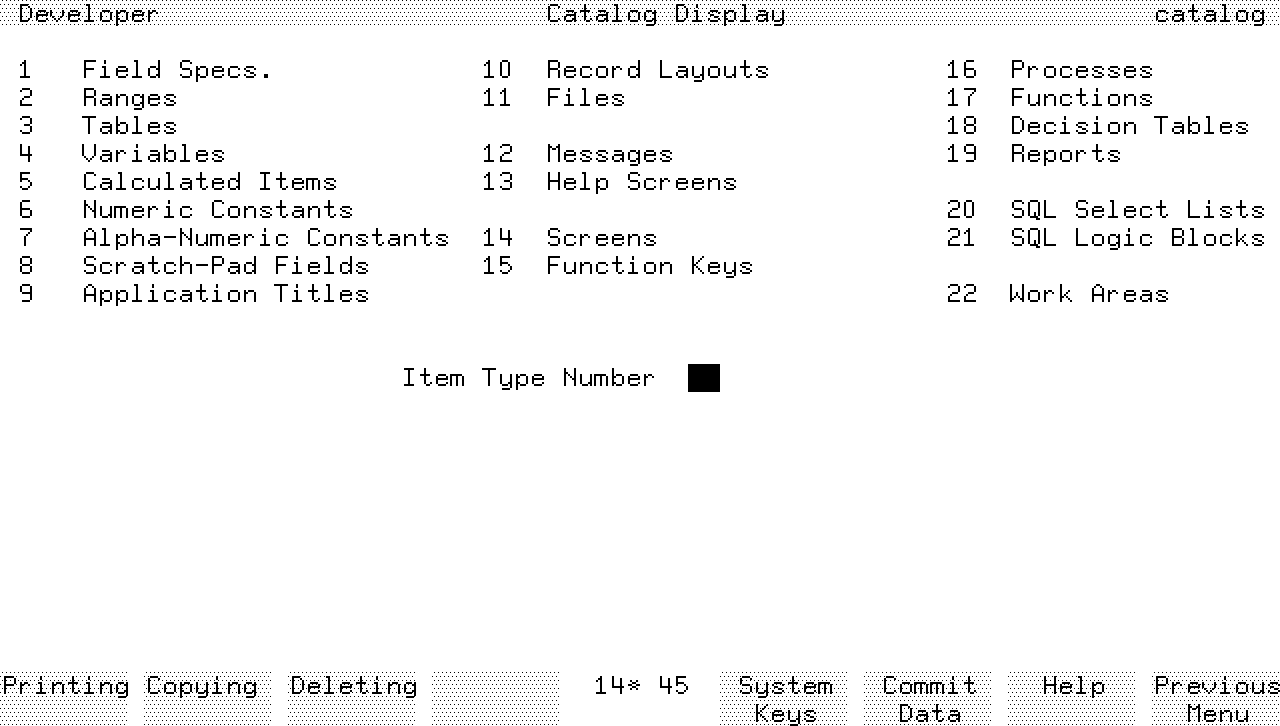

Screen Image




Field Description

Item Type Number.  Enter the number for the item type you want to
display, and then press the  Commit Data  function key.

HP HP ALLBASE/4GL displays the names of the existing components of the
selected type.

If the list of components extends to more than one screen, press Return
to display the next page of the list.

Function Keys

f1       Printing  Cancels the current screen and displays the catalog
        printing screen.

f2       Copying  Cancels the current screen and displays the catalog
        copying screen.

f3       Deleting  Cancels the current screen and displays the catalog
        deletions screen.

Additional Information

HP ALLBASE/SQL Table and Select List Display.

Internally, HP HP ALLBASE/4GL regards SQL tables and select lists as
being files.  When you select the Files/SQL Tables option (option number
11) on this screen, HP HP ALLBASE/4GL displays the names of all files,
SQL tables, and select lists defined for the application.

Select option number 20 (SQL Select Lists) to obtain a list of select
list names only.
