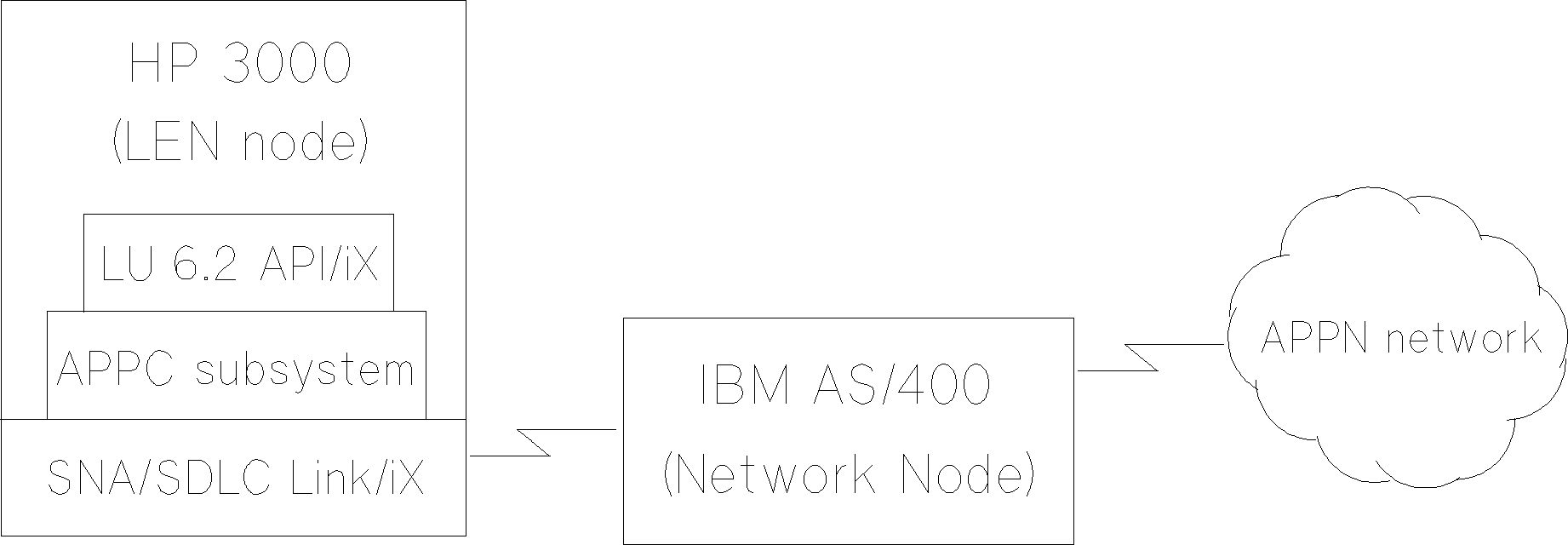

LU 6.2 API/iX Configuration Example This section contains a tested configuration for an AS/400 that acts as a Network Node and performs routing services for an HP 3000 configured as a LEN node. The AS/400 and the HP 3000 use LU 6.2 API/iX to communicate over an APPN network. Figure F-6 illustrates the configuration described in this section.Figure F-6. LU 6.2 API/iX Example Network Display Network Attributes Current system name. . . . . . . . . . . . . . : ASLAN Pending system name. . . . . . . . . . . . . : Local network ID . . . . . . . . . . . . . . . : APPN Local control point name . . . . . . . . . . . : ASLAN Default local location . . . . . . . . . . . . : ASLAN Default mode . . . . . . . . . . . . . . . . . : BLANK Maximum number of conversations for a remote location. . . . . . . . . . . . . . . . . . : 512 APPN node type . . . . . . . . . . . . . . . . : *NETNODE Maximum number of intermediate sessions. . . . : 200 Route addition resistance. . . . . . . . . . . : 128 Server network ID/control point name . . . . . : *LCLNETID *ANY Alert status . . . . . . . . . . . . . . . . . : *OFF Alert primary focal point. . . . . . . . . . . : *NO Alert default focal point. . . . . . . . . . . : *NO Alert logging status . . . . . . . . . . . . . : *NONE Alert controller description . . . . . . . . . : *NONE Message queue. . . . . . . . . . . . . . . . . : QSYSOPR Library. . . . . . . . . . . . . . . . . . . : QSYS Output queue . . . . . . . . . . . . . . . . . : QPRINT Library. . . . . . . . . . . . . . . . . . . : QGPL Job action . . . . . . . . . . . . . . . . . . : *FILE Maximum hop count. . . . . . . . . . . . . . . : 16 DDM request access . . . . . . . . . . . . . . : *OBJAUT PC Support request access. . . . . . . . . . . : *OBJAUT Display Mode Description Mode description name. . . . . . . . . . . . . : MODD DW Class-of-service . . . . . . . . . . . . . . . : COS #CONNECT Maximum number of sessions . . . . . . . . . . : MAXSSN 255 Maximum conversations. . . . . . . . . . . . . : MAXCNV 256 Locally controlled sessions. . . . . . . . . . : LCLCTLSSN 0 Pre-established sessions . . . . . . . . . . . : PREESTSSN 0 Inbound pacing value . . . . . . . . . . . . . : INPACING 7 Outbound pacing value. . . . . . . . . . . . . : OUTPACING 7 Max length of request unit . . . . . . . . . . : MAXLENRU 256 Text . . . . . . . . . . . . . . . . . . . . . : TEXT `LU6.2 mode description Define APPN Remote Locations page 1 Remote Remote Local Control Control Location Network Location Point Point Location Secure Name ID Name Name Net ID Password Loc APPC001 APPN AS40001 HPAPPC APPN *NO APPC002 APPN AS40002 HPAPPC APPN *NO APPC003 APPN AS40003 HPAPPC APPN *NO Define APPN Remote Locations page 2 Remote Remote Local Location Network Location Single Local Preest Entry Name ID Name Session Control Ssn Description APPC001 APPN AS40001 *YES *NO *NO APPC002 APPN AS40002 *NO *NO *NO APPC003 APPN AS40003 *NO *NO *NO Define APPN Local Locations Local Local Location Entry Location Entry Name Description Name Description AS40001 AS40002 AS40003 Display Line Description - SDLC Line description . . . . . . . . . .: LIND HP21L02 Resource names . . . . . . . . . . .: RSRCNAME LIN012 Online at IPL. . . . . . . . . . . .: ONLINE *NO Data link role . . . . . . . . . . .: ROLE *PRI Physical interface . . . . . . . . .: INTERFACE *RS232V24 Connection type. . . . . . . . . . .: CNN *NONSWTPP Switched network backup. . . . . . .: SNBU *NO Activate swt network backup. . . . .: ACTSNBU SHM node type. . . . . . . . . . . .: SHMNODE Vary on wait . . . . . . . . . . . .: VRYWAIT Autocall unit. . . . . . . . . . . .: AUTOCALL Attached nonswitched ctl . . . . . .: CTL HP21C01 Exchange identifier. . . . . . . . .: EXCHID 05600000 NRZI data encoding . . . . . . . . .: NRZI *NO Maximum controllers. . . . . . . . .: MAXCTL 1 Clocking . . . . . . . . . . . . . .: CLOCK *MODEM Line speed . . . . . . . . . . . . .: LINESPEED 9600 Modem type supported . . . . . . . .: MODEM *NORMAL Modem data rate select . . . . . . .: MODEMRATE *FULL Maximum frame size . . . . . . . . .: MAXFRAME 265 Duplex . . . . . . . . . . . . . . .: DUPLEX *FULL Inactivity timer . . . . . . . . . .: INACTTMR 300 Poll response delay. . . . . . . . .: POLLRSPDLY 0 Nonproductive receive timer. . . . .: NPRDRCVTMR 320 Idle timer . . . . . . . . . . . . .: IDLTMR 30 Connect poll timer . . . . . . . . .: CNNPOLLTMR 300 Poll cycle pause . . . . . . . . . .: POLLPAUSE 0 Frame retry. . . . . . . . . . . . .: FRAMERTY 7 Text . . . . . . . . . . . . . . . .: TEXT APPC Line 2 Display Controller Description - APPC Controller description . . . . . . . : CTLD HP21C01 Link type. . . . . . . . . . . . . . : LINKTYPE *SDLC Online at IPL. . . . . . . . . . . . : ONLINE *YES Switched line. . . . . . . . . . . . : SWITCHED *NO Short hold mode. . . . . . . . . . . : SHM Switched network backup. . . . . . . : SNBU *NO Activate swt network backup. . . . . : ACTSNBU APPN-capable . . . . . . . . . . . . : APPN *YES Attached nonswitched line. . . . . . : LINE HP21L02 Switched line list . . . . . . . . . : SWTLINLST Attached devices . . . . . . . . . . : DEV HP21D01 HP21D02 Character code . . . . . . . . . . . : CODE *EBCDIC Maximum frame size . . . . . . . . . : MAXFRAME 265 Remote network identifier. . . . . . : RMTNETID *NETATTR Remote control point name. . . . . . : RMTCPNAME HPAPPC Exchange identifier. . . . . . . . . : EXCHID 05600000 Initial connection . . . . . . . . . : INLCNN Connection number. . . . . . . . . . : CNNNBR Predial delay. . . . . . . . . . . . : PREDIALDLY Redial delay . . . . . . . . . . . . : REDIALDLY Dial retry . . . . . . . . . . . . . : DIALRTY Remote autoanswer. . . . . . . . . . : RMTAUTOANS Switched disconnect. . . . . . . . . : SWTDSC Disconnect timer . . . . . . . . . . : DSCTMR Data link role . . . . . . . . . . . : ROLE *SEC SHM disconnect limit . . . . . . . . : SHMDSCLMT SHM disconnect timer . . . . . . . . : SHMDSCTMR Station address. . . . . . . . . . . : STNADR C1 SDLC poll priority . . . . . . . . . : POLLPTY *NO SDLC poll limit. . . . . . . . . . . : POLLLMT 0 SDLC connect poll retry. . . . . . . : CNNPOLLRTY *NOMAX SDLC NRM poll timer. . . . . . . . . : NRMPOLLTMR 3 SDLC NDM poll timer. . . . . . . . . : NDMPOLLTMR *CALC APPN CP session support. . . . . . . : CPSSN *NO APPN node type . . . . . . . . . . . : NODETYPE *LENNODE APPN transmission grp number . . . . : TMSGRPNBR 1 Recovery limits. . . . . . . . . . . : CMNRCYLMT Count limit. . . . . . . . . . . . : 2 Time interval. . . . . . . . . . . : 5 Text . . . . . . . . . . . . . . . . : TEXT HP3000 LEN node description Display Device Description - APPC Device description . . . . . . . . . : DEVD HP21D01 Remote location name . . . . . . . . : RMTLOCNAME APPC001 Online at IPL. . . . . . . . . . . . : ONLINE *YES Attached controller. . . . . . . . . : CTL HP21C01 Local location name. . . . . . . . . : LCLLOCNAME AS40001 Remote network identifier. . . . . . : RMTNETID *NETATR Mode . . . . . . . . . . . . . . . . : MODE DW Message queue. . . . . . . . . . . . : MSGQ QSYSOPR Library. . . . . . . . . . . . . . : *LIBL APPN-capable . . . . . . . . . . . . : APPN *YES Single session . . . . . . . . . . . : SNGSSN *YES Locally controlled session . . . . . : LCLCTLSSN *NO Pre-established session. . . . . . . : PREESTSSN Secure location. . . . . . . . . . . : SECURELOC *NO Local location address . . . . . . . : LOCADR 00 Text . . . . . . . . . . . . . . . . : TEXT Single-session device Display Device Description - APPC Device description . . . . . . . . . : DEVD HP21D02 Remote location name . . . . . . . . : RMTLOCNAME APPC002 Online at IPL. . . . . . . . . . . . : ONLINE *YES Attached controller. . . . . . . . . : CTL HP21C01 Local location name. . . . . . . . . : LCLLOCNAME AS40002 Remote network identifier. . . . . . : RMTNETID APPN Mode . . . . . . . . . . . . . . . . : MODE DW Message queue. . . . . . . . . . . . : MSGQ QSYSOPR Library. . . . . . . . . . . . . . : *LIBL APPN-capable . . . . . . . . . . . . : APPN *YES Single session . . . . . . . . . . . : SNGSSN *NO Locally controlled session . . . . . : LCLCTLSSN Pre-established session. . . . . . . : PREESTSSN Secure location. . . . . . . . . . . : SECURELOC *NO Local location address . . . . . . . : LOCADR 00 Text . . . . . . . . . . . . . . . . : TEXT Parallel-session device
![[]](../../pic3k/M014418/FFN263c50.gif)
