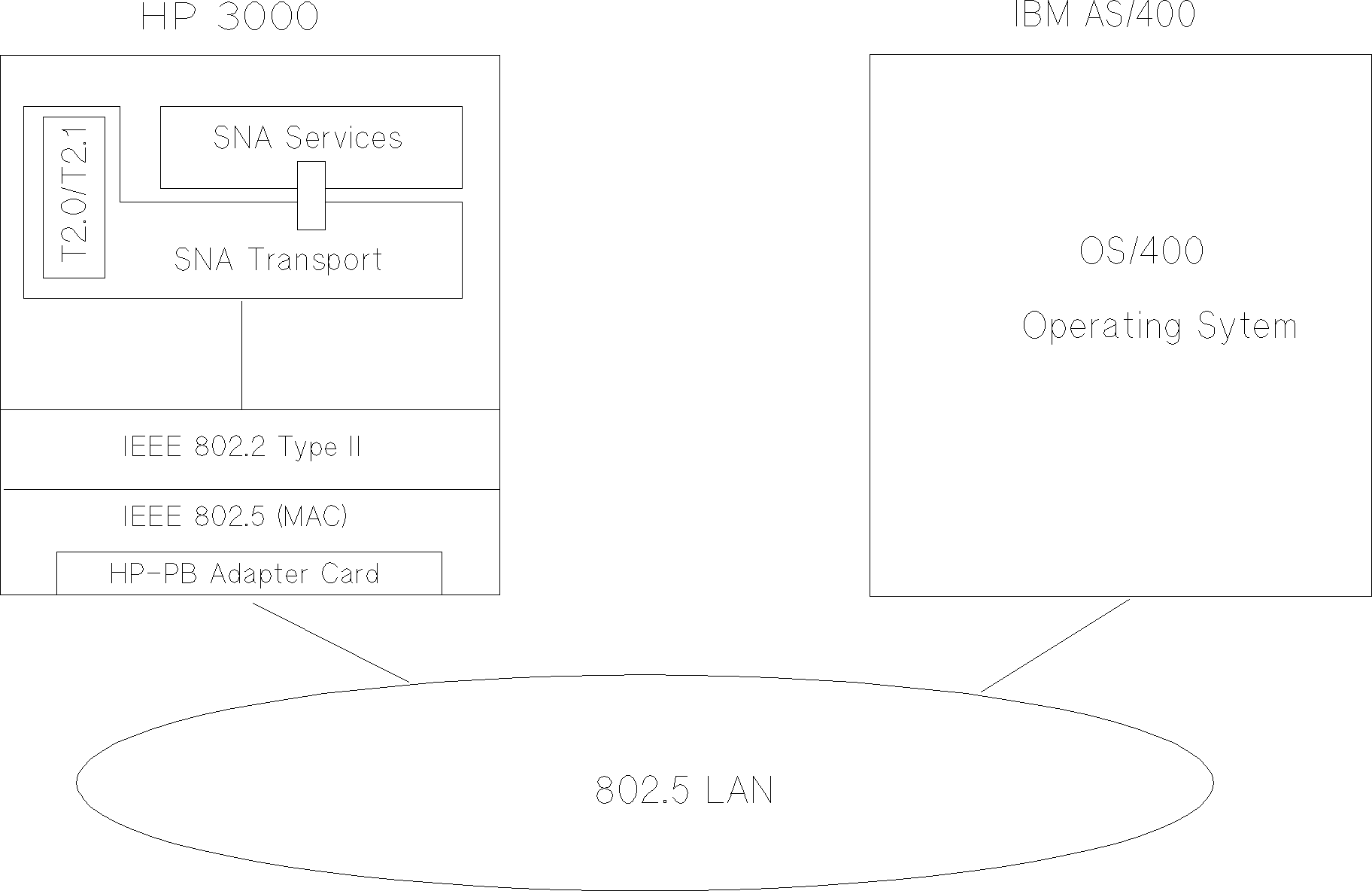

SNA/Token Ring/iX Configuration Example This section contains a tested AS/400 configuration for communicating with an HP 3000 over a token ring network. Figure F-7 illustrates the configuration described in this section.Figure F-7. SNA/Token Ring/iX Example Network Display Line Description - Token Ring Line description . . . . . . . . . .: LIND TRLINE Resource name. . . . . . . . . . . .: RSRCNAME LIN012 Online at IPL. . . . . . . . . . . .: ONLINE *YES Vary on wait . . . . . . . . . . . .: VRYWAIT..........*NOWAIT Network Controller . .. . . . . . . : NETCTL Maximum controllers. . . . . . . . .: MAXCTL 10 Maximum frame size . . . . . . . . .: MAXFRAME 1994 TRLAN Manager logging level. . . . .: TRNLOGLVL *MAX Current logging level. . . . . . .: *MAX Local adapter address. . . . . . . .: ADPTADR 10005A040EED Exchange identifier. . . . . . . . .: EXCHID 05631408 Source service access points . . . .: SSAP 04 06 AA 08 0C 10 14 18 1C Error threshold level. . . . . . . .: THRESHOLD *OFF Link speed . . . . . . . . . . . . .: LINKSPEED 4M Cost/connect time. . . . . . . . . .: COSTCNN 0 Cost/byte. . . . . . . . . . . . . .: COSTBYTE 0 Security for line. . . . . . . . . .: SECURITY *NONSECURE Propagation delay. . . . . . . . . .: PRPDLY *LAN User-defined 1 . . . . . . . . . . .: USRDFN1 128 User-defined 2 . . . . . . . . . . .: USRDFN2 128 User-defined 3 . . . . . . . . . . .: USRDFN3 128 Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: 2 Time interval. . . . . . . . . . .: 5 Text . . . . . . . . . . . . . . . .: TEXT Token Ring Network Display Controller Description - APPC Controller description . . . . . . .: CTLD CTLIRMA Controller type. . . . . . . . . . .: TYPE 3174 Controller model . . . . . . . . . .: MODEL 0 Link type. . . . . . . . . . . . . .: LINKTYPE *TRLAN Online at IPL. . . . . . . . . . . .: ONLINE *YES Switched line. . . . . . . . . . . .: SWITCHED Short hold mode. . . . . . . . . . .: SHM Switched Network backup. . . . . . .: SNBU Activate swt network backup. . . . .: ACTSNBU Attached nonswitched line. . . . . .: LINE Switched line list . . . . . . . . .: SWTLINST TRNLINE Attached devices . . . . . . . . . .: DEV HPLU01 HPLU02 Character code . . . . . . . . . . .: CODE *EBCDIC Device wait timer. . . . . . . . . .: DEVWAITTMR 120 Maximum frame size . . . . . . . . .: MAXFRAME 1994 Exchange identifier. . . . . . . . .: EXCHID Remote control point name. . . . . .: RMTCPNAME IXCP SSCP identifier. . . . . . . . . . .: SSCPID 050000000000 Initial connection . . . . . . . . .: INLCNN *DIAL Connection number. . . . . . . . . .: CNNNBR Predial delay. . . . . . . . . . . .: PREDIALDLY Redial delay . . . . . . . . . . . .: REDIALDLY Dial retry . . . . . . . . . . . . .: DIALRTY Remote autoanswer. . . . . . . . . .: RMTAUTOANS SHM disconnect limit . . . . . . . .: SHMDSCLMT SHM disconnect timer . . . . . . . .: SHMDSCTMR TRNLAN remote adapter address. . . .: ADPTADR 10005A0011AB TRLAN DSAP . . . . . . . . . . . . .: DSAP 04 TRLAN SSAP . . . . . . . . . . . . .: SSAP 0C TRLAN frame retry. . . . . . . . . .: TRNFRMRTY 10 TRLAN connect retry. . . . . . . . .: TRNCNNRTY 10 TRLAN response timer . . . . . . . .: TRNRSPTMR 10 TRLAN connection timer . . . . . . .: TRNCNNTMR 70 TRLAN acknowledgement timer. . . . .: TRNACKTMR 1 TRLAN inactivity timer . . . . . . .: TRNINACTMR 100 TRLAN ack frequency. . . . . . . . .: TRNACKFRQ 1 TRLAN max outstanding frames . . . .: TRNMAXOUT 2 TRLAN access priority. . . . . . . .: TRNACCPTY 0 Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: *SYSVAL Time interval. . . . . . . . . . .: Text . . . . . . . . . . . . . . . .: TEXT 3270 connection to irma Display Device Description - Display Device description . . . . . . . . .: DEVD HPLU01 Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 02 Online at IPL. . . . . . . . . . . .: ONLINE *YES Attached controller. . . . . . . . .: CTL CTLIRM Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *YES Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: TEXT Display Device Description - Display Device description . . . . . . . . .: DEVD HPLU02 Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 01 Online at IPL. . . . . . . . . . . .: ONLINE *YES Attached controller. . . . . . . . .: CTL CTLIRMA Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *YES Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: TEXT
![[]](../../pic3k/M014418/FFN273c50.gif)
