HP SNADS/iX Configuration Example

This section contains a tested configuration for an AS/400 that acts as a
Network Node and performs routing services for an HP 3000 configured as a
LEN node.  The AS/400 and the HP 3000 use HP SNADS/iX to communicate over
an APPN network.  Figure F-3 illustrates the configuration described in
this section.

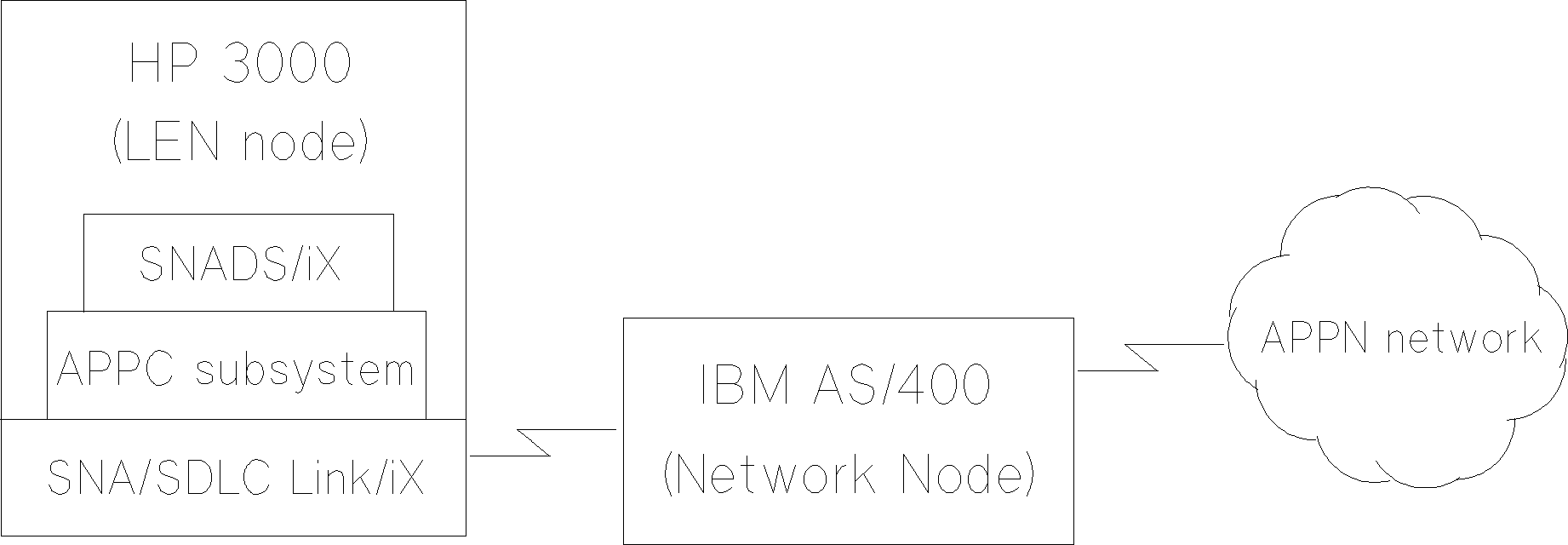

          Figure F-3.  SNADS/iX Example Network

Display Details of Distribution Queue

     Queue. . . . . . . . . . . . . . . . . . . . . :   HPDESKQ
     Queue type. . . . . .. . . . . . . . . . . . . :   *SNADS
     Remote location name . . . . . . . . . . . . . :   APPC002
     Mode. . . . . . . . . .  . . . . . . . . . . . :   DW
     Remote net ID. . . . . . . . . . . . . . . . . :   APPN
     Local location name. . . . . . . . . . . . . . :   AS40002
     Normal priority:
        Send time:
           From/To . . . . .  . . . . . . . . . . . :   :   :
           Force . . . . . .  . . . . . . . . . . . :   :
        Send depth . . . . .  . . . . . . . . . . . :   1
     High priority:
        Send time:
           From/To . . . . .  . . . . . . . . . . . :   :   :
           Force . . . . . .  . . . . . . . . . . . :   :
        Send depth . . . . .  . . . . . . . . . . . :   1
     Number of retries . . .  . . . . . . . . . . . :   3
     Number of minutes
        between retries. . .  . . . . . . . . . . . :   5
     To ignore time/depth values
        while receiving:
        Send queue . . . . .  . . . . . . . . . . . :   N

Display Details of Routing Table Entry

     Destination system
        name/group. . . . . . . . . . . . . . . . . :   HPGATE   HP
     Description . . . . .. . . . . . . . . . . . . :   HP Desk system
     Service level:
        Fast:
           Queue name. . . .  . . . . . . . . . . . :   HPDESKQ
           Maximum hops . . . . . . . . . . . . . . :   *DFT
        Status:
           Queue name . . . . . . . . . . . . . . . :   HPDESKQ
           Maximum hops. . .  . . . . . . . . . . . :   *DFT
        Data high:
           Queue name . . . . . . . . . . . . . . . :   HPDESKQ
           Maximum hops. . .  . . . . . . . . . . . :   *DFT
        Data low:
           Queue name . . . . . . . . . . . . . . . :   HPDESKQ
           Maximum hops. . .  . . . . . . . . . . . :   *DFT

Display Directory Entry Details (remote HP Desk user)

     User ID/Address . . . . . . . . . . . . . . . .:   *ANY   HPLAB
     Description . . . . . . . . . . . . . . . . . .:   Users on HP Desk
     System name/Group . . . . . . . . . . . . . . .:   HPGATE   HP
     User profile. . . . . . . . . . . . . . . . . .:
     Indirect user . . . . . . . . . . . . . . . . .:   No
     Personal mail . . . . . . . . . . . . . . . . .:   No
     Mailing Address . . . . . . . . . . . . . . . .:
     Location. . . . . . . . . . . . . . . . . . . .:
     Telephone numbers . . . . . . . . . . . . . . .:
     Text. . . . . . . . . . . . . . . . . . . . . .:

Display Directory Entry Details (local AS/400 user)

     User ID/Address . . . . . . . . . . . . . . . .:   JENNER   IBMMKT
     Description . . . . . . . . . . . . . . . . . .:   IBM mail user
     System name/Group . . . . . . . . . . . . . . .:   SNADS1   IBM
     User profile. . . . . . . . . . . . . . . . . .:
     Indirect user . . . . . . . . . . . . . . . . .:   No
     Personal mail . . . . . . . . . . . . . . . . .:   No
     Mailing Address . . . . . . . . . . . . . . . .:
     Location. . . . . . . . . . . . . . . . . . . .:
     Telephone numbers . . . . . . . . . . . . . . .:
     Text. . . . . . . . . . . . . . . . . . . . . .:

Configuration of HP Desk Resident Users

Figure F-4 shows an example of the HP SNADS/iX configuration worksheet
for HP Desk resident users.

The fields correspond to the numbers on the worksheet.  Fields 1, 2, and
3 should be completed by the HP SNADS/iX gateway administrator.  Fields
4, 5, and 6 should be completed by the AS/400 system administrator.

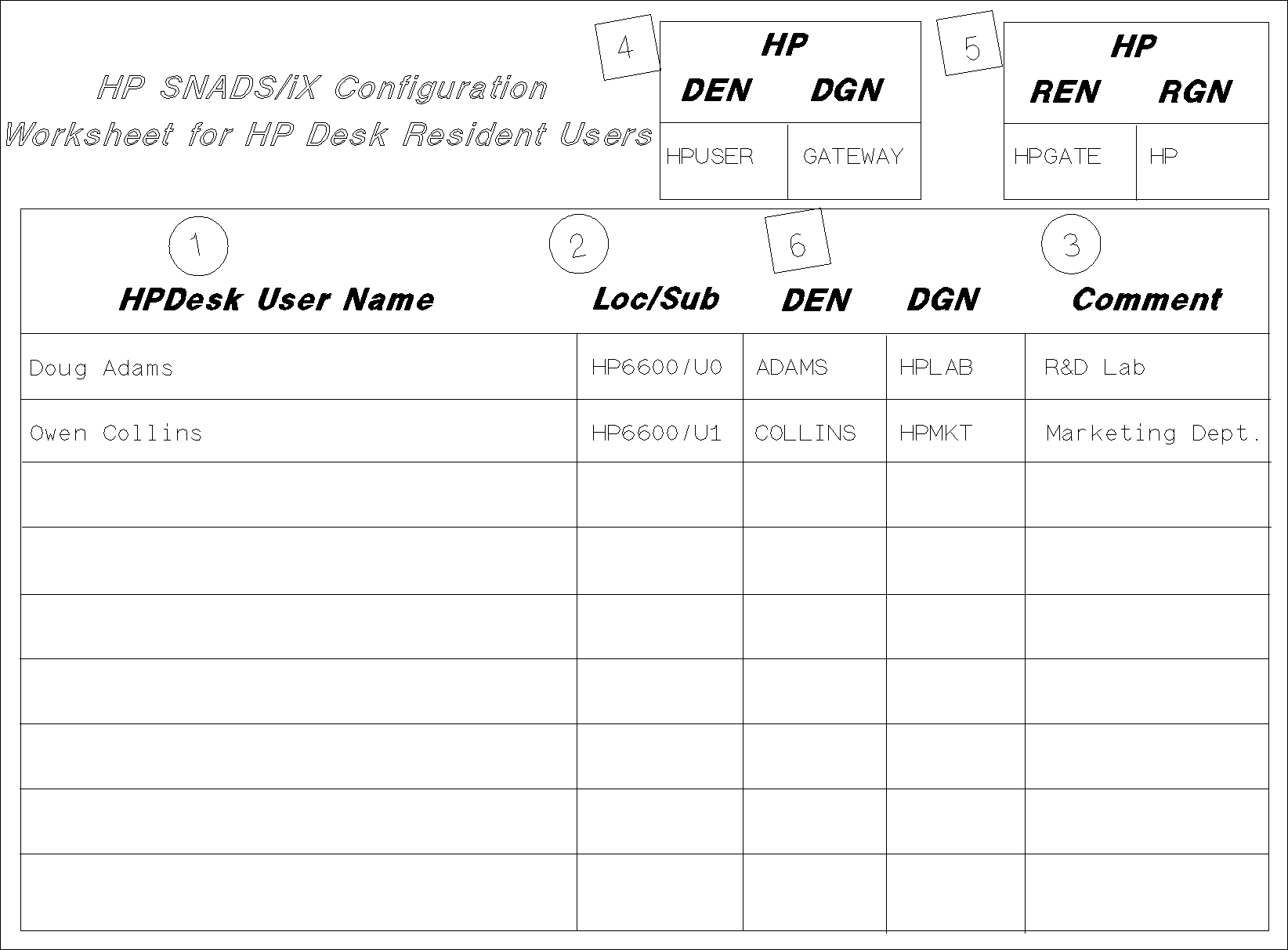

          Figure F-4.  Example SNADS Config.  Worksheet for Desk Users

Configuration of SNA/DS Resident Users

Figure F-5 shows an example of the HP SNADS/iX configuration worksheet
for IBM SNA/DS resident users.

The fields correspond to the numbers on the worksheet.  Fields 1, 2, and
3 should be completed by the AS/400 system administrator.  Field 4 should
be completed by the HP SNADS/iX gateway administrator.

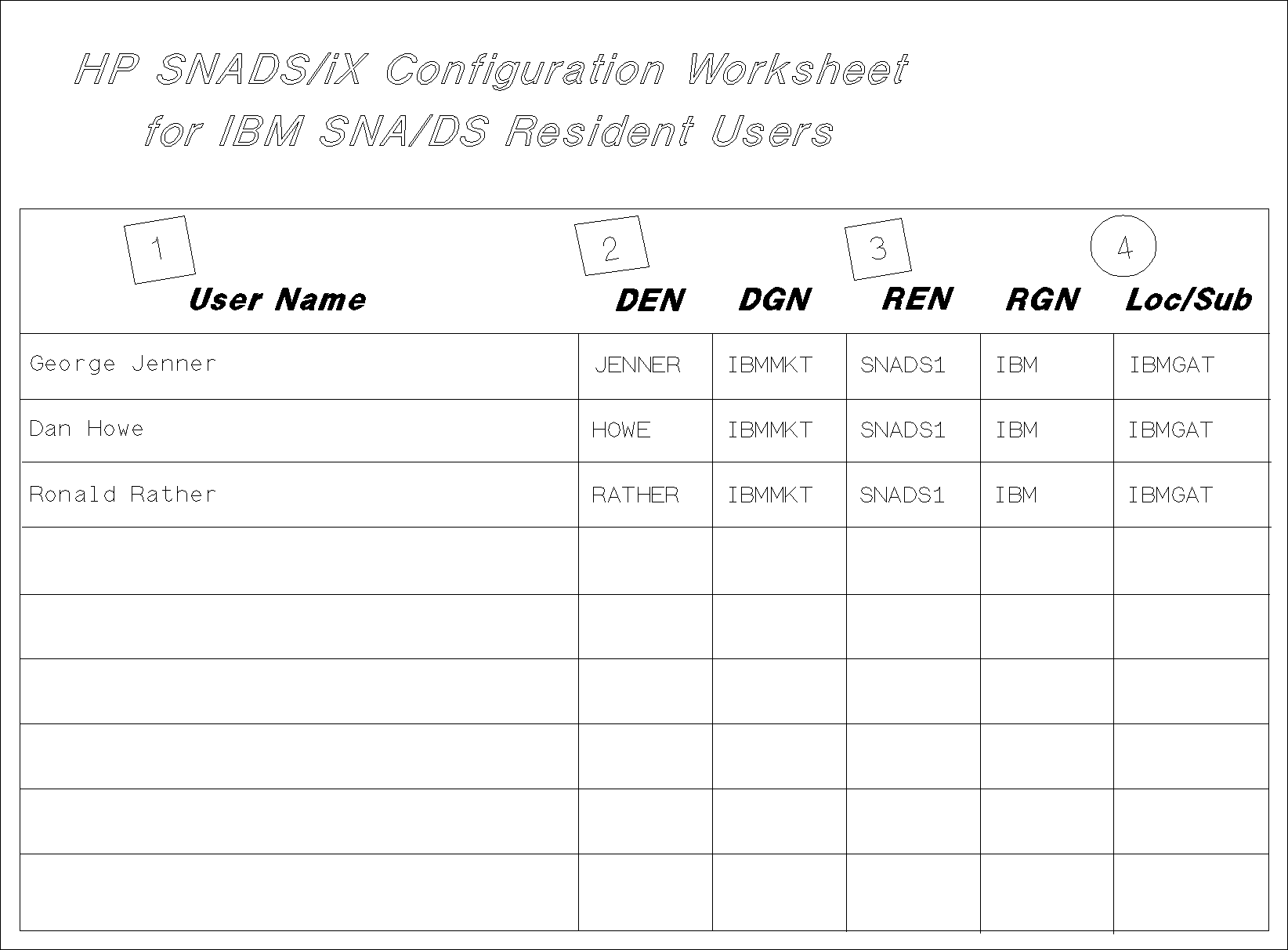

          Figure F-5.  Example SNADS Config.  Worksheet for IBM Users
