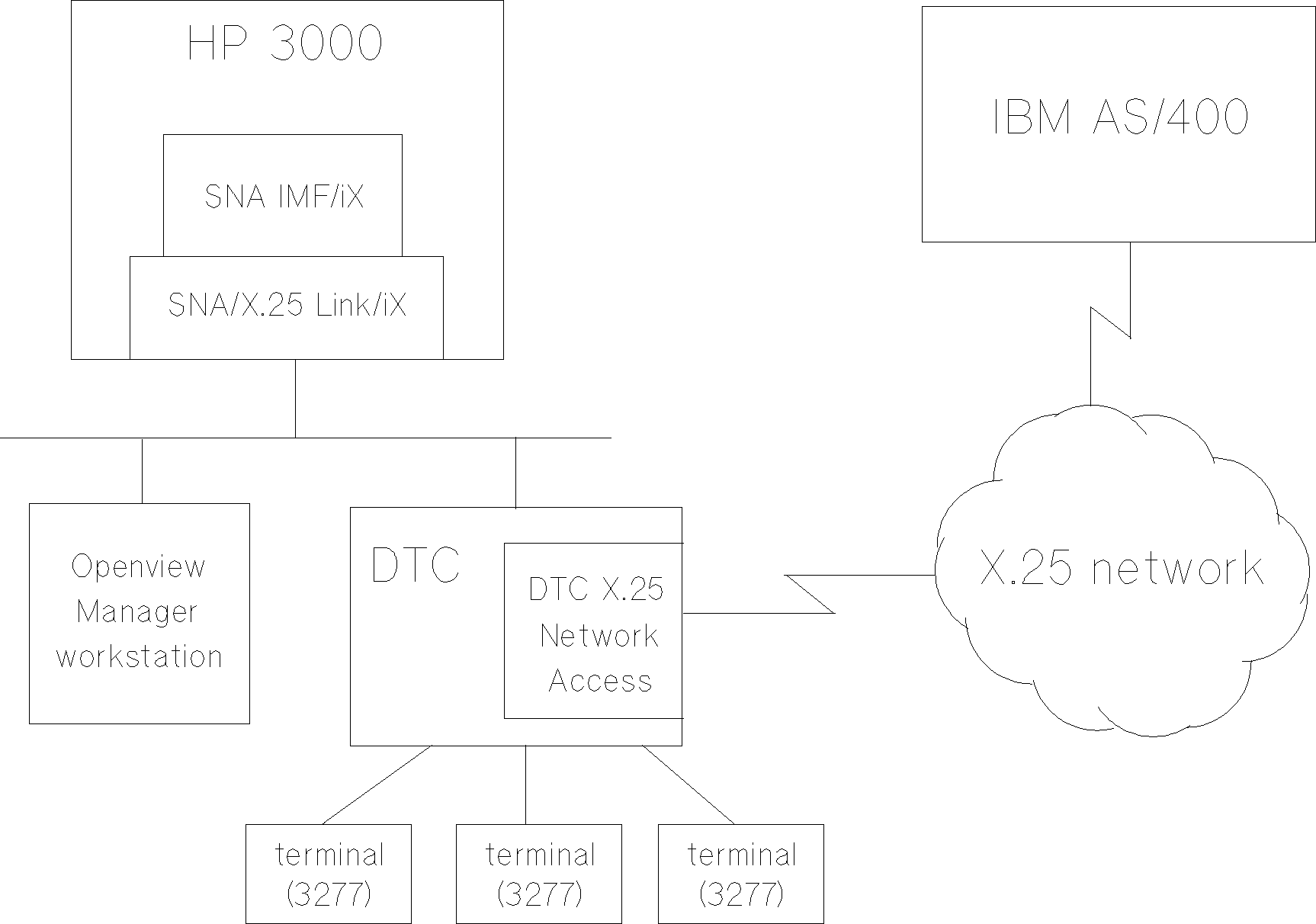

SNA IMF/iX over X.25 Configuration Example This section contains a tested AS/400 configuration for communicating with SNA IMF/iX over an X.25 network. Figure F-2 illustrates the configuration described in this section.Figure F-2. SNA IMF/iX over X.25 Example Network Display Line Description - X.25 Line description . . . . . . . . . .: LIND X25L01 Resource name. . . . . . . . . . . .: RSRCNAME LIN011 Logical channel entries. . . . . . .: LGLCHLE Logical Channel Logical Channel Active SVC or Identifier Type Attached PVC Controller 004 *SVCIN 005 *SVCIN 006 *SVCBOTH 007 *SVCBOTH 008 *SVCBOTH Local network address . . . . . . . : NETADDR 399969876545 Connection initiation . . . . . . . : CNNINIT *REMOTE Online at IPL . . . . . . . . . . . : ONLINE *YES Physical interface . . . . . . . . .: INTERFACE *X21BISV24 Vary on wait . . . . . . . . . . . .: VRYWAIT *NOWAIT Line speed . . . . . . . . . . . . .: LINESPEED 9600 Exchange identifier. . . . . . . . .: EXCHID 05600000 Default packet size. . . . . . . . .: DFTPKTSIZE 128 Maximum packet size. . . . . . . . .: MAXPKTSIZE 128 Modulus. . . . . . . . . . . . . . .: MODULUS 8 Default window size. . . . . . . . .: DFTWDWSIZE 2 Switched controller list . . . . . .: SWTCTLLIST *NONE Idle timer . . . . . . . . . . . . .: IDLTMR 30 Frame retry. . . . . . . . . . . . .: FRAMERTY 7 Insert net address in packets. . . .: ADRINSERT *NO X.25 DCE support . . . . . . . . . .: X25DCE *NO Error threshold level. . . . . . . .: THRESHOLD *OFF Link speed . . . . . . . . . . . . .: LINKSPEED 9600 Cost/connect time. . . . . . . . . .: COSTCNN 128 Cost/byte. . . . . . . . . . . . . .: COSTBYTE 128 Security for line. . . . . . . . . .: SECURITY *PKTSWTNET Propagation delay. . . . . . . . . .: PRPDLY *PKTSWTNET User-defined 1 . . . . . . . . . . .: USRDFN1 128 User-defined 2 . . . . . . . . . . .: USRDFN2 128 User-defined 3 . . . . . . . . . . .: USRDFN3 128 Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: 2 Time interval. . . . . . . . . . .: 0 Text . . . . . . . . . . . . . . . .: TEXT *BLANK Display Controller Description - Remote WS Controller description . . . . . . .: CTLD X25SVC Controller type. . . . . . . . . . .: TYPE 3274 Controller model . . . . . . . . . .: MODEL 0 Link type. . . . . . . . . . . . . .: LINKTYPE *X25 Online at IPL. . . . . . . . . . . .: ONLINE *YES Switched line. . . . . . . . . . . .: SWITCHED *YES Short hold mode. . . . . . . . . . .: SHM Switched Network backup. . . . . . .: SNBU Activate swt network backup. . . . .: ACTSNBU Attached nonswitched line. . . . . .: LINE Switched line list . . . . . . . . .: SWTLINLST X25L01 Attached devices . . . . . . . . . .: DEV X25LU2 X25LU3 X25LU4 Character code . . . . . . . . . . .: CODE *EBCDIC Device wait timer. . . . . . . . . .: DEVWAITTMR 120 Maximum frame size . . . . . . . . .: MAXFRAME Exchange identifier. . . . . . . . .: EXCHID 017ABCDE SSCP identifier. . . . . . . . . . .: SSCPID 050000000000 Initial connection . . . . . . . . .: INLCNN *ANS Connection number. . . . . . . . . .: CNNNBR 399969876545 Predial delay. . . . . . . . . . . .: PREDIALDLY Redial delay . . . . . . . . . . . .: REDIALDLY Dial retry . . . . . . . . . . . . .: DIALRTY Remote autoanswer. . . . . . . . . .: RMTAUTOANS SHM disconnect limit . . . . . . . .: SHMDSCLMT SHM disconnect timer . . . . . . . .: SHMDSCTMR X.25 network level . . . . . . . . .: NETLVL 1984 X.25 link level protocol . . . . . .: LINKPCL *QLLC X.25 logical channel ID. . . . . . .: LGLCHLID X.25 connection password . . . . . .: CNNPWD X.25 default packet size . . . . . .: DFTPKTSIZE *LIND Negotiated packet size . . . . . .: X.25 default window size . . . . . .: DFTWDWSIZE *LIND Negotiated window size . . . . . .: X.25 user group identifier . . . . .: USRGRPID X.25 reverse charging. . . . . . . .: RVSCRG *NONE X.25 frame retry . . . . . . . . . .: X25FRMRTY 7 X.25 connect retry . . . . . . . . .: X25CNNRTY 7 X.25 response timer. . . . . . . . .: X25RSPTMR 100 X.25 connection timer. . . . . . . .: X25CNNTMR 100 X.25 delayed connection timer. . . .: X25DLYTMR X.25 acknowledgement timer . . . . .: X25ACKTMR X.25 inactivity timer. . . . . . . .: X25INACTMR User facilities. . . . . . . . . . .: USRFCL Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: 2 Time interval. . . . . . . . . . .: 0 Text . . . . . . . . . . . . . . . .: TEXT *BLANK Display Device Description - Display Device description . . . . . . . . .: DEVD X25LU2 Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 02 Online at IPL. . . . . . . . . . . .: ONLINE *YES Attached controller. . . . . . . . .: CTL X25SVC Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *YES Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: TEXT *BLANK Display Device Description - Display Device description . . . . . . . . .: DEVD X25LU3 Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 03 Online at IPL. . . . . . . . . . . .: ONLINE *YES Attached controller. . . . . . . . .: CTL X25SVC Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *YES Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: TEXT *BLANK Display Device Description - Display Device description . . . . . . . . .: DEVD X25LU4 Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 04 Online at IPL. . . . . . . . . . . .: ONLINE *YES Attached controller. . . . . . . . .: CTL X25SVC Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *YES Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: TEXT *BLANK
