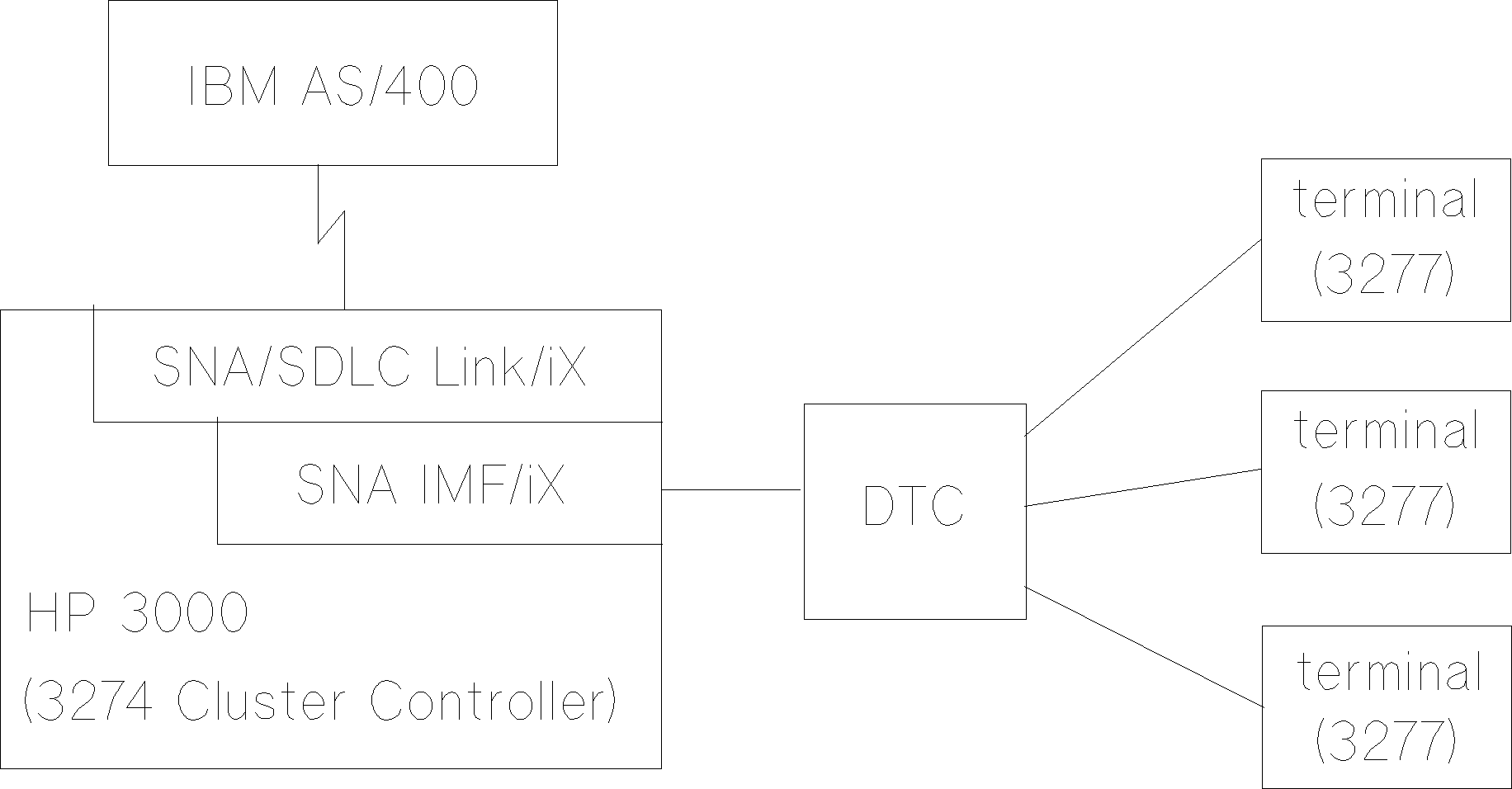

SNA IMF/iX Configuration Example This section contains a tested AS/400 configuration for communicating with SNA IMF over a leased line. SNA IMF communication over a switched line has also been tested and verified. This AS/400 configuration can be used to communicate with either SNA IMF/iX or SNA IMF/V. Figure F-1 illustrates the configuration described in this section.Figure F-1. SNA IMF/iX Example Network Display Line Description - SDLC Line description . . . . . . . . . .: LIND HP3270L02 Resource name. . . . . . . . . . . .: RSRCNAME LIN012 Online at IPL. . . . . . . . . . . .: ONLINE *NO Data link role . . . . . . . . . . .: ROLE *PRI Physical interface . . . . . . . . .: INTERFACE *RS232V24 Connection type. . . . . . . . . . .: CNN *NONSWTPP Switched network backup. . . . . . .: SNBU *NO Activate swt network backup. . . . .: ACTSNBU SHM node type. . . . . . . . . . . .: SHMNODE Vary on wait . . . . . . . . . . . .: VRYWAIT Autocall unit. . . . . . . . . . . .: AUTOCALL Attached nonswitched ctl . . . . . .: CTL HP3274C02 Exchange identifier. . . . . . . . .: EXCHID 05600000 NRZI data encoding . . . . . . . . .: NRZI *NO Maximum controllers. . . . . . . . .: MAXCTL 1 Clocking . . . . . . . . . . . . . .: CLOCK *MODEM Line speed . . . . . . . . . . . . .: LINESPEED 9600 Modem type supported . . . . . . . .: MODEM *NORMAL Modem data rate select . . . . . . .: MODEMRATE *FULL Maximum frame size . . . . . . . . .: MAXFRAME 521 Error threshold level. . . . . . . .: THRESHOLD *OFF Duplex . . . . . . . . . . . . . . .: DUPLEX *FULL Modulus. . . . . . . . . . . . . . .: MODULUS 8 Maximum outstanding frames . . . . .: MAXOUT 7 Inactivity timer . . . . . . . . . .: INACTTMR Poll response delay. . . . . . . . .: POLLRSPDLY Nonproductive receive timer. . . . .: NPRDRCVTMR 320 Idle timer . . . . . . . . . . . . .: IDLTMR 30 Connect poll timer . . . . . . . . .: CNNPOLLTMR 10 Poll cycle pause . . . . . . . . . .: POLLPAUSE 0 Frame retry. . . . . . . . . . . . .: FRAMERTY 7 Link speed . . . . . . . . . . . . .: LINKSPEED 9600 Cost/connect time. . . . . . . . . .: COSTCNN 0 Cost/byte. . . . . . . . . . . . . .: COSTBYTE 0 Security for line. . . . . . . . . .: SECURITY *NONSECURE Propagation delay. . . . . . . . . .: PRPDLY *TELEPHONE User-defined 1 . . . . . . . . . . .: USRDFN1 128 User-defined 2 . . . . . . . . . . .: USRDFN2 128 User-defined 3 . . . . . . . . . . .: USRDFN3 128 Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: 2 Time interval. . . . . . . . . . .: 5 Text . . . . . . . . . . . . . . . .: TEXT SDLC Line 2 Display Controller Description - Remote WS Controller description . . . . . . .: CTLD HP3274C02 Controller type. . . . . . . . . . .: TYPE 3274 Controller model . . . . . . . . . .: MODEL 0 Link type. . . . . . . . . . . . . .: LINKTYPE *SDLC Online at IPL. . . . . . . . . . . .: ONLINE *NO Switched line. . . . . . . . . . . .: SWITCHED *NO Short hold mode. . . . . . . . . . .: SHM Switched Network backup. . . . . . .: SNBU *NO Activate swt network backup. . . . .: ACTSNBU Attached nonswitched line. . . . . .: LINE HP3270L02 Switched line list . . . . . . . . .: SWTLINST Attached devices . . . . . . . . . .: DEV HP3277_02B HP3277_03B HP3277_04B Character code . . . . . . . . . . .: CODE *EBCDIC Device wait timer. . . . . . . . . .: DEVWAITTMR 120 Maximum frame size . . . . . . . . .: MAXFRAME Exchange identifier. . . . . . . . .: EXCHID 01700001 SSCP identifier. . . . . . . . . . .: SSCPID 050000000000 Initial connection . . . . . . . . .: INLCNN Connection number. . . . . . . . . .: CNNNBR Predial delay. . . . . . . . . . . .: PREDIALDLY Redial delay . . . . . . . . . . . .: REDIALDLY Dial retry . . . . . . . . . . . . .: DIALRTY Remote autoanswer. . . . . . . . . .: RMTAUTOANS SHM disconnect limit . . . . . . . .: SHMDSCLMT SHM disconnect timer . . . . . . . .: SHMDSCTMR Station address. . . . . . . . . . .: STNADR C1 SDLC poll priority . . . . . . . . .: POLLPTY *NO SDLC poll limit. . . . . . . . . . .: POLLLMT 0 SDLC connect poll retry. . . . . . .: CNNPOLLRTY *NOMAX SDLC NRM poll timer. . . . . . . . .: NRMPOLLTMR 0 SDLC NDM poll timer. . . . . . . . .: NDMPOLLTMR *CALC Recovery limits. . . . . . . . . . .: CMNRCYLMT Count limit. . . . . . . . . . . .: 99 Time interval. . . . . . . . . . .: 5 Text . . . . . . . . . . . . . . . .: TEXT HP3270 cluster controller Display Device Description - Display Device description . . . . . . . . .: DEVD HP3277_02B Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 02 Online at IPL. . . . . . . . . . . .: ONLINE *NO Attached controller. . . . . . . . .: CTL HP3274C02 Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *NO Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: HP3277_02B remote display Display Device Description - Display Device description . . . . . . . . .: DEVD HP3277_03B Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 03 Online at IPL. . . . . . . . . . . .: ONLINE *NO Attached controller. . . . . . . . .: CTL HP3274C02 Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *NO Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: HP3277_03B remote display Display Device Description - Display Device description . . . . . . . . .: DEVD HP3277_04B Device class . . . . . . . . . . . .: DEVCLS *RMT Device type. . . . . . . . . . . . .: TYPE 3277 Device model . . . . . . . . . . . .: MODEL 0 Port number. . . . . . . . . . . . .: PORT Switch setting . . . . . . . . . . .: SWTSET Local location address . . . . . . .: LOCADR 04 Online at IPL. . . . . . . . . . . .: ONLINE *NO Attached controller. . . . . . . . .: CTL HP3274C02 Keyboard language type . . . . . . .: KBDTYPE Drop line at signoff . . . . . . . .: DROP *NO Character identifier . . . . . . . .: CHRID Allow blinking cursor. . . . . . . .: ALWBLN Auxiliary devices. . . . . . . . . .: AUXDEV Printer. . . . . . . . . . . . . . .: PRINTER Print file . . . . . . . . . . . . .: PRTFILE QSYSPRT Library. . . . . . . . . . . . . .: *LIBL Maximum length of request unit . . .: MAXLENRU *CALC Text . . . . . . . . . . . . . . . .: HP3277_04B remote display
![[]](../../pic3k/M014418/FFN213c50.gif)
