The Neighbor Gateways screen (#152) in Figure
5-9 "Neighbor Gateways Screen" is displayed when you press the
[Go To INTERNET] function key at the LAN Network Interface Configuration
screen (Figure 5-3 "LAN Network Interface
Configuration Screen"). It is also displayed when you type the path name:
@NETXPORT.NI.NIname.INTERNET
in the command window of any screen and press the [Enter] key, where
NIname is a configured LAN NI.

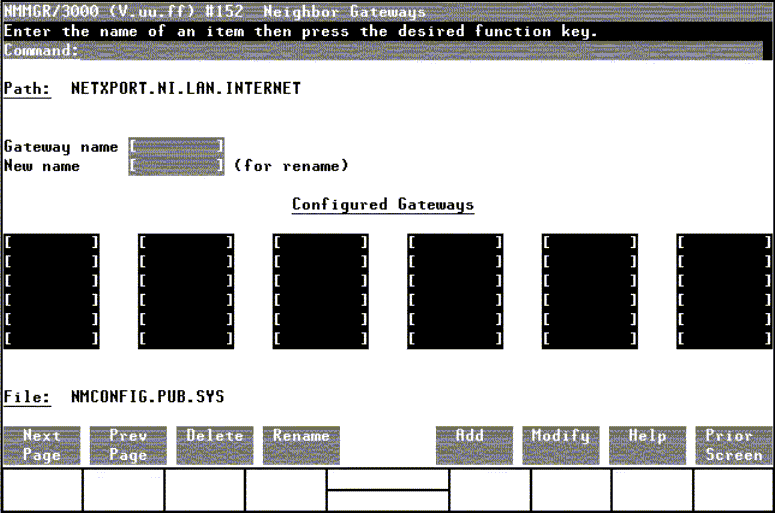

Figure 5-9 Neighbor Gateways Screen
Use this screen, and the screens that follow it, to identify the gateways on
this network. Use the fields and the function keys of this select screen to
perform the desired action as follows:
To identify a new gateway, specify the gateway name; then press
the [Add] function key. The path for the selected gateway name
is added to the configuration file, and the data screen on the path
is displayed. You may configure up to 255 gateways under an
NI.
To modify an existing gateway configuration, specify the gateway
name; then press the [Modify] function key. The data screen on
the path for the specified gateway is displayed.
To change the gateway name of an existing gateway, specify the
gateway name and a new name; then press the [Rename] function
key. The previously configured name is replaced, and the screen
displays the new name in a display field under the label Configured
Gateways.
To delete an existing gateway, specify the gateway name; then
press the [Delete] function key. Press the [Delete]
function key again to confirm the deletion. The previously configured
name is deleted and is no longer displayed in a display field under
the label Configured Gateways.
From this screen you proceed to the screen used to configure network numbers of
all networks reachable from this gateway node.
Fields
Gateway name
Enter a name to represent a gateway on this LAN network through which
one or more remote networks can be reached. A gateway name can contain as
many as eight alphanumeric characters; the first character must be
alphabetic.
New name
(Required only when renaming.) Enter a gateway name to
represent a gateway. This new gateway name is used in place of the
current gateway name for an existing gateway configuration. The name can
contain as many as eight alphanumeric characters; the first character
must be alphabetic.
