The FDDI Link Configuration screen (#203) in
Figure 3-8 "FDDI Link Configuration Screen"
is displayed when you select a link name of type FDDI at the Link Selection
screen (Figure 3-2 "Link Selection Screen")
and press the [Add] or [Modify] function key. It is also
displayed when you type the path name:
@LINK.linkname
in the command window of any screen and press the [Enter] key, where
linkname is the name of a configured FDDI link.

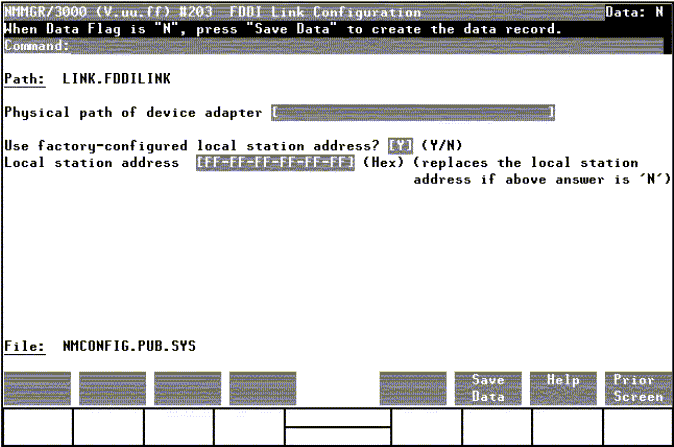

Figure 3-8 FDDI Link Configuration Screen
Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating. Verify that the
data record has been created by checking that the Data flag is set to
Y.
Fields
Physical path of device adapter
The physical path number corresponds to the slot location of a node's
FDDI device adapter. For HP e3000 systems, the path is derived by a basic
formula of 4 x slot number. (Example: 4 x 10 = 40, where the FDDI
device adapter is installed in slot number 10 and the physical path of
the device adapter is 40.)
If you are unsure of the slot location or of the physical path number to
configure for your system, see your system documentation or consult your
Hewlett-Packard service representative.
Use factory-configured local station address?
The FDDI adapter is supplied with a 48-bit station address. These are
guaranteed to be unique. Do not override the factory configured local
node address except on the specific instructions of your network
administrator or your Hewlett-Packard representative.
Default value: Y
Local station address
This field is to be used only with specific instructions from your
network administrator or your Hewlett-Packard representative. It allows
you to enter a station address to replace the factory configured address.
The format must be compatible with HP software requirements.
