The Samba/iX configuration file contains the runtime configuration information
for Samba/iX. This file contains the sections and parameters. There are four
special sections: the [global] section, the [printers] section,
[homes] section and other sections. This file also contains the
information required for each share (service) and defines attributes like
associated directory path, read or write access for each share.
The Samba/iX configuration file is named "smb.conf" which resides in
the /usr/local/samba/lib directory on HP 3000 system. This chapter
documents the possible configuration options that the users can specify in the
"smb.conf" file. There are many configuration options available, but
only the configuration options and uses defined in this manual are supported by
HP.
- [Global] Section
This section is for parameters which apply to the server as a whole
rather than to a specific service. It can also be used to specify default
values for service-specific parameters which are then inherited by other
services, referred to later in the configuration file.
- [Printers] Section
This section works in conjunction with the printcap file and allows it
to configure a large number of printer shares without having to add
separate detailed sections for each of them. The printer names and
optional aliases are listed in the printcap file; and the configuration
parameters are defined in this section.
- [Homes] Section
This section provides access to the user's home directories without
having to add a separate section for each of them. The share name is
considered to be a valid user id and the path defaults to that user's
home directory.
- Other Sections
These sections explicitly define the file and printer shares.
The global configuration options can be defined in the [Global] Section
in the "smb.conf" file, options cover the following configuration
options which are supported for use by HP:
Configuration file option
Browser option
Network interface configuration
Mapping PC usernames to MPE usernames
Setting the maximum SMB packet size
Disconnecting idle clients
Setting logging behaviors
Login/logout commands
Global printer service option
Configuration File Option
- config file
The config file parameter allows you to specify the pathname for the
configuration file used by Samba/iX.
- Example:
config file = /usr/local/samba/lib/smb.conf
Browser Option
- workgroup
The workgroup parameter specifies the name of the workgroup; the
Samba/iX server will appear as part of the browse list.
- Example:
workgroup = SambaiX
- server string
The server string parameter defines the server's comment string. This
comment string will appear next to the machine name in the browse lists,
such as the network neighborhood.
- Example:
server string = HP3000, File/Printer server
- Default:
server string = samba 1.9.16p9
- default service
This parameter specifies the name of a service that a client will be
connected to, if the service actually requested doesn't exist. Typically
the default service is some sort of public, read-only service.
- Example:
default service = public
- Default:
none
Mapping PC Usernames to MPE Usernames
- username map
This username map parameter allows you to map PC style usernames to
MPE style usernames. You can specify the location of your username map
file with the username map parameters.
- Example:
username map = /usr/location/samba/lib/user.map
The syntax of the username map file is simple. Each line consists of a
MPE style name like manager.sys and a list of possible PC style
username like webuser, separated by an equal sign. A sample
username map in the user.map file is defined as follows.
- Example:
manager.sys = webuser
Network Interface Configuration
- interfaces
The interfaces option allows you to inform Samba/iX of each interface
you wish it to provide services on, by supplying IP address and subnet
mask of your HP 3000 system.
- Example:
interfaces = 192.1.2.3/255.255.0
Setting the Maximum SMB Packet Size
- max xmit
The max xmit parameter allows you to set the maximum packet size which
Samba/iX can negotiate with a client. This is the maximum packet size
that SMBD will accept from a client, setting an upper limit on the packet
size that will be negotiated with a client at session setup.
- Example:
max xmit = 8000
- Default:
max xmit = 65535
Disconnecting Idle Clients Option
- dead time
An inactive client will consume server resources even though it is not
doing anything. The dead time parameter defines an integer value
describing the number of minutes of inactivity before a session is
automatically disconnected. The "dead time" is considered to begin when a
client has no open files. The default "dead time" of zero indicates that
no client should ever be dropped because of inactivity.
- Example:
5 (in minutes)
- Default:
0 (in minutes)
Setting Logging Behavior
- max log size
The max log size option specifies the maximum size in kilobytes to
which log files can grow. The default value of the maximum log file size
is 5000 in kilobytes. If the file exceeds the specified size, it is
renamed by adding the .old extension.
- Example:
max log size = 10000 (in kilobytes)
- Default:
5000 (in kilobytes)
- log file
The log file parameter allows you to specify the pathname of log file
used by SMBD and NMBD processes.
- Example:
log file = /usr/local/samba/var/log.smb
- debug level
The debug level parameter allows the debug logging level to be
specified in the Samba/iX configuration file. This option defines the
level of trace messages that you want to log into the logfile.
The typical range of the debug level can be from 0 to 5. Large values
cause more detailed information to be logged. Most of these debug levels
exist to help users to debug the server activity.
- Example:
debug level = 3
- Default:
debug level = 0
Login/Logout Commands
- preexec
The preexec parameter allows you to specify a command to be run
whenever the service is connected.
Example: callci /usr/local/samba/lib/tellop tcon %S %u %m %I
Generates the following example output to the console:
9:41 #J36/50/FROM/MGR.SAMBA/tcon on IPC$ by MGR.SAMBA from
rkm-nt
- postexec
The postexec parameter allows you to specify a command to be run
whenever the service is disconnected.
- Example:
callci /usr/local/samba/lib/tellop tdis %S %u %m %I
Generates the following example output to the console:
9:41 #J36/70/FROM/MGR.SAMBA/tdis on IPC$by MGR.SAMBA from rkm-nt
The global printer service options allows you to specify the location of the
"printcap", printer command parameter used by Samba/iX.
The following global printer configuration options are supported for use by HP:
- load printers
The load printers parameter is used in conjunction with printcap file
and [printers] section. It is a boolean variable that controls
whether all printers in the "printcap" file will be loaded for
browsing.
If the load printers parameter is set to true, all printers defined in
the printcap file will be loaded for browsing by default.
- Example:
load printers = yes
- Default:
load printer = no
- printcap name
The printcap name option specifies the location of the
printcap. Samba/iX uses the printcap to determine all
printers available on the system if the general [printers] service
is used instead of defining each printer in its own service.
- Example:
printcap name = /usr/local/samba/lib/printcap
- print command
The print command parameter defines the shell command which Samba/iX
will use to submit a print job. After Samba/iX has finished spooling a
print job to the disk, it calls this command. After processing the file,
this command must remove the spoolfile, unless you don't mind spool files
building up on your system.
This parameter can use the following print-specific macros:
- %s
The full path of the print spool file.
- %p
The name of the printer to which the job is to be
submitted.
- Example:
print command = /usr/local/samba/lib/rawlp %s %p; rm %s
On MPE/iX 6.0, the "rawlp" utility is available on the system
and is used to send the file contents to a spooler like
"lp -oraw".
- allow hosts
Default: none
- deny hosts
These parameters allow users to define a set of client IP addresses
which will be granted access to service. If an allow hosts option is
present, only hosts matching the pattern are allowed to access the
service. If a deny hosts option exists, only hosts not matching the
pattern will be granted access.
- Example:
allow hosts = 192.1.2.3
- Default:
none
- valid users
Default: none
- invalid users
If neither of these parameters are set, then any authenticated user
will be granted access to the service. The valid users parameter may
contain a comma-delimited list of users who will be allowed to access the
service. The invalid users parameter may contain a similar
comma-delimited list of users who will never be granted access to the
service. These parameters use MPE style user syntax (for example,
user.acct) to specify users. The password format used when you
log on from a PC client should be userpassword,
acctpassword.
- Example:
valid users = mgr.samba
- Default:
none
- guest account
The shares can be configured to accept connections without a validated
user ID and password, then you can use the "guest account" parameter to
assume the guest logon identify for accessing files and printers.
- Example:
guest account = mgr.samba
- Default:
none
- revalidate
Forces the revalidation of password. When Samba/iX successfully
validates a clients password, it passes a token back to client. This is
used by the client to connect to other shares. If
revalidate=true, then Samba/iX expects a valid username and
password pair again without just relying on the token. For example, after
connecting to "temp", if the client tries to connect to another share,
Samba/iX revalidates the password.
- Example:
revalidate = yes
- Default:
no
This section covers the share configuration options that you
use when you configure for a specific disk or printer share in the
Samba/iX configuration file.
Setting the Shared Directory
- path
The path parameter specifies the pathname of the shared
directory.
- Example:
path = /usr/local/samba/docs
For printer services, this parameter describes the directory used to
temporarily spool files sent from clients for printing before they are
spooled to the local HP 3000 printer.
- Example:
path = /usr/local/samba/spool
Browser Option
- browseable
This parameter controls whether this share is seen in the list of
available shares in the browse list.
- Example:
browseable = yes
- Default:
browseable = yes
- Available
This parameter lets you remove a service from availability. If
available is no, all attempts to connect to the service will fail. Using
this option preserves the service's settings and is usually more
convenient than commenting out the service.
- Example:
available = no
- Default:
available = yes
Comment Option
- comment
The "comment" parameter specifies the comment message in the share
services.
- Example:
comment = share "public" service for guest users.
Printing Access
- print ok
The "print ok" option is specified in the [prints] section to
enable the share for printing access.
Controlling Read/Write Access
- guest ok
If guest ok is true, then guest access will be allowed. The
access rights of a client connecting as guest will be those of the
username set in the "guest account."
- Example:
guest ok = yes
- Default:
guest ok = no
- guest only
If guest only is true, then access of service/share is only granted
with the rights of usernames given in the "guest account"
parameter.
- Example:
guest only = yes
- Default:
guest only = no
- create mode
The "create mode" is used to define the permission used by share
services. This option sets an octal value representing the file
permissions available to a file created by Samba/iX.
- Example:
create mode = 0744
The value of 0744 causes the group and other write and execute
bit to be removed from a file created by Samba.
- read only
Example: read only = yes
Default: read only = yes
- write ok
The read only = yes is identical to write ok = no.
If write ok is true, clients will be granted read/write access
to a share. The same effect can be achieved by setting read only to
false.
- Example:
write ok = no
- Default:
write ok = no
Sample Configuration File — samp-smb.conf
When you want to use Samba/iX, you should copy the Samba/iX sample
configuration file to /usr/local/samba/lib/smb.conf and adjust this
file as needed. The sample configuration file samp-smb.conf resides in
the /usr/local/samba/lib directory. Please refer to
Appendix A "Samba/iX Sample Comfiguration File"
The PCs can access the server side filespaces using Samba/iX. Whenever the
clients want to connect to the server, the server side validates the username
and password which are sent by the client and grants access to the requests
share if it is appropriate.
You can configure the file service with guest access and the Samba/iX server
can grant to the guest users without a validated user ID and password.
Share level security is the default security level in Samba/iX. The following
example shows the configuration steps you can use to configure with
[global] and [service] section with security = share:
Add in the [global] section the following parameter:
security = share
To add a share, the entries can be given in the example below:
[sample shares]
comment = shared space
guest ok = no
write ok = yes
path = /sample/test
Add a username mapping in "user.map" file. For example:
mgr.sample = pcusername
When you connect a share from a PC, the password format that you
enter from a PC should be userpassword,
acctpassword.
 |
NOTE: For accessing share/user security modes, both SAMBA
account and MGR.SAMBA user should have PM capabilities.
|
The PCs can access the server side printer using Samba/iX. With printer sharing
the client creates a file on the server directory associated with the printer,
and then lets the server process trigger a configurable command to push the
file into the MPE spooler.
The [printers] section works in conjunction with the printcap file and
allows to configure a large number of printer shares without having to add
separate detailed sections for each of them. The printer names and option
aliases are listed in the printcap file.Here is an sample example of
printer names in the samp-printcap file which resides in
/usr/local/samba/lib:
samp-printcap file:
LP|6|HP3000 System LP
Here is a sample example for the configuration option that you may configure
with [global] and [printers] sections in the Samba/iX
configuration file — smb-conf:
[global]
# You need supply IP address and subnet mask of your 3000
# with the interface parameter
interface = ip address/subnet mask
# printcap file lists printer names for use by [printer] section
printcap name = /usr/local/samba/lib/printcap
# shares may be configured to accept connections without a
# validated user id and password, and then it assumes the guest
# logon for accessing the printers.
guest account = mgr.samba
[printers]
# enable this service for printing but not for file access
print ok = yes
write ok = no
# current version of Samba/iX only allows guest users for printer
# sharing
guest ok = yes
guest only = yes
# the "staging" directory for print requests
path = /user/local/samba/spool
# The rawlp utility sends file contents to spooler like "lp -oraw"
print command = /usr/local/samba/lib/rawlp %s %p; rm %s
 |
NOTE: For the current version of Samba/iX, the printer sharing only
works for guest users.
The current configuration option for printer sharing needs to set "guest ok"
and "guest only".
|

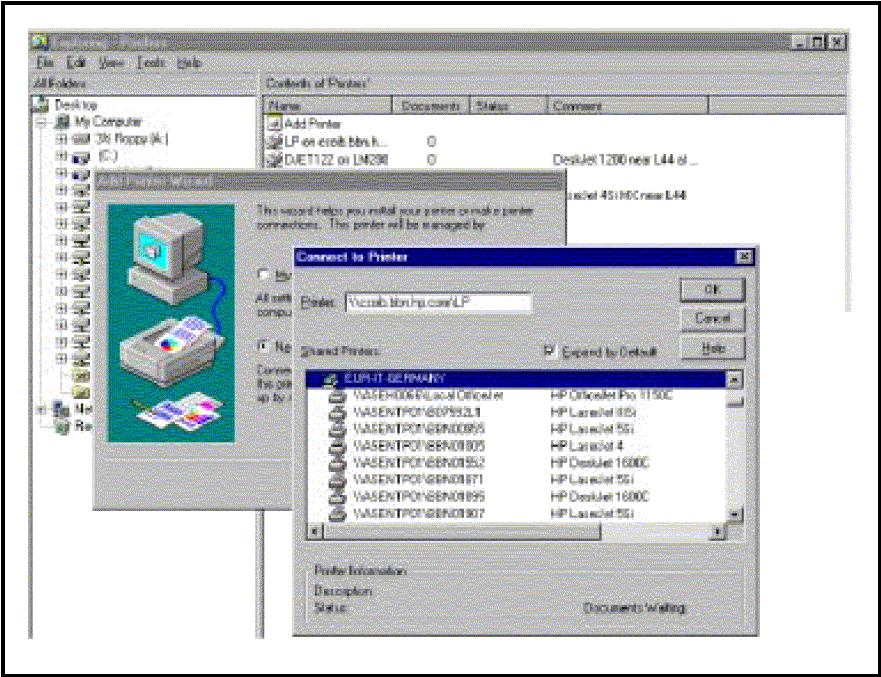

Add a printer, as shown in Figure 7-6 "ADD a
Printer". With printer sharing, the printers are accessible to HP 3000.
Figure 7-6 ADD a Printer

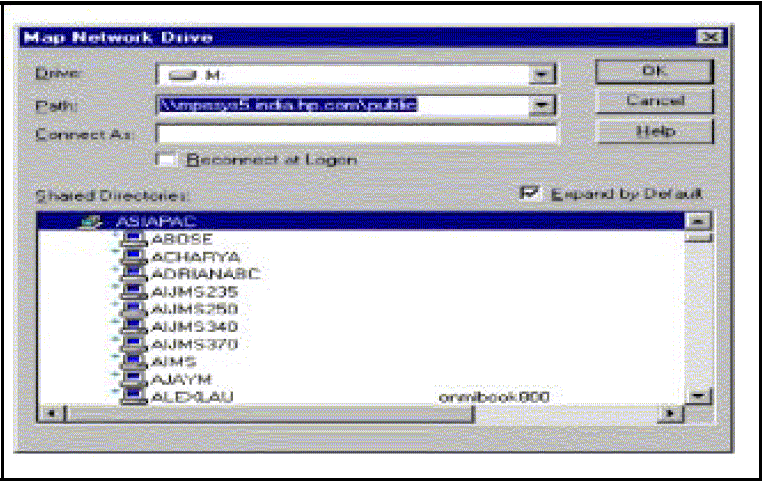

You can connect your server shares using the NT explorer, as shown in
Figure 7-7 "Connect to the HP 3000 Shares".
The menu tool includes a "map network drive" which brings up the small windows
shown in Figure 7-7 "Connect to the HP 3000
Shares". You connect a network driver by typing in a share name with
\\servername\sharename syntax in the "path" box.
Figure 7-7 Connect to the HP 3000 Shares

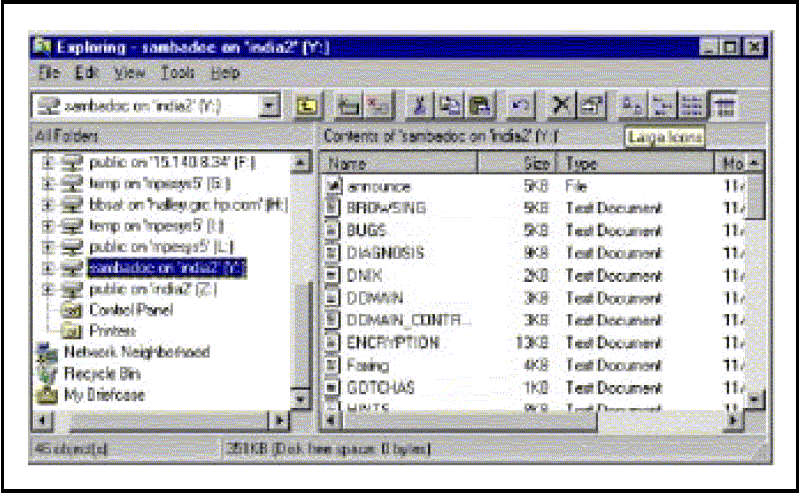

You can view the contents of the share from NT explorer, as shown in
Figure 7-8 "View the HP 3000 Share". Click
the share name at NT explorer window, it will list the files residing in this
share
Figure 7-8 View the HP 3000 Share
|
