Your operating system normally resides in what HP Stage/iX calls the
Base. The Base is the set of files laid down by the
last UPDATE or INSTALL, and RESTORE from tape.
The "base location" or "natural location" is where a file officially resides
(for example, NL.PUB.SYS).
HP Stage/iX creates, fills, and validates staging areas.
A staging area is an HFS directory: /SYS/hpstage/stage_name.
It is located on disk and contains only the files of the OS that change as
a result of applying a set of patches. As needed, using the HP Stage/iX
SET command, you activate your system software to boot
from either the Base or a designated staging area.
Creating and Activating a Staging Area
When you boot your system from a staging area, HP Stage/iX:
Creates a Base file
archive.
Moves the affected Base
files to the archive:
/SYS/hpstage/base_archive.
Moves the staging area
files to their Base
location.
Boots the system using the
staging area files.
Much of the disk space used by the staging area and the archive
is on LDEV 1. When the system is booting from the Base files, the
archive area is empty. When the system is booting from the staging
area files, the staging area is empty. The amount of disk space used
depends on the set of patched files. Refer to
Figure G-1 "Creating and Activating a Staging
Area" for more information.

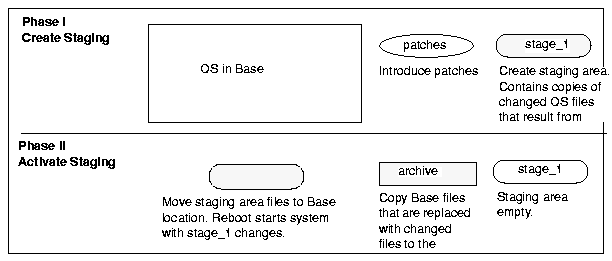

Figure G-1 Creating and Activating a Staging Area
Backing Out a Staging Area
To backout the changes from a staging area, use the HP Stage/iX SET
command to designate the Base instead of the staging area. When you use the
SET command to backout a staging area, HP Stage/iX:
Moves the staging area
files back to the staging area.
Moves the Base archive files back to their
Base location.
Boots the system using the staging
area files.
Refer to Figure G-2 "Backing Out Patch
Changes" for more information.

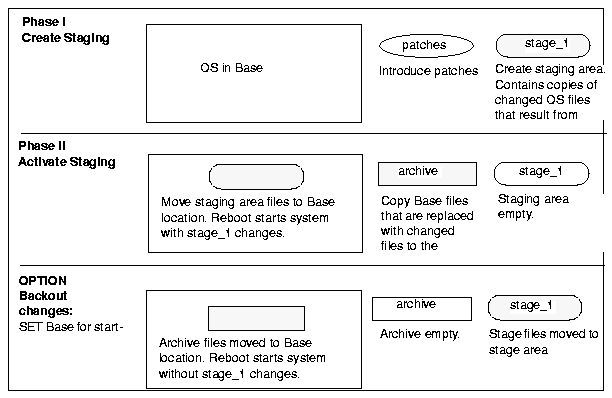

Figure G-2 Backing Out Patch Changes
Applying the Changes
After you have tested and are satisfied with the changes from an active
staging area, use the HP Stage/iX COMMIT command to permanently apply
the changes to your system. This accomplishes the following:
Creates a new
Base.
Frees up disk space by removing the archived Base files and the
committed staging area.
Refer to Figure G-3 "Permanently Applying Patch
Changes" for more information.

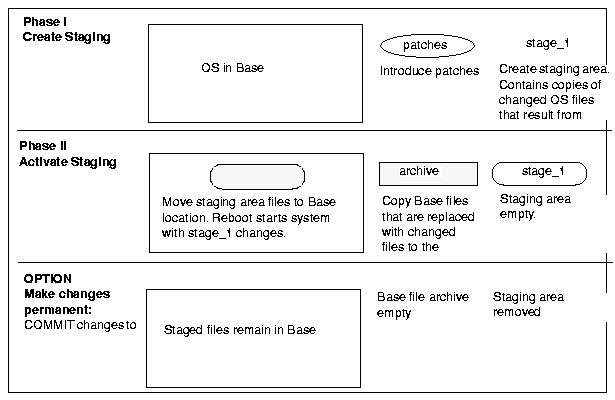

Figure G-3 Permanently Applying Patch Changes
Using Multiple Staging Areas
You can have more than one staging area at a time. Each staging
area contains the difference, or delta, between the Base OS and
a patched OS. Staging area stage_1 contains the changes to the Base
from patch_set_1. Staging area stage_2 contains the changes
to the Base from only patch_set_2. You can use the SET command
and boot from either staging area stage_1 or stage_2.
Refer to Figure G-4 "Creating Another Staging
Area, from the Base Location" for more information.

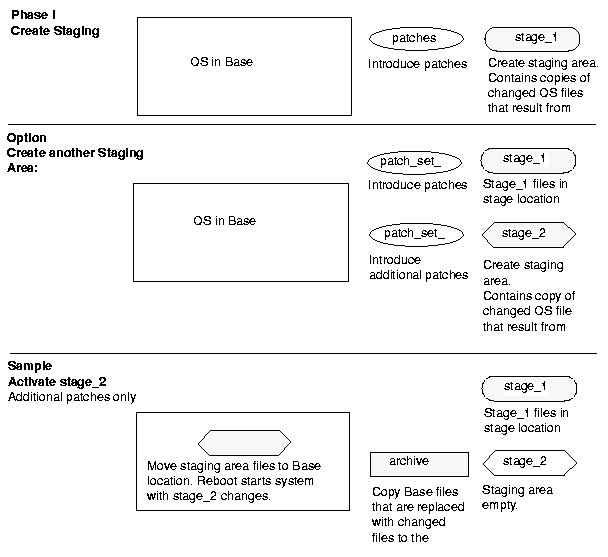

Figure G-4 Creating Another Staging Area, from the Base Location
If you create an additional staging area, stage_name2, while operating
from another staging area, stage_name1, the additional staging area,
stage_name2, will contain all the changes to the Base from
patch_set_1 plus the new patches in patch_set_2.
Refer to Figure G-5 "Creating Another Staging
Area from an Existing Staging Area" for more information.

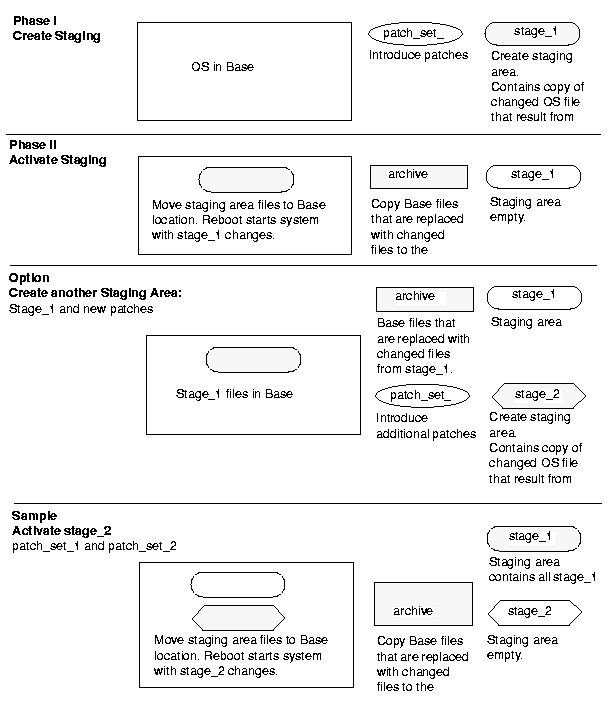

Figure G-5 Creating Another Staging Area from an Existing Staging Area
|
