Another Telnet implementation is DTC Telnet Access.
DTC Telnet Access provides Telnet connections from HP 9000 and non-HP
systems running ARPA standard Telnet services to the HP 3000. The
DTC Telnet Access solution includes a Telnet Access Card
(TAC) that resides in the DTC 72MX or DTC
48 and provides protocol conversion between Telnet and Avesta
Flow Control Protocol (AFCP).
Equivalent functionality is provided by the Telnet Express
Box (TEB) (HP 2344A).

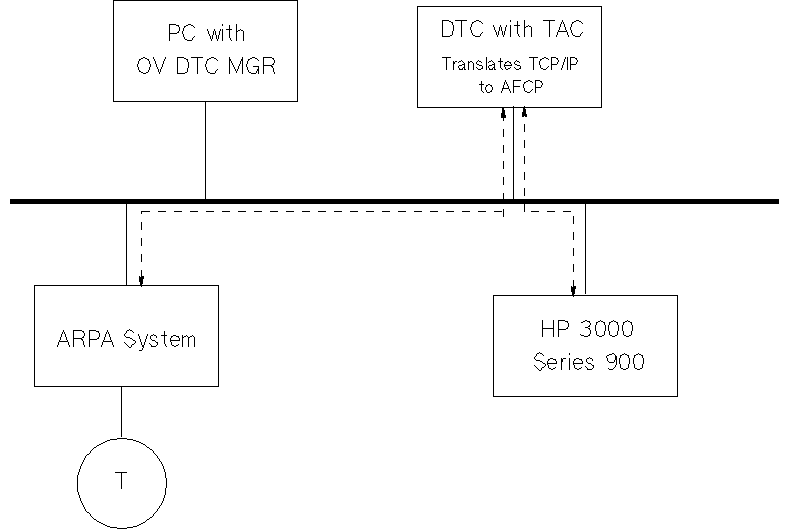

Figure 1-3 “DTC Telnet Access” shows a terminal
user connected to an ARPA node using the Telnet service to access
an HP 3000 system. The TAC in the DTC converts the Telnet traffic
into AFCP traffic for the HP 3000.
The remainder of this manual will focus on the HP 3000 Telnet/iX
product. For more information on DTC Telnet Access, see Using
HP OpenView DTC Manager and the DTC Planning
Guide.
Figure 1-3 DTC Telnet Access
