The key information in each log message is the log class and
the location code number, which uniquely identify the logging message
for that entity, and the Parm.
You use these numbers to find the explanation and action in the
tables in this section and other sections of this manual. The actions
given should be performed. Only if there is no clear error reported
or the recommended action fails should system level troubleshooting
be performed. When the system level tests are done, it is advisable
to use the configuration files that have most of the logging classes
configured for the console. This saves having to format the log
files for the log messages received during the test. Informative and Non-Critical Errors |  |
The Network Transport logs all normal or informative events
to CLAS0005. Because of the high number generated, messages for
this class are not normally recorded, even to the disk log file.
However, if any of the normal events encounters an error condition,
an additional log message is generated that is recorded with the

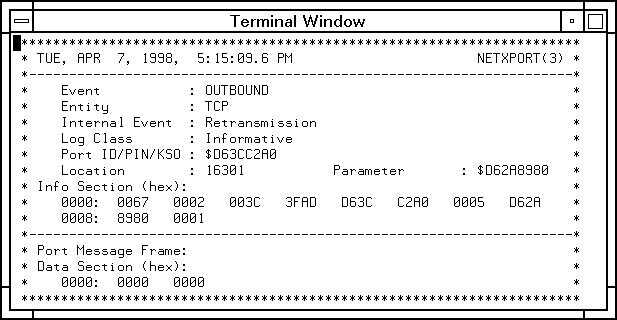

log file. This is CLAS0003, non-critical error. An example of log class 3, non-critical error, is shown in
Figure 19-2 “Class 3, A Non-Critical Transport
Error ”. This example shows
a non-critical, or Class 3, log message for TCP. The first part
describes the log message, including the event, the entity, the
internal event and the log class. In Figure 19-2 “Class 3, A Non-Critical Transport
Error ”, the internal event is retransmission
which indicates that there was an attempt to retransmit a TCP packet.
The parameter number indicates the sequence number of the packet
that was retransmitted. Also check the explanation and action listed
under the Location Code number which is 61 in the example. The TCP
PM section describes the protocol module Location Code. Figure 19-2 Class 3, A Non-Critical Transport
Error Statistics Logging Example |  |

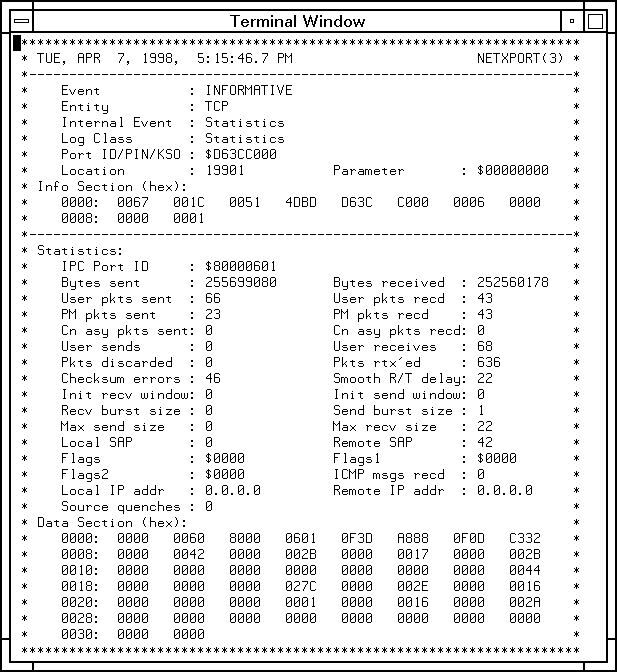

An example of log class 6, statistics, is shown in Figure 19-3 “Logging Statistics Example”. Figure 19-3 “Logging Statistics Example” shows a statistics log message for TCP.
This example shows an informative, or Class 3, log message for TCP.
The first part describes the log message, including the event, the
entity, the internal event and the log class. The internal event
is Statistics, which indicates that the logging message contains
statistical information. For more information check the log file
of the remote node. Figure 19-3 Logging Statistics Example The key information in each log message is the log class and
the location code number, which uniquely identify the logging message
for that entity, and the parameter. You use these numbers to find
the explanation and action in this section and other sections of
this manual. The "Statistics:" section displays
the following fields: IPC Port ID.
Gives the address of the NetIPC port associated with the TCP (or
PXP) protocol module for this connection. This is the number to
use in matching a TCP/PXP Statistic log message to a NetIPC log
message. Look for the identical number called the Socket Port ID
in the NetIPC log message. Bytes sent/received. Shows
the total number of bytes transmitted or received by the PM. User pkts sent/recd. Shows
the number of packets sent or received. May be more than the number
of User Sends/Receives because TCP may need to fragment the message
into link-size packets. PM pkts sent/recd. Shows
the number of non-data carrying packets sent or received, such as
window updates and acknowledgments. Cn ass pkts sent/recd. Shows
the number of connection assurance packets sent or received. A large
number of these indicate that the connection is idle for long periods
of time. User sends/receives. Shows
the number of messages sent or received. Pkts discarded/rtx'ed. The
number of packets discarded or retransmitted. If there is a problem
with the connection, it may be reflected here by an extremely high
number for one of these fields. Check for Class 3 logging messages;
refer to the specific location code for more information. Checksum errors. Shows the
number of checksum errors for this connection. Check for Class 3
logging messages; refer to the specific location code for more information. Smooth R/T delay. Shows the
observed delay (in milliseconds) required to receive acknowledgments
from the remote node. This number is used by TCP to dynamically
calculate the retransmission timer. Init recv/send window. Shows
the size of the window used for flow control. The size varies for
each service. Recv/Send burst size. Shows
the burst size for the receiver and the sender. This value is specified
with the IPCCONNECT
used to initiate the connection. Max send/recv size. Shows
the maximum message size for the receiver and the sender. This value
is specified with the IPCCONNECT
used to initiate the connection. Local/Remote SAP. Shows the
TCP Service Access Point address for the local and the remote node.
If you do not know which application to check on the remote node,
use these numbers (reversed) to find the matching PM in the log
file for the remote node. Specify a time range when formatting the
remote node log file to narrow the search. Flags/Flags1/Flags2. Internal
state flags. ICMP msgs recd. Total number
of ICMP messages that this connection has received from the IP module. Local/Remote IP addr. Shows
the IP address for the local and remote node. Source quenches. Shows the
number of times this connection has been quenched. A connection
is quenched when it receives a source quench ICMP message from IP.
|
