Logging allows you to store in a log file all output from
a process or operation that takes place on configured nodes. You
can redirect output to a log file with the LOG
command and direct output solely to the screen with the LOGRESET
command. These two commands may be used either inside or outside
a script file. Refer to the pages that follow for more information
on these two commands. When you are in logging only mode, output
will be directed to the log file and to the screen. This capability
enables you to respond with input from the keyboard since the scripting
mode is not activated.
Accessing Log File |
 |
The log file containing the output will reside on the management
node (where NetCI is installed) in the user.account
configured for this node. For example, when you enter
NetCI>Y PLAY SCRIPT1 FINANCE |
NetCI executes a script file called SCRIPT1
on node Y. If you recall our sample
internetwork, node K is the management
node. If you also recall, the script file called SCRIPT1
(refer to "Writing and Executing Script Files")
redirects output to the log file called LOGFILE1.
When you execute SCRIPT1 on node
Y with PLAY,
the output will be stored in LOGFILE1
on node K in the operator.sys
account.
Example

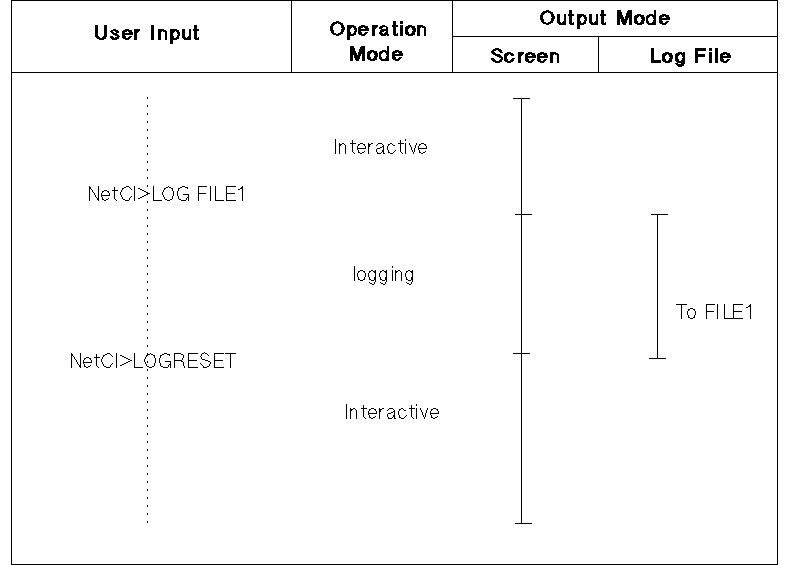

Figure 8-5 “Logging Activated” shows logging
being activated with input from the keyboard and output to both
the screen and to FILE1. The straight
line under Output Mode in the example indicates when and how long
the output is redirected to the screen and/or to the FILE1.
Notice how LOGRESET returns output
back to the screen.
Figure 8-5 Logging Activated
![[Logging Activated]](img/gfx21.gif)
