Figure 1-4 “Compile-Time and Link-Time Events” summarizes the steps in creating an executable
ALLBASE/SQL FORTRAN program from the files created by the
FORTRAN preprocessor.

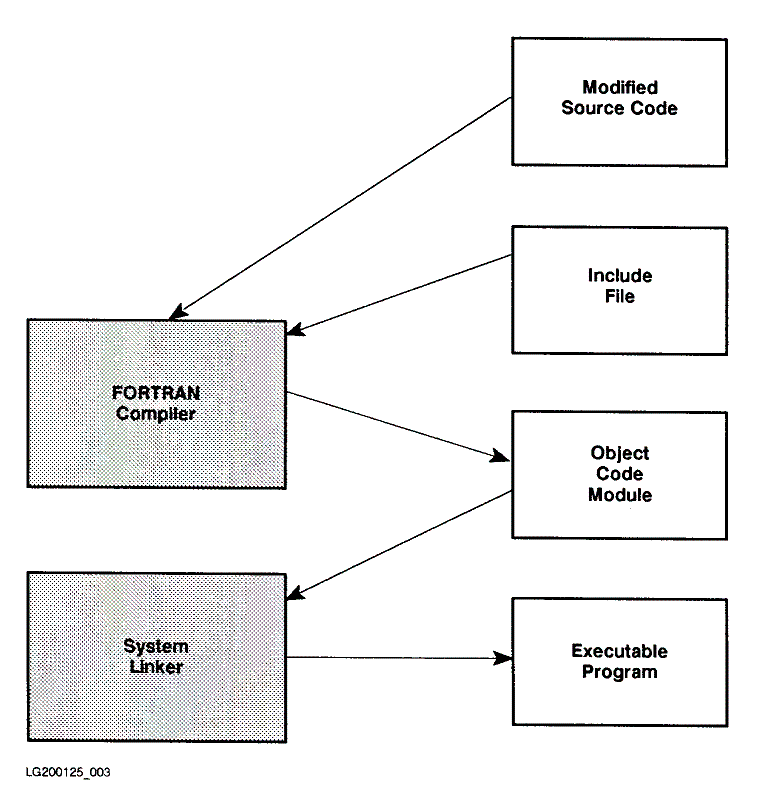

Figure 1-4 Compile-Time and Link-Time Events
You submit to the FORTRAN compiler a modified source code file
and the related include file(s) created by the preprocessor.
The compiler then generates an object code file.
By default, any object code file has a .o file extension.
To convert one or more object code files into an executable
program, you link them by invoking the linker. This step
creates an executable program file. Refer to the Chapter "Using
the ALLBASE/SQL FORTRAN Preprocessor" for more information on
compiling and linking.
To convert these object code files into an executable program,
link them after compilation by invoking the HP-UX linker. This
step creates an executable program file. The linker is
automatically invoked after compilation unless the -c compile
only option is used.
If you want to link multiple object code modules together
to form one executable program, list the object code modules
following the FORTRAN compiler command, followed by the library
options. If each of the object code modules has a .o file
extension, the module will not be recompiled. If you do not
use the -o compiler option to specify a specific output file
name for the linked output, a file named a.out is created
by default.
In the following example, an executable program named
someprog.r is created after the FORTRAN preprocessor
stores a module, somemod, in a DBEnvironment, somedbe:
login: pgmr1
.
.
$ psqlfor somedbe -m somemod -i mysource.sql -p mysource.f
.
.
$ fc mysource.c -lsql -lcl -lportnls -o someprog.r
|
The options used are:
-lsql, to link the ALLBASE/SQL runtime library, in /usr/lib/libsql.a.
-lcl, to link the Pascal runtime library, in /usr/lib/libcl.a.
-lportnls, to link the native language routines, in /usr/lib/libprotnls.a.
-o, to create the executable output file someprog.r
 |
 |  |
 |
 | 300/400: Compiler command options differ for Series 300 Series
400 systems.
login: pgmr1
.
.
$ psqlfor somedbe -m somemod -i mysource.sql -p mysource.f
.
.
$ fc mysource.f -lsql -lheap2 -lportnls -lpc -o someprog.r
|
The options used are: -lsql, to link the ALLBASE/SQL runtime library, in /usr/lib/libsql.a.
-lheap2, to link the heap managemnet routines, in /usr/lib/libheap2.a.
-lportnls, to link the native language routines, in /usr/lib/libprotnls.a.
-lpc, to link the Pascal runtime library, in /usr/lib/libpc.a
-o, to create the executable output file someprog.r
|
 |
 |  |
 |
