This section covers the steps to start or stop Samba/iX.

Starting Samba/iX

Before you start to run Samba/iX server or client components, you should have set up the TCP/IP networking on your HP 3000 system as well as your PC. On the HP 3000 system side, you should have a proper IP address and subnet mask configured in NMMGR as well as NETCONTROL START successfully executed. You must choose to start SMBD and NMBD either as listener jobs or under control of INETD.

Disable Resource Sharing

If your system has NBDAEMON.PUB.HPLANMGR running, then SMBD and NMBD will not be able to use ports 137 and 139 as NBDAEMON already binds to them. The workaround solution is to stop the PDSERVER process. The NBMON and NBDAEMON processes will not start because of this workaround. This can be done by modifying the file PDSSERV.NET.SYS by changing the line 7 from 1 to 0. This will setup PDSSERVE for non-reserved servers.

The following shows the steps of making non-reserved servers:

Modify the file PDSSERV.NET.SYS and change the line 7 from 1 to 0.

Shutdown the network.

Stream JCONFJOB.NET.SYS.

Start the network back up.

The command nscontrol status=services should show non-reserved PDSERVERs.

Verify Link Configuration

The default assumes that LAN link configuration in NMMGR is SYSLINK. You need to run the following command to get the IP address and subnet mask of your HP 3000 system; you will need this information for future Samba/iX configuration file updates with the "interfaces" parameter.

Logon as manager.sys

Enter the command Netcontrol status; net=LAN1

The following example displays when you run the command netcontrol status; net = lan1.


     NETWORK NAME:       LAN1

     NETWORK IP ADDRESS:  $0F0DC750 15.13.188.80

     NETWORK SUBNET MASK: $0FF000000 255.0.0.0

Add PM Capability

To access share security modes, both samba and mgr.samba user accounts should have PM capabilities.

Logon as manager.sys

Add PM capability to samba account

Add PM capability to mgr.samba user

Starting SMBD and NMBD Listener Jobs

Logon as mgr.samba

Copy the sample configuration file samp-smb.conf, samp-printcap and samp-user.map to smb.conf, printcap and user.map. Modify the entries to suit your Samba/iX environment. The samp-smb.conf, samp-princap and samp-user.map files reside in the /usr/local/samba/lib directory.

Check your Samba/iX configuration files with TESTPARM utility. The TESTPARM utility resides in the /usr/local/samba/bin directory. Run the following command:
shell/ix> testparm /usr/local/samba/lib/smb.conf.

Start your SMBD listener and NMBD server.

Use the jobs supplied as JSMB.SAMBA.SYS and JNMB.SAMBA.SYS and stream them.

Use SHOWJOB to see if the jobs stay alive, it can look as follows:


     JOBNUM     STATE     JIN     JLIST     JOB NAME
     #J30       EXEC      10S     LP        NMBMON,MGR.SAMBA
     #J31       EXEC      10S     LP        SMBMON,MGR.SAMBA

Starting Samba/iX Under the INETD Control

If you choose to run SMBD and NMBD processes under control of INETD, you should have new entries in SERVICES.NET.SYS and INETDCNF.NET.SYS and then you have to create symbolic links to make SERVICES.NET.SYS link to /etc/services and INETDCNF.NET.SYS symbolic links to /etc/inetd.conf respectively. Perform the following steps:

Logon as manager.sys.

Copy SERVSAMP.NET.SYS file to SERVICES.NET.SYS if SERVICES.NET.SYS doesn't exist. The following two entries should exist in file SERVICES.NET.SYS:
```
 nmbp 137/udp

 smbp 139/tcp

```

Copy INCNFSMP.NET.SYS file to INETDCNF.NET.SYS if INETDCNF.NET.SYS doesn't exist, the following two entries should exist in file INETDCNF.NET.SYS:


 nmbp    dgram   udp   wait   MGR.SAMBA   /SYS/SAMBA/NMBD   nmbd

 smbp    stream  tcp  nowait  MGR.SAMBA   /SYS/SAMBA/SMBD   smbd

Use the following two commands to create symbolic links to make SERVICES.NET.SYS link to /etc/services and INETDCNF.NET.SYS links to /etc/inetd.conf, respectively:
```
 :newlink /etc/services, /SYS/NET/SERVICES

 :newlink /etc/inetd.conf, /SYS/NET/INETDCNF

```

Stream JINETD.NET.SYS to start SMBD listener and NMBD server
(or use INETD -c to reread configuration file if INETD is already running.)

Use SHOWOUT JOB= Jobnumber

Print Oxxx.OUT.HPSPOOL to check for any problems in the spool files.

In case of problems, check for the job listings for useful error messages and look into the Samba/iX log file /usr/local/samba/var/log.smb and log.nmb for hints. You can control the amount of log messages with the "debug level" directive inside the config file.

Stopping Samba/iX

It is important to shutdown Samba/iX before bringing the system down. You can use the following commands to stop Samba/iX:

Use SHOWJOB to see if the jobs stay alive, it can look as follows:


     JOBNUM     STATE     JIN     JLIST     JOB NAME
     #J30       EXEC      10S     LP        NMBMON,MGR.SAMBA
     #J31       EXEC      10S     LP        SMBMON,MGR.SAMBA

Use the following two commands to stop Samba/iX:


     :abortjob          #smbjobnumber
     :abortjob          #nmbjobnumber

NOTE: Clients connected and writing to files will loose data if an abortjob is done with clients active.

Initial Test With smbclient Utility

The smbclient utility provides access to SMB servers with an FTP-like user interface. You can run smbclient utility on POSIX/Shell environment.

Logon to your MPE system as mgr.samba:


     : sh.hpbin.sys

     shell/iX> cd bin

     shell/iX> smbclient -L <sambaserver>

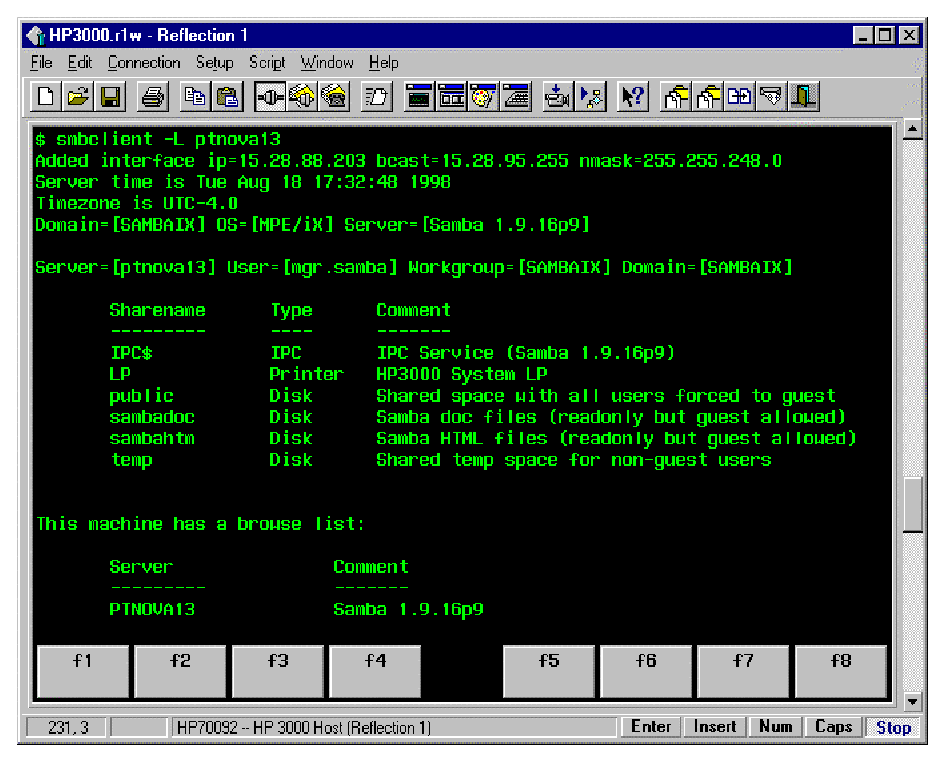

This command should display a list of available shares (services) that matches your configuration file. If NMBD is running, a list of workgroups and related computers that NMBD could find on your network/subnet will be displayed, see Figure 7-9 "smbclient for MPE/iX (1)".

Figure 7-9 smbclient for MPE/iX (1)


 shell/iX> smbclient \\\\<sambaserver>\\sambadoc -N -c help

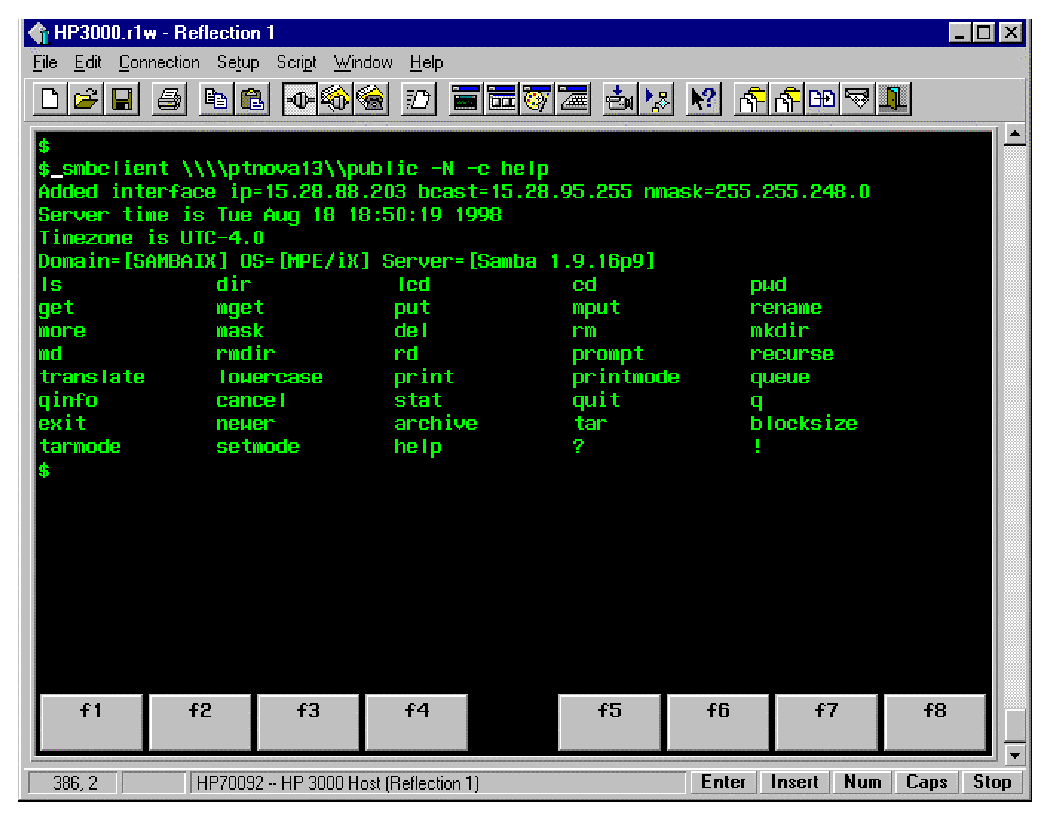

This command should connect to the sambdoc share on your HP 3000 using -N to suppress password prompt and effectively become guest user and display the contents of on-line help screen of smbclient, see Figure 7-10 "smbclient for MPE/iX (2)".

Figure 7-10 smbclient for MPE/iX (2)

NOTE: All smbclient examples used the -c option to specify the command on the command line. The smbclient program has an interactive mode which looks like FTP. Due to limitations of the select() system call on MPE/iX, the interactive mode does not yet work properly. At present, it can be worked around by using the -c option of smbclient

Initial Test From a PC Client at DOS Prompt

You can open a DOS command window and issue the command line using the following commands for initial test from a PC client:


 C:\> net view\\servername

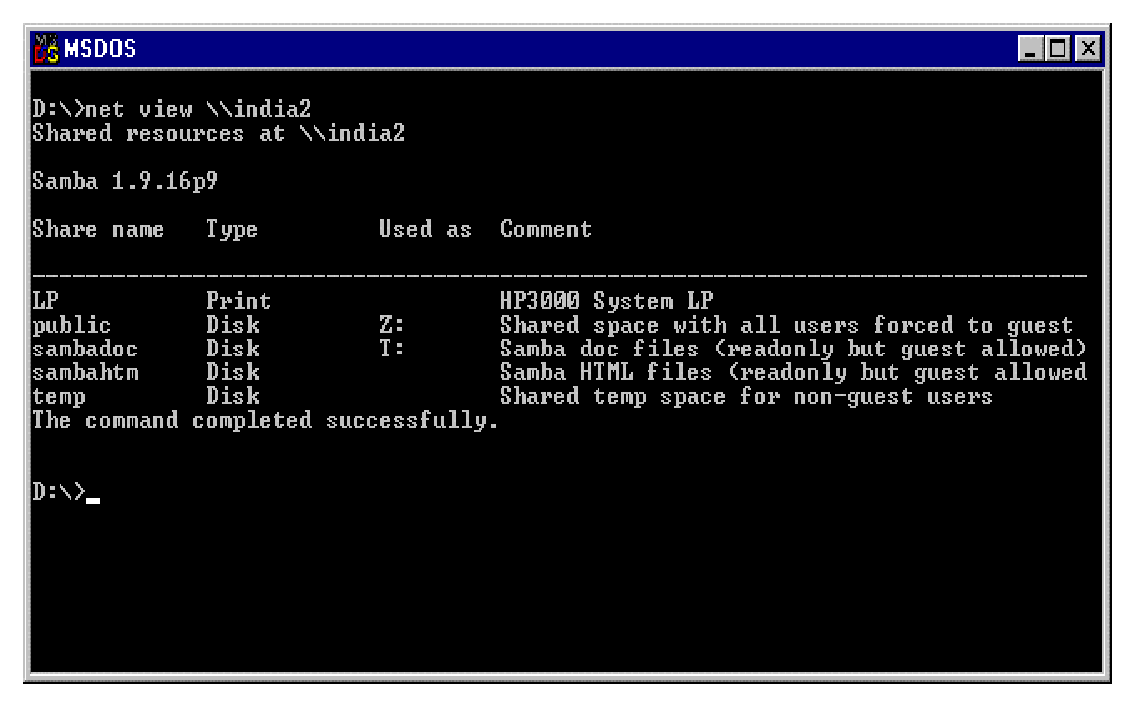

This command, will display a list of available shares for the server, see Figure 7-11 "Display Available Shares From a PC Client".

Figure 7-11 Display Available Shares From a PC Client

If you want to display a list of available shares on the Samba/iX server named HP 3000; enter the following command at the DOS prompt:Example: C:\> net view \\hp3000


 C:\>net use x:\\servername\servicename

This command will connect to a network drive X by entering the sharename \\servername\servicename.

If you want to connect to drive letter "X" from your PC to the "Sambdoc" service on Samba/iX server named "HP 3000", type the following command at the DOC prompt:

Example: C:\> net use x: \\hp3000\sambdoc
