Some keys on an IBM 3278 have no corresponding key on an HP terminal.
Sometimes, you can substitute keys on an HP terminal for keys on
an IBM terminal. This section describes the differences and similarities
between the keys on an HP terminal and the keys on an IBM 3278 display
station. Table 5-1 “IBM and HP Keyboard Functions” compares the keyboard functions
of IBM and HP terminals. Table 5-1 IBM and HP Keyboard Functions IBM 3278 Keyboard Function | HP Terminal Keyboard Function |
---|
[ALT CURSR] | Not available | Audible click | Not available | (BACKSPACE) moves the cursor one column to
the left. If the cursor is in column 0, it puts the cursor in the
last character position on the screen (bottom right). | [BACKSPACE] moves the cursor one column to the left. If the cursor
is in column 0, it remains there. | (BACKTAB)moves the cursor to the previous unprotected
field. | [SHIFT]-[TAB] operates on one line at a time. If a field extends over
three lines, and your cursor is at the end of the field, one SHIFT]-[TAB] moves the cursor to column 1 of the same row; a second [SHIFT]-[TAB] moves the cursor to column 1 of the previous row; and
a third [SHIFT]-[TAB] moves the cursor to the start of the field. If the first character
of a field is in the same row as your cursor, [SHIFT]-[TAB] works just like the (BACKTAB) key on a 3278. | [CURSR BLINK] | Not available | [CURSR SELECT] | Not available | [DEV CNCL] | Not available | [DUP] | Not available | [ERASE EOF] Puts nulls in the character position occupied by the cursor
and all later character positions in the field (if the cursor is
within an unprotected field). Sets the MDT for the field on. If
the cursor is within a protected field, [ERASE EOF] inhibits input and does not change any characters. | [CLEAR DISPLAY] for a 264x terminal or [CLEAR LINE] for a 23xx/262x terminal puts blanks in the character
position occupied by the cursor and all later character positions
in the field (if the cursor is within an unprotected field). If
the cursor is in a protected field or on an attribute character
when you press [CLEAR DISPLAY], it moves the cursor to the start of the next unprotected
field and clears that field and subsequent fields. It also sets
the MDT if the field was not already blank. | [ERASE INPUT] sets all unprotected character positions to nulls, resets
the MDT to 0, and resets the cursor to the first position on the screen. | [CLEAR DISPLAY] clears and fills with blanks (or nulls, on a 700/94 terminal
with null support) all unprotected fields, from the cursor position
to the end of terminal memory. It sets the MDT if the field was
not already null. | [FIELD MARK] | Not available | [IDENT] | Not available | [INSERT] inserts new characters at the cursor position. Shifts
all characters from the right of the cursor position one position
to the right until the field is full. After that, [INSERT] inhibits input | [INSERT CHAR] inserts new characters at the current cursor position.
Shifts all characters from the right of the cursor one position
to the right. Characters that are moved past the right margin of
the screen are lost. Therefore, you are limited to inserting one
row of characters at a time. | [PRINT] | Available as a softkey function (see Chapter 2 “Configuring Pass Thru”) | (RETURN) returns the cursor to column 0
of the following line on the screen. If you are on the last line,
this key moves the cursor to column 0 of the first line. | [RETURN] key (with auto-linefeed set) returns the cursor to column
0 of the following line on the screen. | [SYS REQ] | Available as a softkey function (see Chapter 2 “Configuring Pass Thru”) | (TAB) moves the cursor to the start of
data in the next unprotected field. | [TAB] moves the cursor either to the start of data in the next
unprotected field or to the first position of the next row if the
field wraps multiple lines and the HP terminal supports MDTs (currently
2624, 2625, 2394, and 150). | [TEST/SRK] | Available as a softkey function (see Chapter 2 “Configuring Pass Thru”) |
HP Terminal Keys that Function Differently in Pass Thru |  |
The following keys do not perform their normal functions in
Pass Thru: The [BREAK] key is always disabled. Use the EXIT softkey to end Pass Thru for your terminal. Use [CTRL]-R to recover from a hard reset. The [TAB] key moves the cursor to the next unprotected field. Use
the [CLEAR DISPLAY] key to clear all unprotected fields from the screen. The [CTRL]-Y function is ignored. Use the EXIT softkey to end Pass Thru for your terminal. Use the [ENTER] key instead of the [RETURN] rather than in line mode. In Pass Thru, the [RETURN] key only moves the cursor; no data is transferred to the
host. To send data through the HP 3000 to the IBM host, you must
press [ENTER] or a softkey corresponding to one of the following IBM
3278 keys: [PA1], [PA2], [PA3], [CLEAR], or [SYS REQ].
Function Keys (Softkeys) |  |
A set of eight keys on HP 3000 terminals, called function
keys or softkeys, can be configured
to perform various terminal operating functions, such as I/O device
operations and data transfer operations. The function keys are [f1], [f2], [f3], [f4], [f5], [f6], [f7], and [f8]. SNA IMF provides a set of default functions for your softkeys.
You can use the default configuration, or you can specify a different
set of softkey functions in your PTCONFIG file when you configure
Pass Thru. For more information on softkey functions and configuration,
see Chapter 2 “Configuring Pass Thru” If you are using a 264x terminal, you can get an SNA IMF Function
Key Template (7120-8716) to label the functions of your softkeys. When you press a function key, SNA IMF sends an attention
ID (AID) code to the IBM host, telling it what key you pressed.
The AID codes associated with the function keys on your HP terminal
are the same AID codes associated with certain keys on an IBM 3278
display station. The AID codes generated by SNA IMF are listed in Appendix E “3270 Bit Assignment and Character
Translation Tables” Default Softkey FunctionsThe default softkey functions on HP 23xx, 264x, and 262x terminals

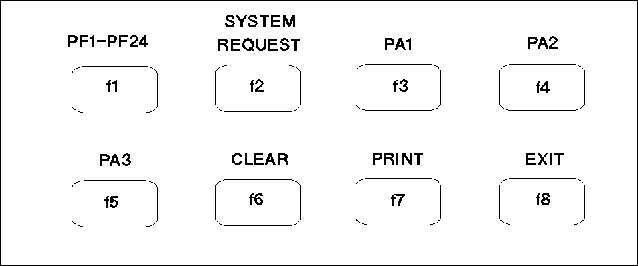

are shown in Figure 5-1 “Default Softkey Functions”. These functions correspond
to certain keyboard functions on an IBM 3278 display station. Figure 5-1 Default Softkey Functions Table 5-2 “Default Softkey Functions” describes the default softkey functions for
23xx, 262x, and 264x terminals. Table 5-2 Default Softkey Functions Key | Function |
---|
[f1] | PF1-PF24 — The [f1] key represents the 24 Program Function (PF) keys of an IBM
3278. When you press [f1], the current contents of your terminal's buffer
is temporarily stored, and the following prompt appears on your
screen: PROGRAM FUNCTION KEY NUMBER? Respond by entering the number of the IBM PF key you
want; then press the [ENTER] key. The modified, unprotected data from your screen image
is sent to the host, along with the AID of the PF key you specified. | [f2] | SYSTEM REQUEST — The [f2] key sends a special protocol sequence to the host. Use
this key to communicate with the System Services Control
Point (SSCP). The SSCP controls the resources of an
SNA domain and enables you to do such things as log on and off. | [f3], [f4], [f5] | (PA1, PA2, and PA3) — The host application program defines
the functions of these keys. When you press the [f3], [f4], or [f5] key, SNA IMF notifies the host that you pressed that key. | [f6] | (CLEAR) — Pressing [f6] clears the screen, moves the cursor to the home position, and
sends a CLEAR KEY PRESSED message to the host. | [f7] | (PRINT) — Pressing the [f7] key makes a copy of the internal screen image and sends
it to an output file. The format of the internal screen image is
determined by the format parameter in the info string when Pass Thru is started.
(See Chapter 3 “Starting Pass Thru”) | [f8] | (EXIT) — Pressing the [f8] key at a terminal ends Pass Thru only for that particular
terminal and returns the terminal to the control of MPE. |
User-Defined Softkey FunctionsAn IBM 3278 Display Station has 24 function keys, and an HP
terminal has 8 function keys. Although HP terminals do not have
as many function keys as IBM terminals, an HP feature called rolling
softkeys allows you to create several levels of softkey
functions, so a function key can perform different functions at
different levels. The rolling softkeys feature lets you map your
HP terminal function keys to the function keys on an IBM 3278 display
station. The first HP terminal function key ([f1]) is reserved for the main softkey menu; you can define
the functions of the other seven function keys in the PTCONFIG file.
See Chapter 2 “Configuring Pass Thru” for more information about configuring
your rolling softkeys. SNA IMF provides a set of default functions for your softkeys.
(See "Default Softkey Functions," earlier in this
chapter.) You can use the defaults, or you can configure a set of
softkeys that suits your own needs. The rolling softkeys feature allows you to do the following: Configure a function key to perform
a single softkey function, or configure it as a menu key, which
brings up a new set of softkey functions for all the function keys. Label the functions of your softkeys in windows
on the terminal screen. On certain HP terminals, double the number of emulated
softkeys by using the [SHIFT] key to produce uppercase and lowercase softkeys.
The rolling softkeys feature allows you to map several sets
of variable softkeys to your 8 function keys. For a terminal that
supports shifted function keys (a 16-function key terminal), you
can define up to 6 levels of softkeys. For a terminal that does
not support shifted function keys (an 8-function key terminal),
you can define up to 12 levels of softkeys. In each level, you must
define at least one softkey for changing levels. The NEXT and LEVELn softkey functions are for changing levels. Table 5-3 “User-Defined Softkey Functions” describes the user-definable softkey
functions for 23xx, 262x, and 264x terminals. For more information
on softkey functions and configuring your function keys, see Chapter 2 “Configuring Pass Thru” Table 5-3 User-Defined Softkey Functions Key | Function |
---|
CLEAR | Emulates the IBM 3278 [CLEAR] key. Moves the cursor to home position, clears the screen,
and sends a CLEAR KEY PRESSED message to the IBM host. | CLPRT | Closes your local print spool file (LOGIMF)
and prints it while your session is still active. Then a new LOGIMF
file is opened. If you need to send your output to a disc file instead
of a spool file, enter the following file equation at the MPE colon
prompt before you start your Pass Thru session: (This is the only
file equation that works.) | | FILE LOGIMF,NEW;DEV=DISC;REC=-133,,,ASCII;NOCCTL;SAVE | EXIT | Ends Pass Thru for your terminal only
and returns the terminal to MPE control. | LBNULL | Tells Pass Thru to convert leading blanks
to nulls before transmitting data to the IBM host. For more information,
see "Leading Blanks, Trailing Blanks, and Trailing Nulls," in Chapter 2 “Configuring Pass Thru” | LEVELn | Rolls the softkeys to the specified level.
The value of n can be 1 through 6, for terminals that support shifted
function keys, or 1 through 12, for terminals that do not support
shifted function keys. If level 12 does not exist, this function rolls
the function keys over to level 1. | MENU | Displays the Pass Thru softkey menu and
prints this prompt on your terminal's screen: ENTER 1-24, PA1, PA2, PA3, CLEAR, SRK, PRINT, CLPRT, and EXIT. Answer this prompt by entering the number of
an IBM PF key or the character string for the softkey you want. | MPEXLCIP | (SNA IMF/XL only)
Suspends your Pass Thru session and creates an MPE XL command interpreter
process. A colon prompt appears on your screen, and you can enter
MPE commands. To return to your Pass Thru session, type EXIT at the MPE colon prompt. See "Using the
MPE Command Interpreter from Pass Thru," later in this
chapter. | NEXT | Rolls the function keys to the next level
of softkey functions. | PA1, PA2, and PA3 | Specifying one of these keys notifies the host
that you pressed that key. The IBM host application defines the
functions of these keys. | PF1-PF24 | These softkey functions correspond to
the 24 PF keys of an IBM 3278 display station. | PRINT | Sends a copy of the internal screen image
to an output file. The format of the internal screen image is determined
by the format parameter you specify in the info string when you start
Pass Thru. | RESET | Emulates the 3278 [RESET] key. It unlocks the keyboard and enables input. This function
issues the RESET3270 intrinsic, described in the SNA IMF Programmer's
Reference Manual. | STATUS | Displays status information about your
LU-LU session on your terminal screen. See "Displaying
SNA Session Status Information," later in this chapter | SRK | (System Request Key) Pressing the SRK key sends a special protocol sequence to the host.
Use this key to communicate with the System Services Control Point (SSCP).
The SSCP controls the resources of an SNA domain and enables you
to do such things as log on and off. | TBNULL | This key tells Pass Thru to send trailing blanks
for non-null characters sent by the IBM host. See "Leading
Blanks, Trailing Blanks, and Trailing Nulls," in Chapter 2 “Configuring Pass Thru” | TNBLANK | This key tells Pass Thru to convert trailing
nulls to blanks before sending data to the IBM host. See "Leading
Blanks, Trailing Blanks, and Trailing Nulls," in Chapter 2 “Configuring Pass Thru” |
Chapter 2 “Configuring Pass Thru” tells you how to specify your
own rolling softkeys by creating a configuration file called PTCONFIG.
If you use another name for your configuration file, you must equate
that name to the name PTCONFIG using an MPE file equation. You can assign
softkey functions to keys [f2] through [f8]. You cannot define the [f1] function key, because it is reserved for the softkey menu;
however, you can define the shifted [f1] key. In the PTCONFIG file, you can also define the softkey labels
that appear on your screen, telling you which functions your softkeys

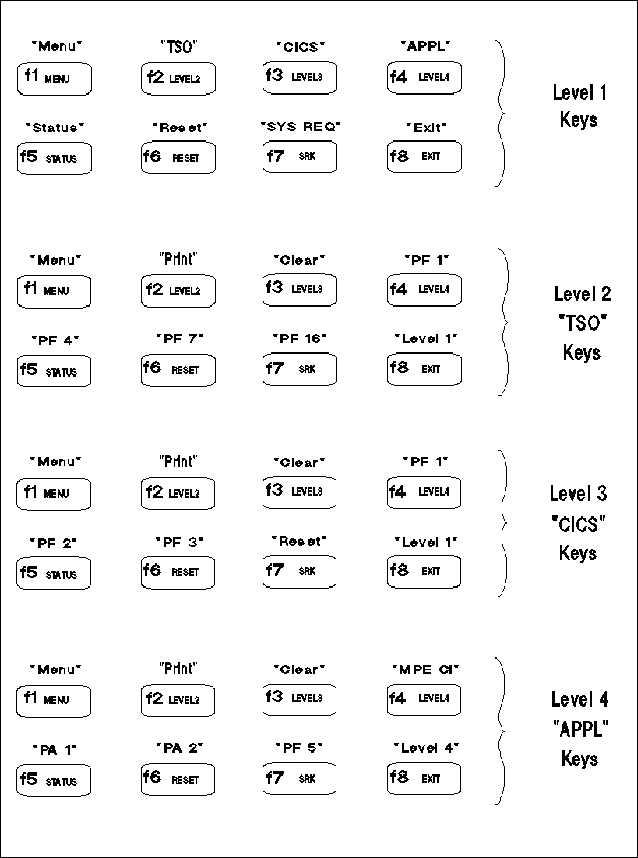

have at the current level. Figure 5-2 “Example User-Defined Softkeys Functions” illustrates an example softkey
configuration. This configuration defines four levels of softkeys.
The lowest level (level 1) has softkeys that take you to the other
three levels. Each of the upper levels has one softkey that takes
you back to the lowest level. The [f1] key is the menu key in all four levels. The upper three levels of softkeys in this configuration correspond
to three IBM host applications: TSO, CICS, and a user application
called APPL. Each application requires a slightly different set
of softkeys, so a different level is assigned to each application.
In this example, only 8 softkeys are defined in each level; however,
if your terminal supports shifted function keys, you can define
up to 16 softkeys for each level. When you start Pass Thru, the softkey labels on your screen
indicate that you are on level 1. If you started Pass Thru to communicate
with CICS, you would press the softkey labeled "CICS." The
function assigned to the "CICS" softkey is LEVEL3, so pressing the softkey labeled "CICS" would
take you to level 3. The quoted strings in Figure 5-2 “Example User-Defined Softkeys Functions” are the
softkey labels configured for each softkey function. Softkey labels
appear on your screen, telling you which functions your softkeys
have at the current level. Figure 5-2 Example User-Defined Softkeys Functions Softkeys for 3270-to-5250 CommunicationWhen you use Pass Thru to communicate with an application
on an IBM AS/400, your 3270 data stream must be translated to 5250
data. The 3270 emulation software on the AS/400 provides a mapping between
Pass Thru's softkey functions and 5250 key functions. Table 5-1 “IBM and HP Keyboard Functions” lists the 5250 key functions and the 3270
softkeys that you push to send 5250 keys to the AS/400. Table 5-4 AS/400 5240 to Pass Thru 3270 Mappings 5250 Key Function | 3270 Softkeys Pressed to Select 5250
Function |
---|
Help | [PF1] | 3270 Help | [PF2] | Clear | [PF3] | Print | [PF4] | Display Embedded Attributes | [PF5] | Test Request | [PF6] | Roll Down | [PF7] | Roll Up | [PF8] | Error Reset | [PF10] | System Request | [PF11] | Record Backspace | [PF12] | [F1] through [F12] | Press [PA1], wait for system to respond, then press the desired function key
([PF1] through [PF12]). | [F13] through [F24] | Press [PA2], wait for system to respond, then press the desired function key
([PF13] through [PF24]). If your keyboard does not have keys [PF13] through [PF24], use keys [PF1] through [PF12]. For example, to send [F15], press [PA2], then [PF3]. | Field Exit | [Clear Line], then [TAB]. | Attention | [SYS REQ], then [PA1]. |
HP Terminal Keys That Are Invalid in Pass ThruDo not use the following HP terminal keys with Pass Thru: Graphic keys on the 2648A terminal. [ESC], [MEMORY LOCK], [DISPLAY FUNCTION], [NEXT PAGE], and [PREVIOUS PAGE]. [RESET] pressed once on the 2640B, 2640N, and 2640S terminal,
or the [RESET] key pressed twice within 0.5 seconds (a hard reset), on either
the 2645 or 2648 terminals. Both of these actions will cause a hard
reset.
 |  |  |  |  | CAUTION: Do not do a hard reset on an HP terminal that is
operating under Pass Thru; you may not be able to recover from it.
You can produce a hard reset in two ways. The first way is by pressing
the [RESET] key once on the HP 2640B, 2640N, and 2640S. Because Pass
Thru does not lock the keyboard on these terminals, RESET is unnecessary.
The other way to produce a hard reset is by pressing the [RESET] key twice within 0.5 seconds on either the HP
2645 or 2648 terminal. This clears the special environment created
on the terminal when Pass Thru took control. As with the first type
of hard reset, there is no guarantee of recovery. |  |  |  |  |
|
