SNA IMF Product |
 |
SNA IMF is a software product that implements the upper three
layers of SNA: the Data Flow Control, Presentation Services, and
Application layers. In other documents you may see SNA IMF referred
to as an SNA Service. An SNA Service is an
HP data communications software product, like SNA IMF, SNA NRJE,
or LU 6.2 API, which runs on top of the SNA link product.
SNA IMF stores data in the form of an internal
screen image. The internal screen image contains the
location and attributes of all the fields on the screen. It also
contains any information that has been entered into the fields.
Whenever an application or end user on the HP 3000 enters
data to be transmitted to the IBM host, or whenever the IBM host
sends data to the HP 3000, SNA IMF modifies the internal
screen image.
SNA Link Products |
 |

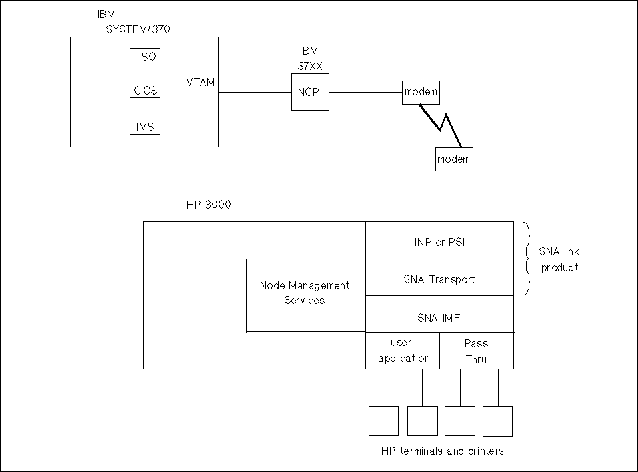

Hewlett-Packard offers three SNA link products: SNA Link/V, SNA/SDLC
Link/XL, and SNA/X.25 Link/XL. SNA link products are bundled software
and hardware products that permit a logical and physical connection
from an HP 3000 into an SNA network. An SNA link product
has two parts:
SNA Transport (software)
INP (MPE V hardware) or PSI (MPE XL hardware)
SNA Link/V has a third component: Node Management Services (software).
On MPE XL, Node Management Services is part of the Fundamental Operating
System (FOS) and is not bundled with SNA/SDLC Link/XL or SNA/X.25
Link/XL. The FOS is a collection of MPE programs, utilities, and
subsystems bundled together for one price and supplied on a Master
Installation Tape (MIT).
 |
 |  |
 |
 | NOTE: In this manual, the term SNA link product is
used when the information being given is true for all three SNA
link products. The terms SNA Link/V, SNA/SDLC
Link/XL, and SNA/X.25 Link/XL are used
when a distinction between the SNA link products is necessary. |
 |
 |  |
 |
SNA Transport emulates an SNA Type
2 node. Through the Path Control and Transmission Control layers,
it coordinates the communication sessions within the SNA network.
The hardware portion of the SNA link product is the INP
(Intelligent Network Processor) card on MPE V, or the PSI
(Programmable Serial Interface) card on MPE XL. The
INP or PSI card implements the Physical Control and Data Link Control
layers of SNA. It uses the SDLC protocol to control transmission
over the communications line.
Node Management Services (NMS) is used
by all the SNA Services (like SNA IMF and SNA NRJE) installed on
the HP 3000. NMS handles configuration, link and node level
startup and shutdown, logging, tracing, and diagnostic functions.
In both Pass Thru mode and programmatic mode, SNA IMF intrinsics call
SNA link intrinsics whenever data is sent to or received from the host.
SNA IMF and the SNA link product together implement all architectural
layers of SNA.
A separate INP or PSI card is required for each communications
line from the HP 3000 to an IBM host. With multiple INP
or PSI cards, you can connect the HP 3000 to multiple IBM
hosts, or you can run multiple communications lines to a single
IBM host.
The same INP or PSI can be used by multiple SNA Services.
The PSI card can also be used to run Network Services (NS).
The same PSI card can be used for both NS and SNA communications,
but NS and SNA cannot be run concurrently on the same PSI card.
 |
 |  |
 |
 | NOTE: The SNA link products are not supported as separate
products independent of the SNA Services. Therefore, you must order
and use SNA link products only with SNA Services. |
 |
 |  |
 |
