HP 3000 Series 9X8LX Computer Systems Getting Started

To familiarize yourself with the DTC 16iX (J2062A)

As a part of your new computer, you received at least one box containing
a Data Communications and Terminal Controller (DTC). The DTC 16iX allows
terminals, PCs, and printers to use the computer and be used by the
computer.

Front Panel Display

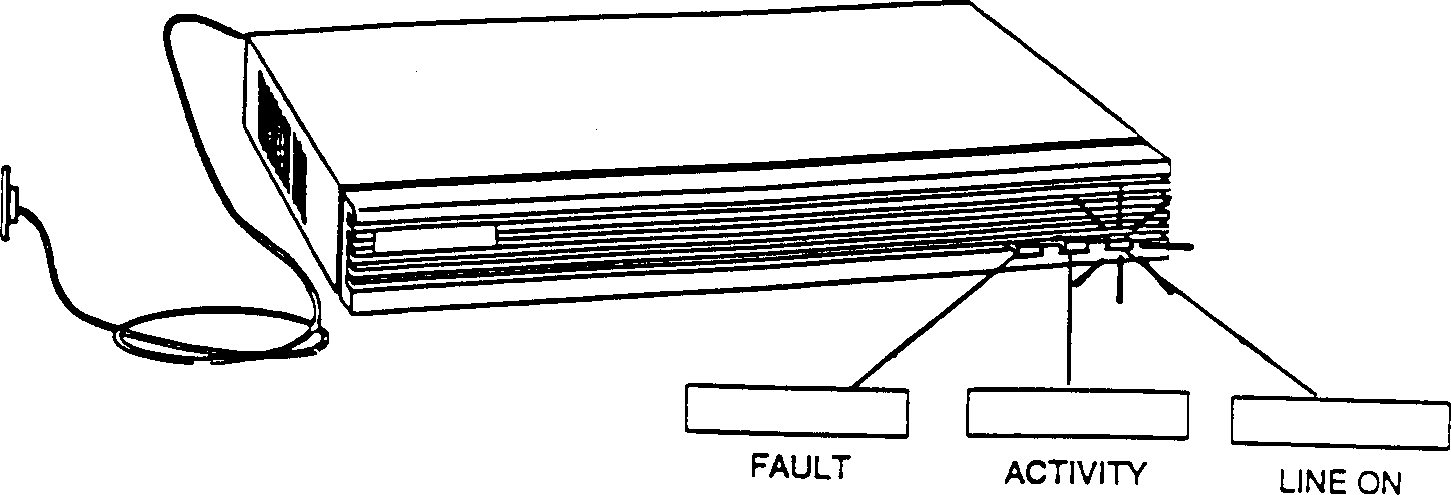

          DTC 16iX Front Panel

FAULT                 only active when there is a problem.

ACTIVITY              a fixed light when the DTC 16iX is fully
                      operational and running without a problem.  A
                      flashing light indicates software uploaded,
                      download or a self-test in progress.

LINE ON               stays lit when the power is on.

Refer the manual that accompanies the DTC 16iX for more details on
hardware operation.

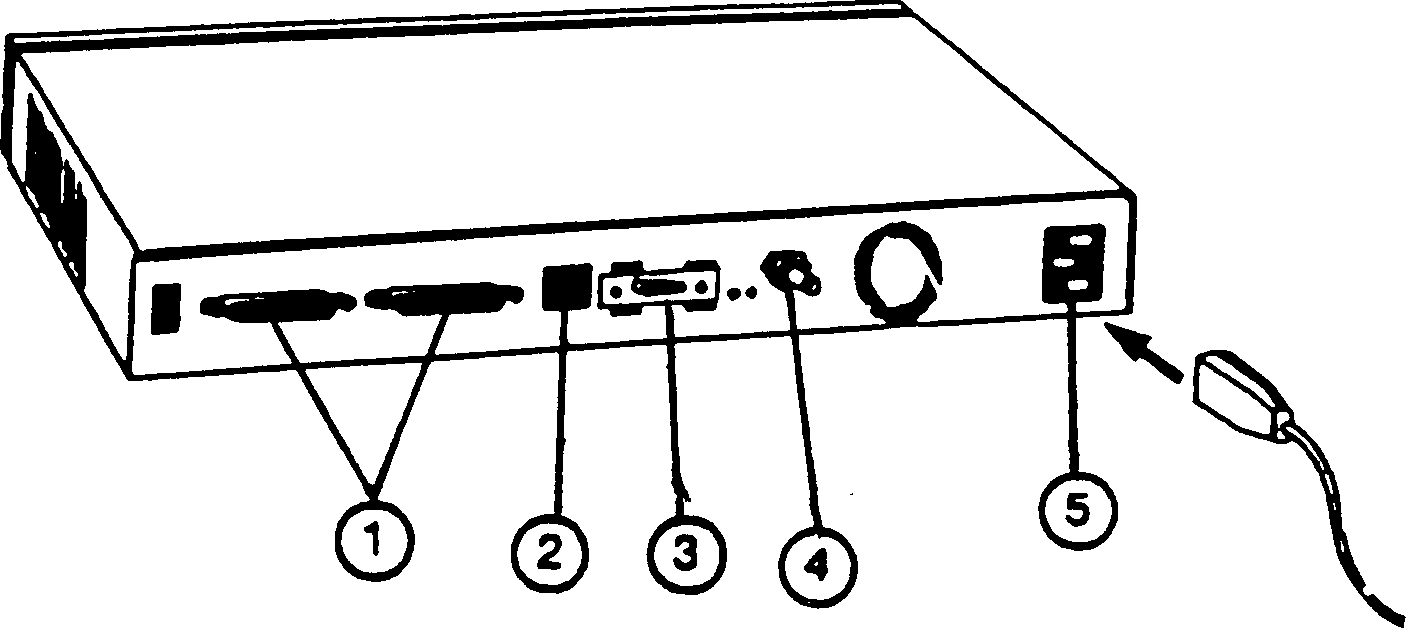

DTC 16iX Back View


          DTC 16iX Back View

1.  Junction Panel Connectors                    4.  ThinLAN Connection
2.  Diagnostics port                             5.  Power Cord Connection
3.  AUI Port
