Micro Focus COBOL Language Reference

File Section (Cont.)

For MF and XOPEN only:  The LOWLIGHT Clause

Function.

The LOWLIGHT clause specifies that the field is to appear on the screen
with the lowest intensity.

General Format.




Syntax Rule.

If the LOWLIGHT clause is specified at group level, it applies to all
suitable subordinate elementary items.

General Rule.

The LOWLIGHT clause specifies that the field is to appear on the screen
with the lowest intensity.

For MF only:  The OCCURS Clause in the Screen Section

Function.

The OCCURS clause eliminates the need for separate entries for repeated
screen items and supplies information required for the application of
subscripts or indices.

General Format.




Syntax Rules.

   1.  The OCCURS clause is not allowed at 01 level.

   2.  If USING or TO clauses apply to the item, or to any item
       subsidiary to the item, then the same number of OCCURS clauses,
       specifying the same number of occurrences, must apply to the
       receiving item.  These OCCURS clauses must not include the
       DEPENDING phrase.

   3.  If a FROM clause applies to the item, or to any item subsidiary to
       the item, either the same number of OCCURS clauses, specifying the
       same number of occurrences, or no OCCURS clauses at all, must
       apply to the sending item.  These OCCURS clauses must not include
       the DEPENDING phrase.

General Rules.

   1.  In a screen description which is subject to an OCCURS clause, the
       LINE and COLUMN clauses apply to each individual table entry.
       Thus either the LINE or the COLUMN clause should specify relative
       positioning, because if they both specify an absolute position
       every entry will appear in the same place.

   2.  If the screen item is an output field, and no OCCURS clauses apply
       to the sending item, in a DISPLAY operation the contents of the
       sending item are moved to every occurrence of the screen item.  An
       elementary item that is fully subscripted is deemed to have no
       OCCURS clauses applying to it.

   3.  If the screen item is an update field, or it is an output field
       with OCCURS clauses applying to the sending item, then in a
       DISPLAY operation the contents of each occurrence of the sending
       item are moved to the corresponding occurrence of the screen item.

   4.  If the screen item is an update or input field, then in an ACCEPT
       operation the data entered into each occurrence of the screen item
       is moved to the corresponding occurrence of the receiving item.

For MF only:  The OVERLINE Clause

Function.

The OVERLINE clause causes every character of the screen item to have a
horizontal line above it when the item appears on the screen.  The line
is within the character-position.

General Format.




Syntax Rules.

   1.  The OVERLINE clause can be used with a screen item.

   2.  If the OVERLINE clause is specified at group level, it applies to
       all suitable subordinate elementary items.

   3.  If this clause is used on a system that does not support
       overlining it has no effect.

General Rule.

The OVERLINE clause causes every character of the screen item to have a
horizontal line above it when the item appears on the screen.

For MF and XOPEN only:  The PICTURE Clause in the Screen Section

Function.

The PICTURE clause describes the length, general characteristics and
editing requirements of a screen item.

General Format.




Syntax Rules.

   1.  The PICTURE clause can include any standard editing characters.

   2.  The PICTURE clause must be used in conjunction with one or more of
       the FROM, TO or USING clauses.  The USING clause must not be used
       with either the FROM or TO clause.

   3.  PIC is an abbreviation for PICTURE.

   4.  The PICTURE clause is allowed only with elementary items.

   5.  The PICTURE clause need not be the same as the PICTURE clause of
       the data item referenced in the FROM, TO or USING clause but it
       must be such that the implied MOVE is legal.

General Rules.

   1.  The character-string describes the length and category of the
       screen item.  It is used in the same way as the character-string
       in the PICTURE clause for a data item.

   2.  We recommend that every numeric screen item either be a numeric
       edited item or contain only 9's in its PICTURE clause.  Editing
       and de-editing are applied as necessary when data is moved to or
       from the associated data item.

For MF only:  The PROMPT Clause

Function.

The PROMPT clause causes the empty character positions in the screen item
to be marked on the screen during an ACCEPT operation while the system is
ready to accept operator-keyed data into that item.

General Format.




Syntax Rules.

   1.  This clause is allowed only with input and update fields and with
       group items.

   2.  If this clause is specified at group level, it applies to all
       subordinate elementary items.

   3.  Identifier-1 must be a single-character alphabetic or alphanumeric
       data item.

   4.  Identifier-1 must not be subject to an OCCURS clause.

   5.  Literal-1 must be a one-character nonnumeric literal or a
       figurative constant.

General Rules.

   1.  If the CHARACTER phrase is not specified, the PROMPT clause is
       documentary only.

   2.  The CHARACTER phrase specifies a prompt character to be used for
       marking empty character positions.  The prompt character overrides
       the configured option.  (See your COBOL System Referencefor
       details on configuration options.)

   3.  The PROMPT clause causes the prompt character to replace trailing
       spaces in alphanumeric or free format numeric screen items.  It
       also causes the prompt character to replace leading suppressed
       digit positions in fixed format numeric edited screen items.

   4.  The PROMPT clause has no effect on fixed format, nonedited numeric
       screen items or numeric edited screen items that have no
       zero-suppression positions.

   5.  This clause has no effect if the SECURE clause is specified.

   6.  The prompt characters appearing in the screen item are changed to
       spaces upon termination of the ACCEPT operation.

For MF and XOPEN only:  The REQUIRED Clause

Function.

The REQUIRED clause specifies that the operator must not leave the screen
item empty.

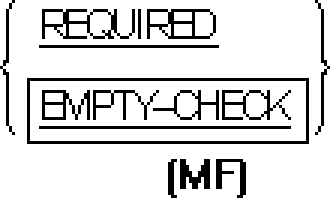

General Format.




Syntax Rules.

   1.  The REQUIRED clause is allowed only with input and update fields
       and with group items.

   2.  This clause can be specified on a group screen item, in which case
       it applies to all suitable elementary items which are subordinate
       to that item.

   3.  For MF only:    REQUIRED and EMPTY-CHECK are equivalent.

General Rules.

   1.  The REQUIRED clause takes effect during the execution of any
       ACCEPT statement that causes the screen item to be accepted
       provided the cursor enters the screen item at some time during the
       ACCEPT. Unless this clause is satisfied, terminator keystrokes are
       rejected and the cursor is repositioned to the beginning of the
       item.

   2.  To satisfy this clause, alphanumeric screen items must contain at
       least one non-space, non-prompt character; numeric screen items
       must have a non-zero value.

   3.  For update fields, the REQUIRED clause can be satisfied by initial
       data as well as by operator-keyed data.

   4.  The REQUIRED clause cannot be effective if a function key is used
       to terminate an ACCEPT operation.  (See your COBOL System
       Reference for details on configuration options.)

   5.  An error message can be configured for display on the screen if
       the REQUIRED clause is not satisfied.  (See your COBOL System
       Reference  for details on configuration options.)

For MF and XOPEN only:  The REVERSE-VIDEO Clause

Function.

The REVERSE-VIDEO clause causes the screen item to be displayed in
reverse-video.

General Format.




Syntax Rules.

   1.  The REVERSE-VIDEO clause is allowed with any screen item.

   2.  If the REVERSE-VIDEO clause is specified at group level, it
       applies to all suitable subordinate elementary items.

General Rule.

The REVERSE-VIDEO clause causes the screen item to be displayed in
reverse-video.

For MF and XOPEN only:  The SECURE Clause

Function.

The SECURE clause prevents operator-keyed data from appearing on the
screen.

General Format.




Syntax Rules.

   1.  The SECURE clause is allowed only with input and update fields.

   2.  This clause can be specified on a group screen item, in which case
       it applies to all suitable elementary items which are subordinate
       to that item.

   3.  SECURE and NO-ECHO are equivalent (MF).

General Rule.

When the SECURE clause is specified for input fields, only spaces and the
cursor appear in the screen item.  For update fields, the original
contents of the field will be displayed, but cannot be altered.

For MF and XOPEN only:  The SIGN Clause in the Screen Section

Function.

The SIGN clause specifies the position and representation of the
operational sign.

General Format.




Syntax Rules.

   1.  The SIGN clause is allowed only with input, output and update
       fields whose pictures contain the character "S".

   2.  This clause is allowed only with elementary items.

General Rule.

It is recommended that the SEPARATE option be used when the SIGN clause
is specified in a screen description.  If the SEPARATE option is not
specified, a sign denoted by "S" in a PICTURE clause appears as an
overpunch.

For MF and XOPEN only:  The SIZE Clause

Function.

The SIZE clause specifies the current size of the screen item.

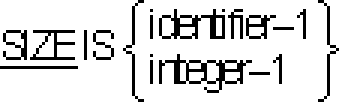

General Format.




Syntax Rules.

   1.  The SIZE clause is allowed only with elementary screen items.

   2.  Identifier-1 must be an unsigned numeric integer and must not be
       subject to an OCCURS clause.

   3.  Integer-1 must be unsigned.

General Rules.

   1.  The SIZE clause has no effect if the size specified is zero.

   2.  If the SIZE clause is specified for a numeric or numeric edited
       screen item and the size specified is not zero, the screen item is
       treated as though it were free format.  This overrides the setting
       of the configuration option.

   3.  If the size specified in the SIZE clause is less than that implied
       by the associated PICTURE or VALUE clause, only the left-hand
       portion of the screen item appears on the screen.  If the
       JUSTIFIED clause is present in an ACCEPT statement, only the
       right-hand portion of the screen item appears.  The remainder of
       the screen item can be considered to contain spaces or zeros, as
       appropriate.

   4.  If the size specified in the SIZE clause is greater than that
       implied by the PICTURE or VALUE clause for output or literal
       fields, the screen item is padded on the right with spaces.

   5.  Changing the value in identifier-1 alters the effective size of
       the screen item at run-time.  This can alter the screen positions
       of items whose descriptions follow it in the Screen Section.  (See
       the sections The LINE Clause and The COLUMN Clause earlier in this
       chapter.)

For MF and XOPEN only:  The TO Clause

Function.

The TO clause identifies the destination of data accepted.

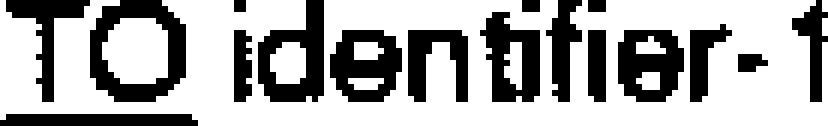

General Format.




Syntax Rules.

   1.  The TO clause, when used with the FROM clause, is equivalent to
       the USING clause, both specifying the same identifier.  It must
       not be used with the USING clause.

   2.  The identifier in the TO clause can be qualified.  If no OCCURS
       clause applies to the screen item, this identifier can be
       subscripted or indexed.  It must be defined in the File,
       Working-Storage, Local-Storage, (MF only) or Linkage Section of
       the program.

General Rules.

Executing an ACCEPT statement on a screen item whose description includes
a TO clause accepts operator-keyed data into the screen item, and then
moves that data to the associated data item.

For MF and XOPEN only:  The UNDERLINE Clause

Function.

The UNDERLINE clause causes the screen item to be underlined when it
appears on the screen.

General Format.




Syntax Rules.

   1.  The UNDERLINE clause is allowed with any screen item.

   2.  If the UNDERLINE clause is specified at group level, it applies to
       all suitable subordinate elementary items.

   3.  This clause has no effect if your screen hardware does not support
       underline.

General Rule.

The UNDERLINE clause causes the screen item to be underlined when it
appears on the screen.

For MF and XOPEN only:  The USAGE Clause

Function.

The USAGE clause specifies the format of a data item in the computer
storage.

General Format.

     [ USAGE IS] DISPLAY

Syntax Rules.

The USAGE of a Screen Section data item must be either explicitly or
implicitly defined as USAGE DISPLAY.

For MF and XOPEN only:  The USING Clause

Function.

The USING clause identifies the source of data for display.

General Format.




Syntax Rules.

   1.  The USING clause is equivalent to the TO and FROM clauses, both
       specifying the same identifier.  It must not be used with either
       the TO or FROM clause.

   2.  The identifier in the USING clause can be qualified.  If no OCCURS
       clause applies to the screen item, this identifier can be
       subscripted or indexed.  It must be defined in the File,
       Working-Storage, Local-Storage, or Linkage Section of the program.

General Rules.

   1.  Executing a DISPLAY statement on a screen item whose description
       includes a USING clause moves data from the associated data item
       to the screen item, and then displays the screen item on the
       screen.

   2.  Executing an ACCEPT statement on a screen item whose description
       includes a USING clause accepts operator-keyed data into the
       screen item, and then moves that data to the associated data item.

For MF and XOPEN only:  The VALUE Clause in the Screen Section

Function.

The VALUE clause specifies literal information for display on the screen.

General Format.




Syntax Rules.

   1.  The literal associated with the VALUE clause must be nonnumeric.
       It cannot be a figurative constant.

   2.  The VALUE clause is allowed only with elementary items that have
       no PICTURE clauses.

General Rule.

The VALUE clause specifies literal information for display on the screen.

For MF only:  The ZERO-FILL Clause

Function.

The ZERO-FILL clause causes trailing prompt characters to be replaced by
zeros instead of spaces.

General Format.




Syntax Rule.

This clause is allowed only with input and update fields that are
alphabetic or alphanumeric.

General Rules.

   1.  The ZERO-FILL clause causes trailing prompt characters to be
       replaced by zeros instead of spaces when data is moved from the
       screen item to the receiving item.  This occurs only if the
       operator enters data into the screen item.

   2.  If the receiving item has a JUSTIFIED clause, the ZERO-FILL clause
       causes leading positions left vacant by justification to be
       zero-filled.
MPE/iX 5.0 Documentation
