NS3000/iX NMMGR Screens Reference Manual

X.25 Link Configuration

The X.25 Link Configuration screen (#106) shown in figure 7-12 is
displayed when you select an NI link name and press the [Add] or [Modify]
function key at the X.25 Network Interface Link screen (figure 7-11).  It
is also displayed when you type the path name:

@NETXPORT.NI.NIname.LINK.linkname

in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI, and linkname is a configure X.25 link.

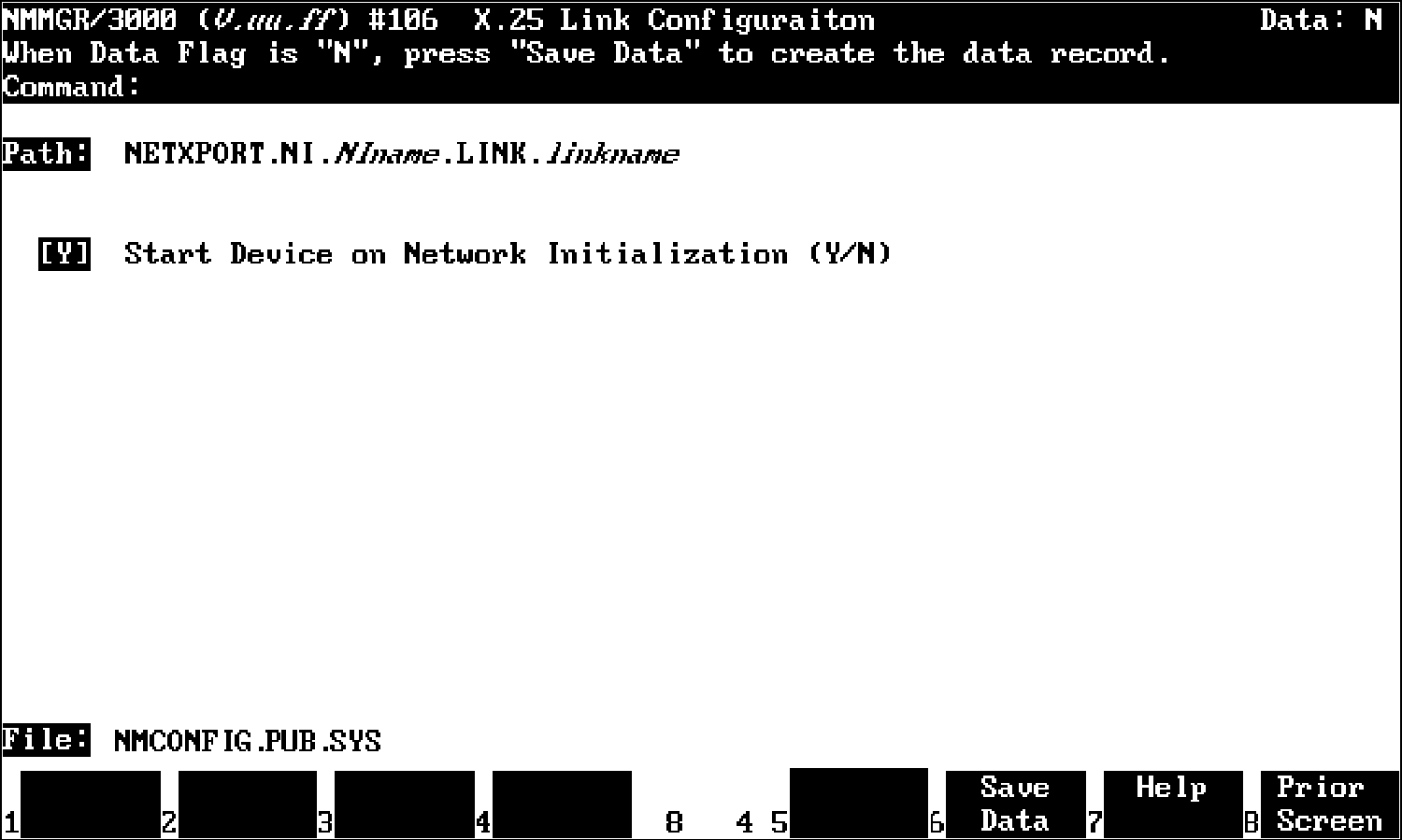

          Figure 7-12.  X.25 Link Configuration

Press the [Save Data] function key to transfer the data displayed on the
screen to the configuration file you are creating or updating.  Verify
that the data record has been created by checking that the Data flag is
set to Y.

Fields

Start device on network   Answer Y (Yes) if you want the device connected
initialization (Y/N)      over this link to be started when the network
                          is first initialized.  Answer N (No) if you do
                          NOT want the device started when the network is
                          first initialized.

                          Default value:  Y

                          Range:  Y or N
