X.25 Network Interface Links

The X.25 Network Interface Links screen (#151) in figure 7-11 is
displayed when you press the [Go To LINK] function key at the X.25
Network Interface Configuration screen (figure 7-3).  It is also
displayed when you type the path name:

@NETXPORT.NI.NIname.LINK

in the command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

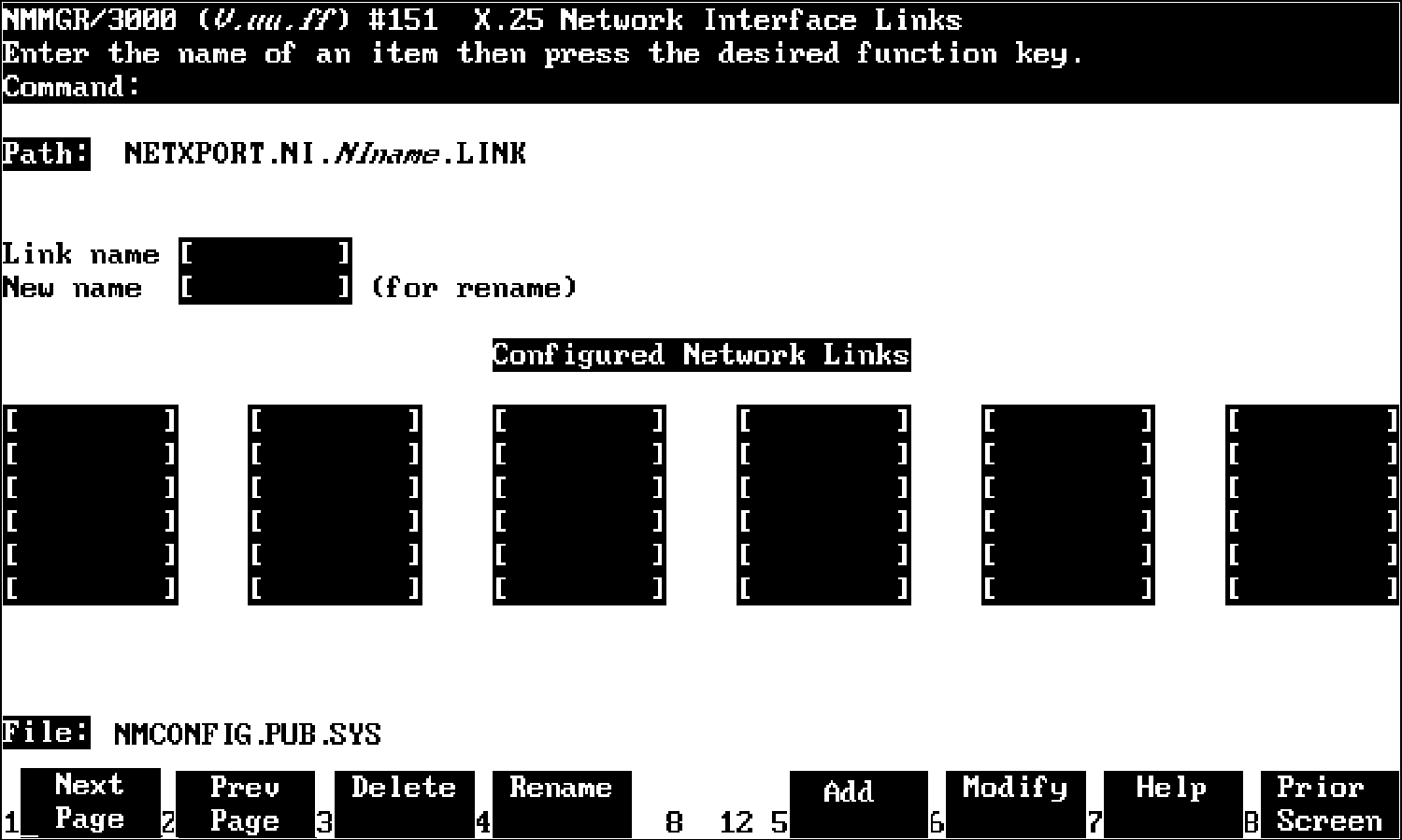

          Figure 7-11.  X.25 Network Interface Links

Use the fields and the function keys of this select screen to perform the
desired action.

   *   To define a new link configuration, specify the link name; then
       press the [Add] function key.  The path for the added link name is
       put in the configuration file, and the data screen on the path is
       displayed.You can associate 12 links with a single X.25 NI.

   *   To modify an existing link configuration, specify the link name;
       then press the [Modify] function key.  The next screen for the
       specified link is displayed.

   *   To change the link name of an existing link configuration, specify
       the link name and a new name; then press the [Rename] function
       key.  The previously configured name is replaced, and the screen
       displays the new name in a display field under the label
       Configured Network Links.

   *   To delete an existing link configuration, specify the link name;
       then press the [Delete] function key.  Press the [Delete] function
       key again to confirm the deletion.  The previously configured name
       is deleted and is no longer displayed in a display field under the
       label Configured Network Links.

Fields

Link name             Make sure this is the same link name configured at
                      the X.25 Link Configuration screen (path name
                      LINK). This screen associates the link data with
                      the X.25 network interface data.  The link name can
                      contain as many as eight alphanumeric characters,
                      and the first character must be alphabetic.|

                      The link name is used by the network transport when
                      establishing connections.  You can associate up to
                      twelve (12) links with a single X.25 NI. All links
                      associated with an NI have equal value (no primary
                      or secondary weightings are assigned).

New Name              (Required when renaming an existing X.25 link.)
                      Enter a link name.  This new link name is used in
                      place of the current link name for an existing link
                      configuration.  The name can contain as many as
                      eight alphanumeric characters, and the first
                      character must be alphabetic.
