X.25 User Facility Sets

The X.25 User Facility Sets screen (#164) in figure 7-6 is displayed when
you press the [Go To FACSET] function key at the General X.25
Configuration screen (figure 7-5).  It is also displayed when you type
the path name:

@NETXPORT.NI.NIname.PROTOCOL.X25.FACSET

in the Command window of any screen and press the [Enter] key, where
NIname is a configured X.25 NI.

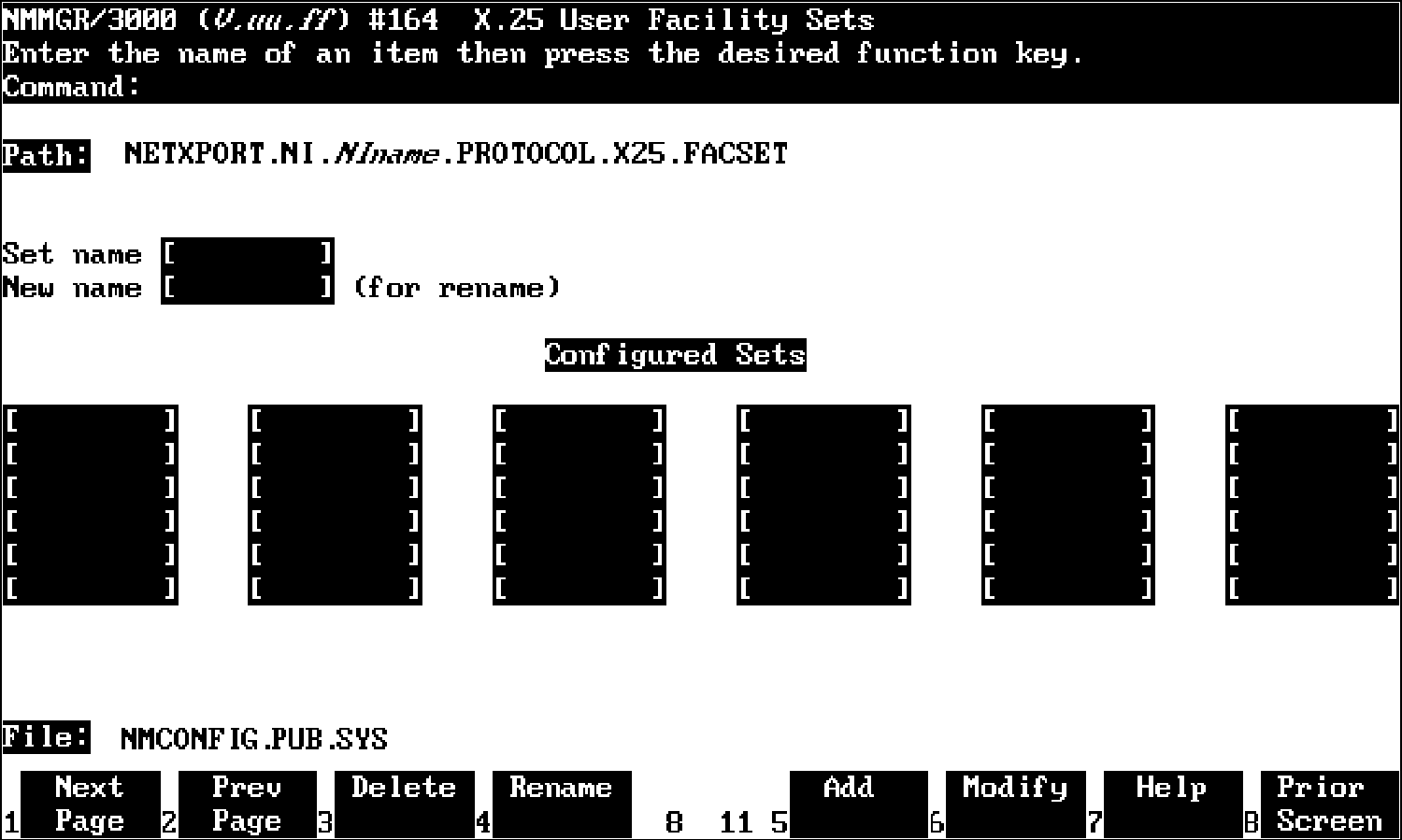

          Figure 7-6.  X.25 User Facility Sets

To edit an existing X.25 facility set, enter the name of the X.25
facility set to be modified and press the [Modify] function key.  To add
a new X.25 facility set, enter a new facility set name and press the
[Add] function key.

You may configure up to 128 User Facility Sets under an X.25 NI.

Fields

Set name              This name defines a set of X.25 parameters that can
                      be associated with an SVCPATH or a PVCPATH. The
                      name can contain as many as eight alphanumeric
                      characters.  The first character must be
                      alphabetic.

New name              This field is used to rename a facility set.  Enter
                      the current name in the set name field.  Enter the
                      new name in the new name field and press the
                      [Rename] function key.

                      The name can contain as many as eight alphanumeric
                      characters.  The first character must be
                      alphabetic.
