Protocol Configuration

The Protocol Configuration screen (#113) in figure 5-4 is displayed when
you press the [Go To PROTOCOL] function key at the LAN Network Interface
Configuration screen (figure 5-3).  It is also displayed when you type
the path name:

@NETXPORT.NI.NIname.PROTOCOL

in the command window of any screen and press the [Enter] key, where
NIname is a configured LAN NI.

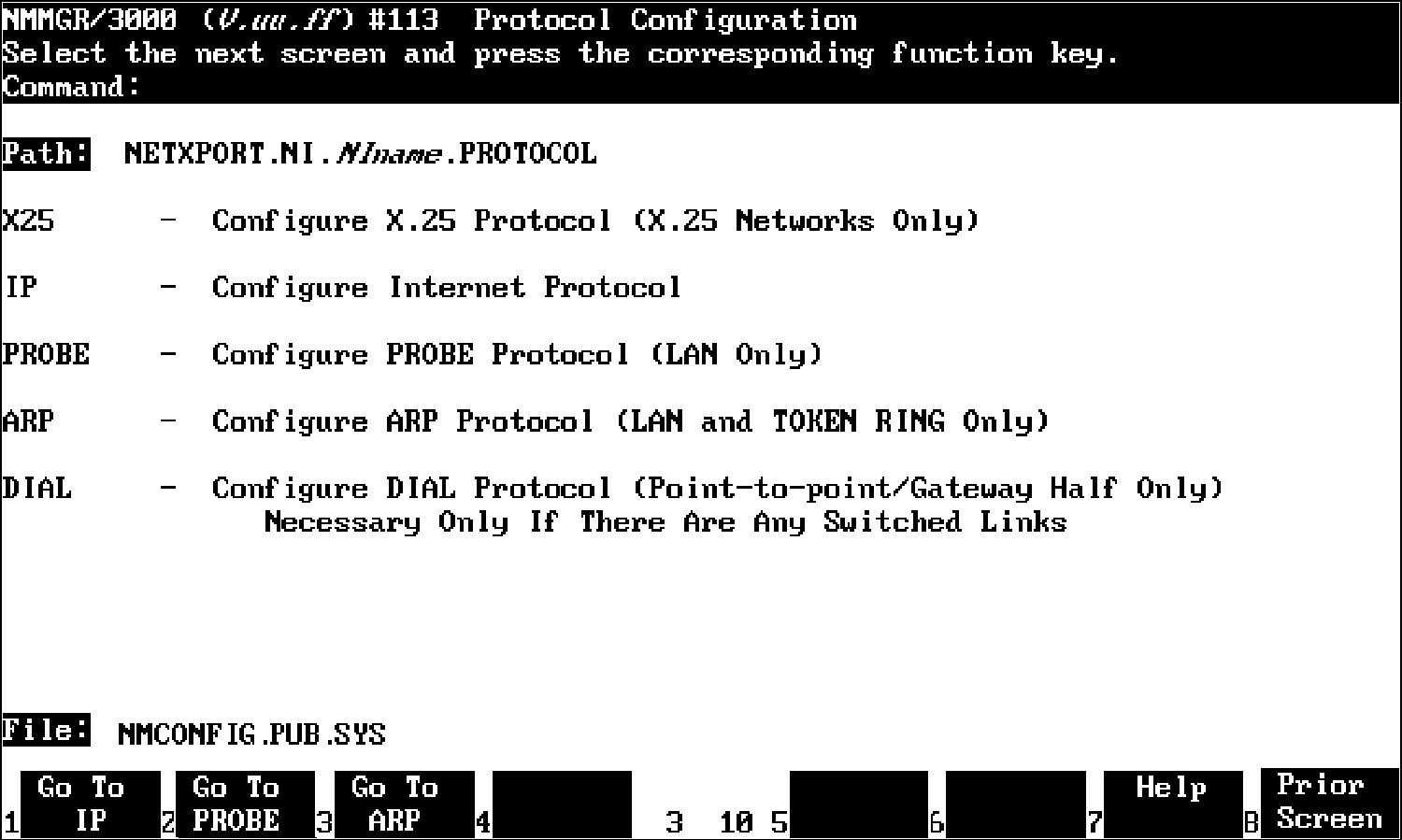

          Figure 5-4.  Protocol Configuration

For the LAN NI, you configure the IP, probe, and ARP protocols.  Choose
the protocol to configure, and press the corresponding function key.
