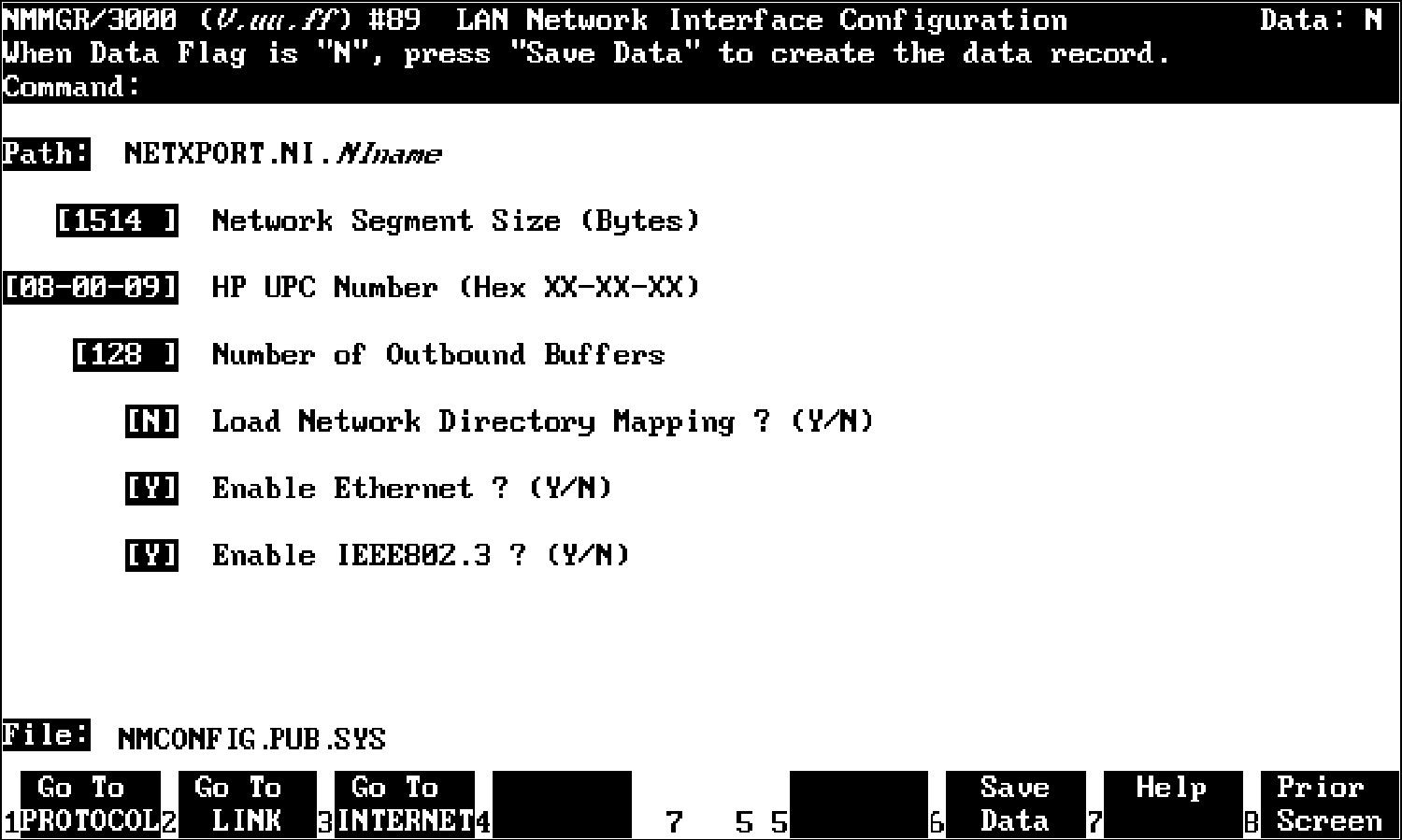

LAN Network Interface Configuration The LAN Network Interface Configuration screen (#89) in figure 5-3 is displayed when you select an NI name and the NI type LAN at the Network Interface Configuration screen (figure 5-2) and press the [Add] or [Modify] function key. It is also displayed when you type the path name: @NETXPORT.NI.NIname in the command window of any screen and press the [Enter] key, where NIname is a configured LAN NI name.Figure 5-3. LAN Network Interface Configuration The LAN network interface (NI) module serves to interface the upper layers of the transport product to the link layer. This screen supplies the information required for that interface. All of the fields, with the exception of the HP UPC number, are used for internal resource allocation. Press the [Save Data] function key to transfer the data displayed on the screen to the configuration file you are creating or modifying. Verify that the data record has been created by checking that the Data flag is set to Y. From this screen you proceed to the screens used to configure the LAN link and internetwork routing. Choose the item you wish to configure, and press the corresponding key. Fields Network segment size (HP modifiable). This field specifies the (bytes) largest packet (including all data, protocol headers, and link level headers) that will be sent by the LAN device. The only reason for entering a value smaller than 1514 is to make better use of memory for those systems where it is known that upper layer services will always send shorter messages. Note that whenever packets larger than the network segment size are sent, they will be fragmented to the network segment size, thus incurring fragmentation overhead at the source and assembly overhead at the destination node. Default value: 1514 bytes Range: 300-1514 HP UPC number (HP modifiable.) The HP universal product code, which is used to establish an HP-unique address used by the probe protocol. Default value: 08-00-09 Change the default only in rare circumstances. If all nodes on the LAN are not configured with identical HP UPC numbers, probe multicasts will not be universally recognized by nodes on the LAN. Number of outbound This field specifies the number of buffers to buffers be allocated for outbound data. Outbound buffersare used for outbound data packets and are held by the transport until they are acknowledged by the destination node. Underallocation may adversely affect TCP throughput. Overallocation may waste core memory. Related screen: * NETXPORT.GPROT.TCP The maximum number of connections is configured here. If it is increased, consider increasing the number of outbound buffers also. Default value: 128 Range: 128-4096 Load network directory If you have non-HP nodeson the LAN (nodes that mapping? (Y/N) do not support either ARP or probe protocols,) you must enter these nodes into the network directory and set load network directory mapping to Y. HP recommends the default unless non-HP nodes are on the LAN and the network directory has been configured. Refer to chapter 13 for information about the network directory. Default value: N Range: Y or N Enable Ethernet? (Y/N) This flag enables the Ethernet protocol to run either by itself or with the IEEE802.3 protocol. You can enable one or the other or both of these protocols simultaneously. One or the other must be enabled (you cannot disable both). Ethernet is enabled by default. Disabling Ethernet has the effect of disabling the ARP protocol as well. Default value: Y Range: Y or N Enable IEEE802.3? (Y/N) This flag enables the IEEE802.3 protocol to run either by itself or with the Ethernet protocol. You can enable one or the other or both of these protocols simultaneously. One or the other must be enabled (you cannot disable both). IEEE802.3 is enabled by default. Disabling IEEE802.3 has the effect of disabling the probe protocol as well. Default value: Y Range: Y or N
