Chapter 5  LAN Network Interface Configuration Screens

The screens in this chapter are those you would see when configuring an
IEEE 802.3/Ethernet LAN network.  Figure 5-1 shows the screen flow for
configuring the IEEE 802.3/Ethernet LAN screens.  Screens unique to the
LAN are indicated by bold boxed screens.  [FUNCTION] denotes the function
key used at a screen to invoke the next screen on the screen flow.

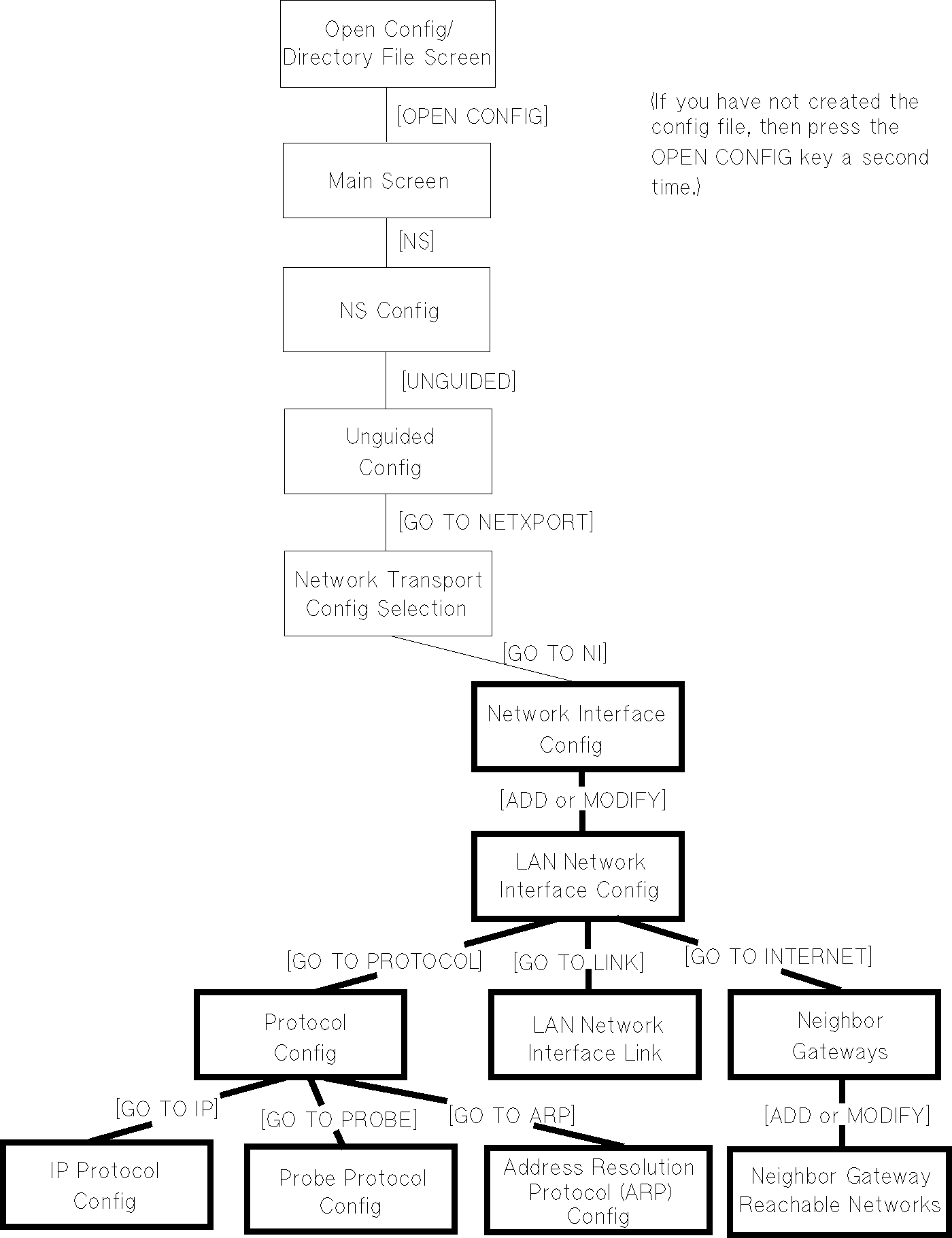

          Figure 5-1.  LAN Network Interface Config Screen Flow
