HP 3000 Manuals

NS3000/iX NMMGR Screens Reference Manual

Network Interface Configuration

The Network Interface Configuration screen (#112) in figure 4-7 is
displayed when you press the [Go To NI] function key at the Network
Transport Configuration Selection screen (Figure 4-2).  It is also
displayed when you type the path name:

@NETXPORT.NI

in the command window of any screen and press the [Enter] key.

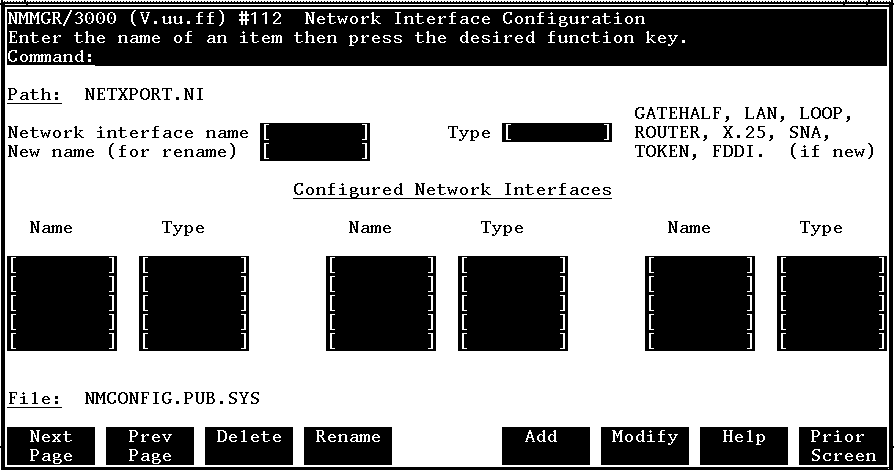

          Figure 4-7.  Network Interface Configuration

For information on selecting a specific network interface, refer to the
following chapters:

LAN                   Chapter 5
ROUTER                Chapter 6
X.25                  Chapter 7
TOKEN                 Chapter 8
FDDI                  Chapter 9
GATEHALF              Chapter 10
LOOP                  Chapter 11

NS/SNA is no longer offered as a product and has been removed from the
Corporate Price List.

MPE/iX 5.0 Documentation
