HP Schedule related Screens

Use these screens if you have HP DeskManagerPLUS installed to specify
Resource Classes, Resources and their Attributes.

The screens described in this section are:

   *   HP Schedule Menu

   *   Resource Class Information

   *   Resource Information

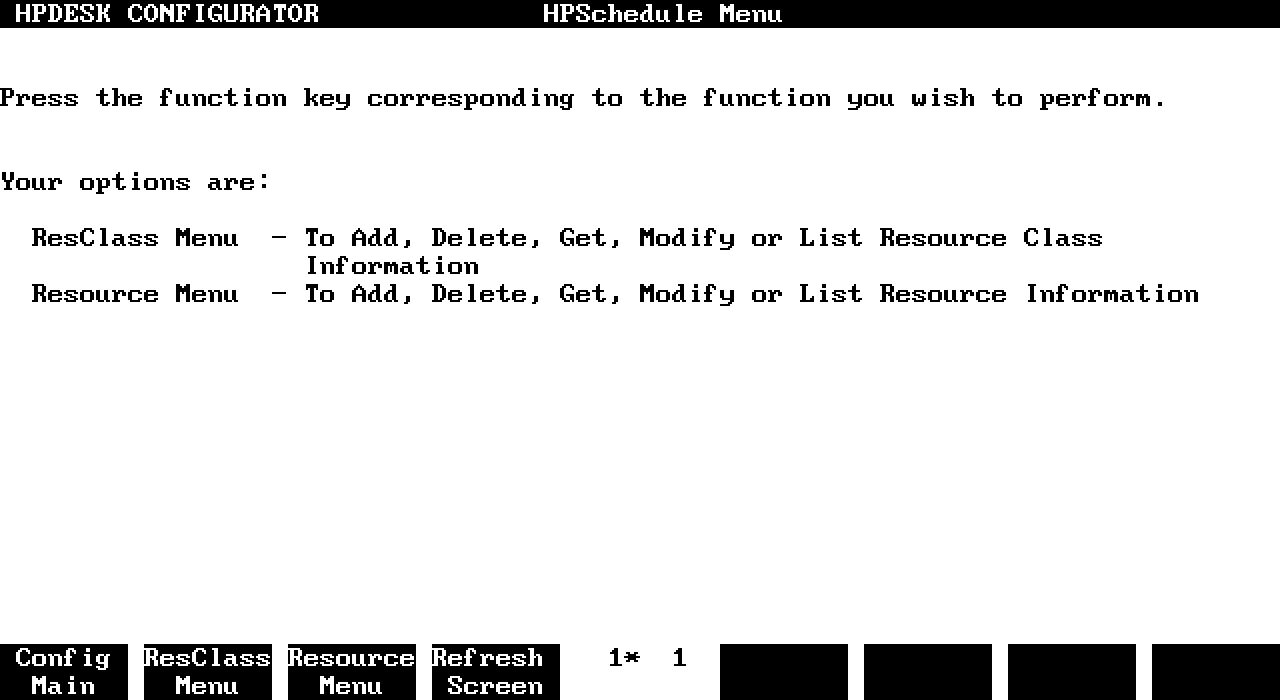

HP Schedule Menu

Use the HP Schedule menu to access the screens where you specify Resource
Class information or Resource Information.


          HP Schedule Menu

Select one of the following options:

 Resclass Menu       Lets you configure information about Resource
                     Classes.

 Resource Menu       Lets you configure information about Resources.

In addition, you can return to the Configuration Main Menu, or refresh
the screen should it become corrupted.

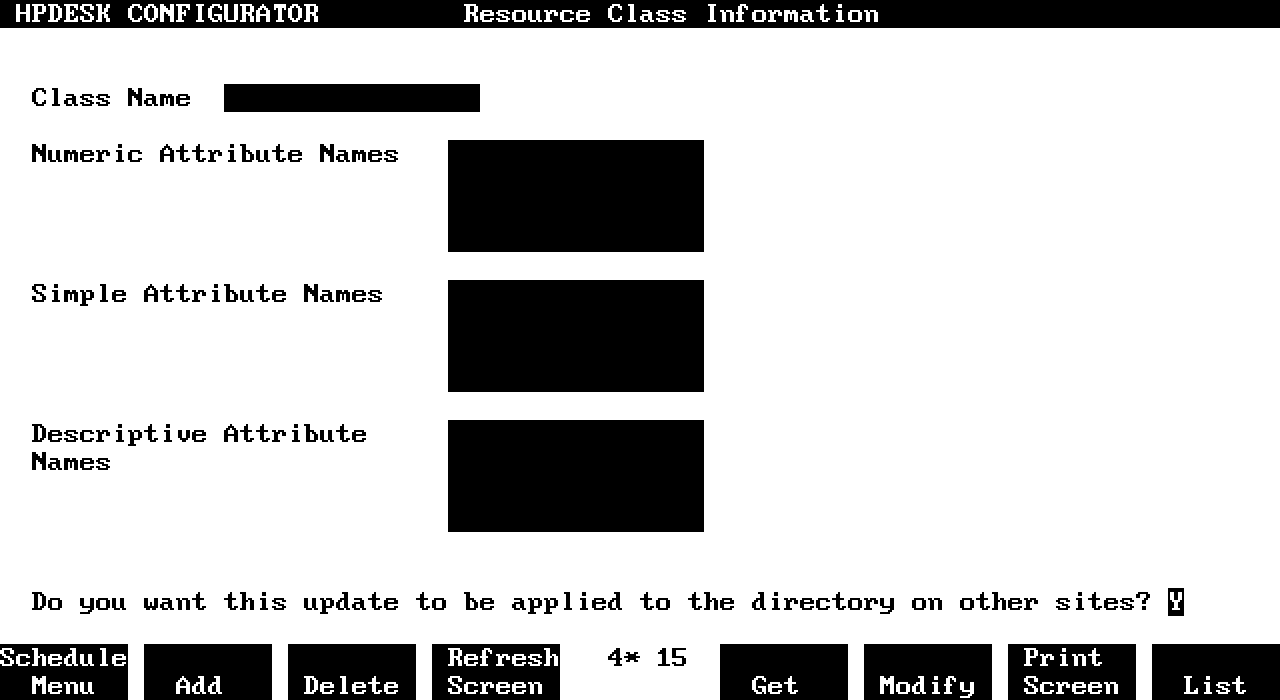

Resource Class Information

Use the Resource Class Information to record the names of Attributes
given to a Class.  It is reached from the HP Schedule Menu by pressing
ResClass Menu


          Resource Class Information

Select one of the following options:

 Add                 Lets you add Resource Classes and supply the names
                     of Attributes.  Class and Attribute names cannot
                     have more than 16 characters.

 Delete              Lets you delete Resource Classes.  Before you delete
                     a Resource Class you must have deleted its resources
                     using the Resource Menu.

 Get                 When you type in the Class name and press  Get, all
                     the Attributes associated with a Class are
                     displayed.

 Modify              Lets you add new Attribute names to an existing
                     Class.

 Print Screen        Prints a copy of the screen contents.

 List                Lists the directory of Resource Classes configured
                     on your system.

In addition, you can return to the HP Schedule Menu or refresh the
screen.

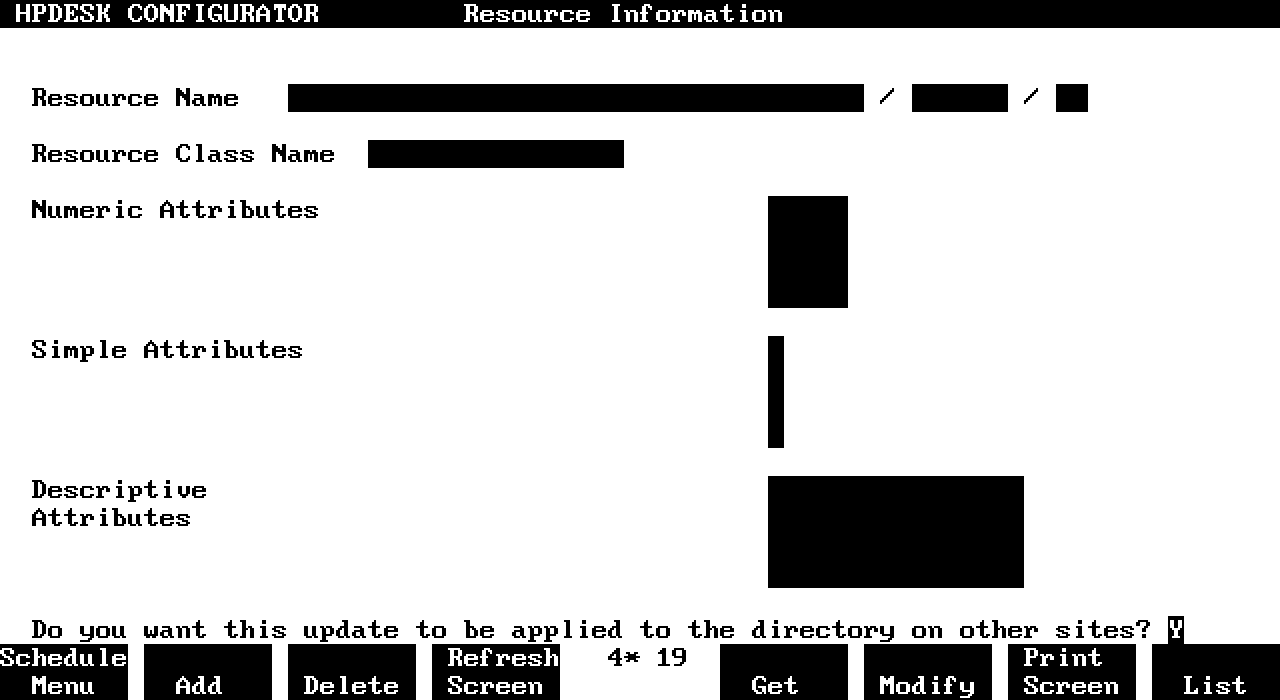

Resource Information

Use Resource Information screen to record the values of Attributes of a
Resource.  It is reached by pressing  Resource Menu at the HP Schedule
Menu.


          Resource Information

Select from the following options:

 Add                 Lets you add a Resource and its Attribute values.
                     Before you can add a Resource, the Resources Class
                     must exist on the database.

 Delete              Lets you delete a resource.

 Get                 When you type in a Resource name and press  Get, all
                     the Attribute values associated with that Resource
                     are displayed.

 Modify              Lets you add to, modify or delete the Attribute
                     names to an existing Class.

 Print Screen        Prints a copy of the screen contents.

 List                Lists the directory of Resources configured on your
                     system.

In addition, you can return to the HP Schedule Menu or refresh the
screen.
