TurboSTORE/XL II User's Guide

Interleave Format Tapes

The only difference between interleave format and any other store tape
format is the order of the files on the tape does not correspond with the
order of the files in the media directory.  In addition, file data
records are interleaved with records from multiple files.

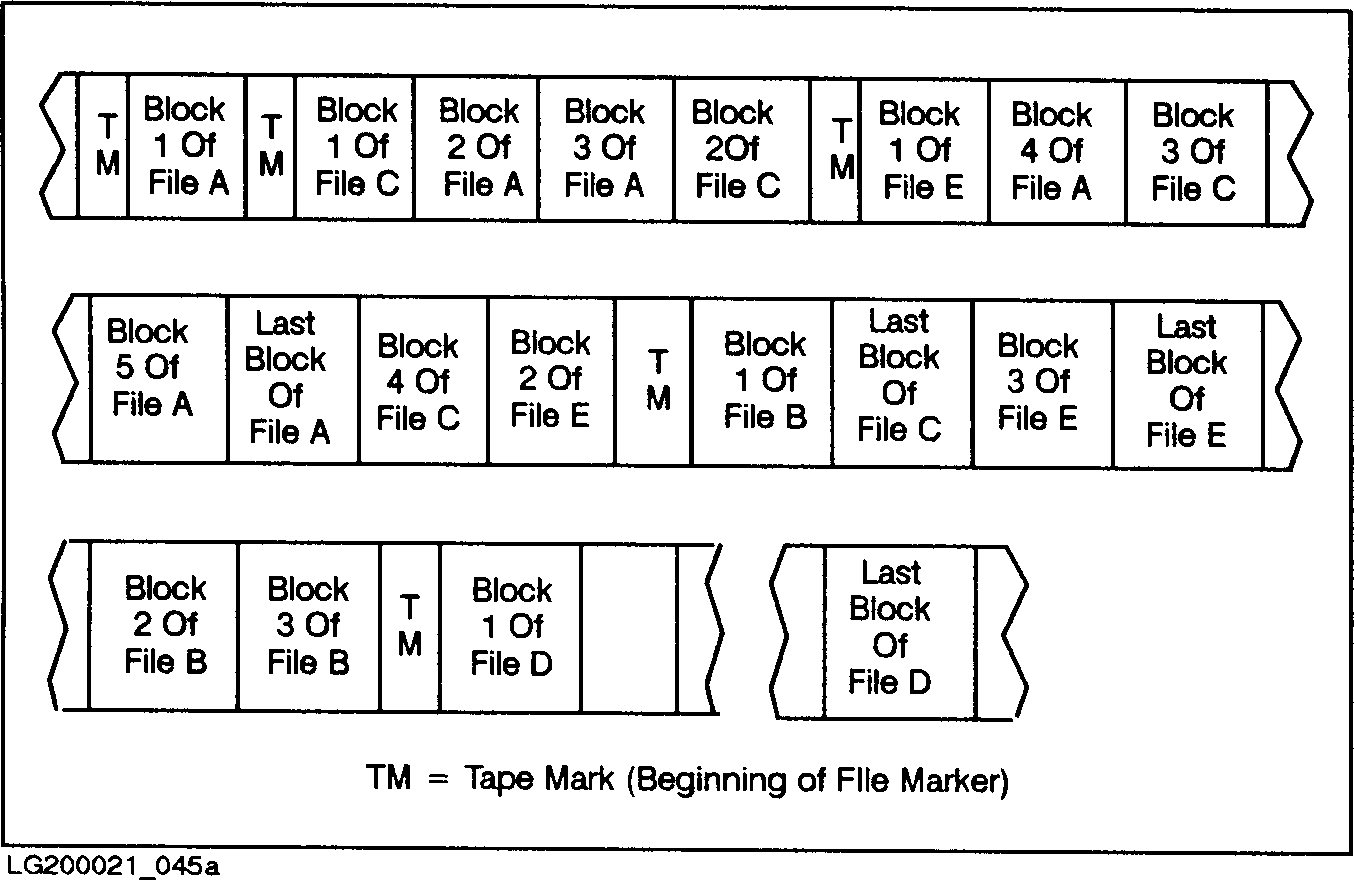

Figure C-4  illustrates the interleave tape format.


          Figure C-4.  Interleave Tape Format
