TurboSTORE/XL II User's Guide

Online Backup Tapes

Online backup tapes are similar to regular store tapes.  The only
difference is the addition of the log data associated with a file.

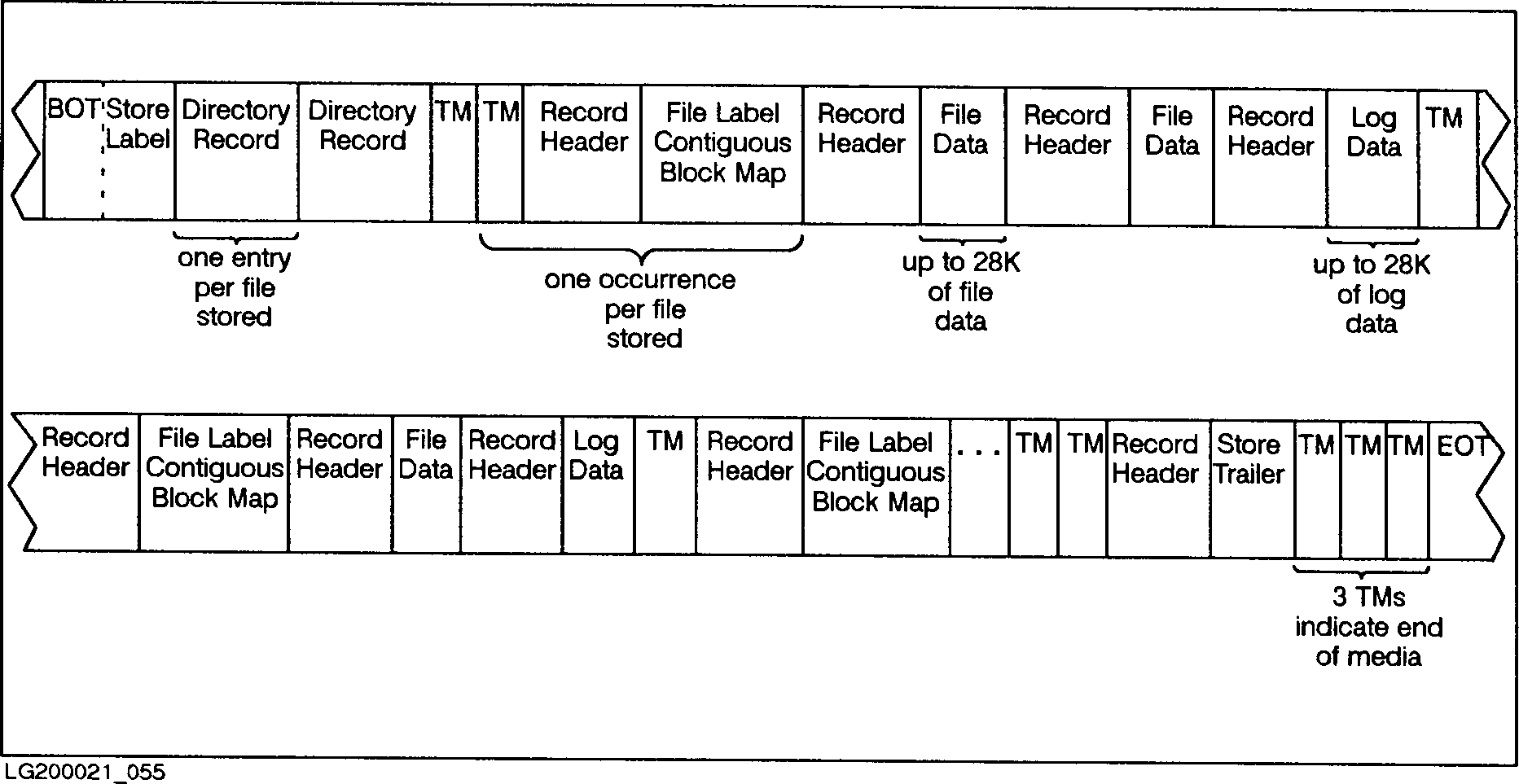

Figure C-3  illustrates the online backup tape format.


          Figure C-3.  Online Backup Tape Format
