x4queview
View and remove X.400 messages in a given queue.
Syntax
________________________________________________________________________
|x4queview |
________________________________________________________________________
Description
x4queview provides a menu for selecting queues (directories) and/or
files. The x4queviewutility decodes and displays all X.400 messages in a
given directory in a readable text format. The x4queviewutility allows
users to direct output to a file, to select different types of X.400
messages (user message, delivery report, or probe), and to delete X.400
messages. Users should be familiar with the X.400 standards.
Using x4queview, you can view the message contents along with the header
information such as the originator, message identifier, size, and arrival
time of the message.
X.400 messages can be in two formats: ASN.1 (HP Desk and Sendmail
connections) and IFF (HP Desk). When displayed, the messages look
different from each other. An example of both outputs is given.
x4queview determines the type of message by the name of the queue that it
resides in and sometimes by looking at the first letter of the file
containing the message:
* All messages in the IQ, OQ, and TQ are ASN.1 type.
* All messages in the EIQ and DOQ are IFF type.
* The UQ can contain both message formats. If the first letter of a
file name in the UQ starts with I, M, or D, the message is ASN.1
type. If the first letter is T, the message is IFF format. If
the first letter is none of the above, the message is an
undetermined type and is not processed.
x4queview also allows you to delete X.400 messages. x4queview deletes
X.400 messages in the undelivery queue and trace queue at any time, but
deletes all other X.400 messages only when X.400 is not running.
If a message in a specified queue is not an X.400 message, or is not a
valid X.400 message, an error message is returned.
Files
/usr/spool/x400/doq/oq number
Output queues for the decoder and input queues for x4xfer.
/usr/spool/x400/eiq/<HP X.400/HP Desk Node Name>
Input queues for the encoder.
/usr/spool/x400/iq
Input queue for the MTA.
/usr/spool/x400/oq/oq253
Input queue for x4mailer.
/usr/spool/x400/oq/oq< number>
Input queue for the RTS.
/usr/spool/x400/tq
Trace queue.
/usr/spool/x400/uq
Contains undeliverable files.
Example
x4queview
The following menu displays:
![[]](../../pic3k/M011856/FFN503c50.gif)
Figure B-3. X.400 MHS Utility Menu
Viewing Queues
To view the queues,
* Enter 1 at the X.400 MHS Utility Menu.
The Queue Viewer Utility screen displays:
![[]](../../pic3k/M011856/FFN513c50.gif)
Figure B-4. Queue Viewer Utility Screen
Enter the queue you want to view. Input is case-sensitive. The queue
viewer prompts you to answer the following questions:
Redirection filename Default: t. Enter a filename to write the
('t'erminal)[t]: output to a file, or t to write the output to
the screen.
Message type ('a'll,
'u'ser, 'd'elivery,
'p'robe)[a]: Default: a. Enter a to list all messages,
u to list user messages, d to list
delivery/non-delivery reports, or p to list
probes.
Output format Default: c. Enter h to list header
(header only (h), information only, or c to list both header
header+contents (c))[c]: information and message contents.
Once the information is displayed, the Queue Viewer Utility screen
displays.
To exit to the X.400 MHS Utility Menu,
* Enter q at the prompt.
Viewing Messages
To view the contents of a message,
* Enter 2 at the X.400 MHS Utility Menu. The Message Viewer Utility
screen displays:
![[]](../../pic3k/M011856/FFN523c50.gif)
Figure B-5. Message Viewer Utility Screen
Enter the queue that contains the message you want to view. Input is
case-sensitive.
If the queue is empty, an error message displays. Hit Return to return
to the Message Viewer Utility screen.
To view a message, either
* Enter the message file name or identifier (the highlighted number
to the left of the message file name), or
* Enter s and then the message file name or identifier (if there are
more messages than listed on the screen).
To get to the next page of messages,
* Hit Return.
NOTE You can only select a message file name or identifier that has been
listed. If the message you want to view is listed on the next
page, you must go to the next page and then select the message file
name or identifier.
After you have selected the message to view, you are prompted to answer
the following question:
Redirection filename Default: t. Enter a filename to write the
('t'erminal)[t]: output to a file, or t to write the output to
the screen.
After the message displays, you are returned to the list of messages.
To exit to the Message Viewer Utility screen,
* Enter q at the prompt.
To exit from the Message Viewer Utility screen to the X.400 MHS Utility
Menu,
* Enter q at the prompt.
Removing Messages
TO remove messages,
* Enter 3 at the X.400 MHS Utility Menu.
The Queue Manager Utility screen displays:
![[]](../../pic3k/M011856/FFN533c50.gif)

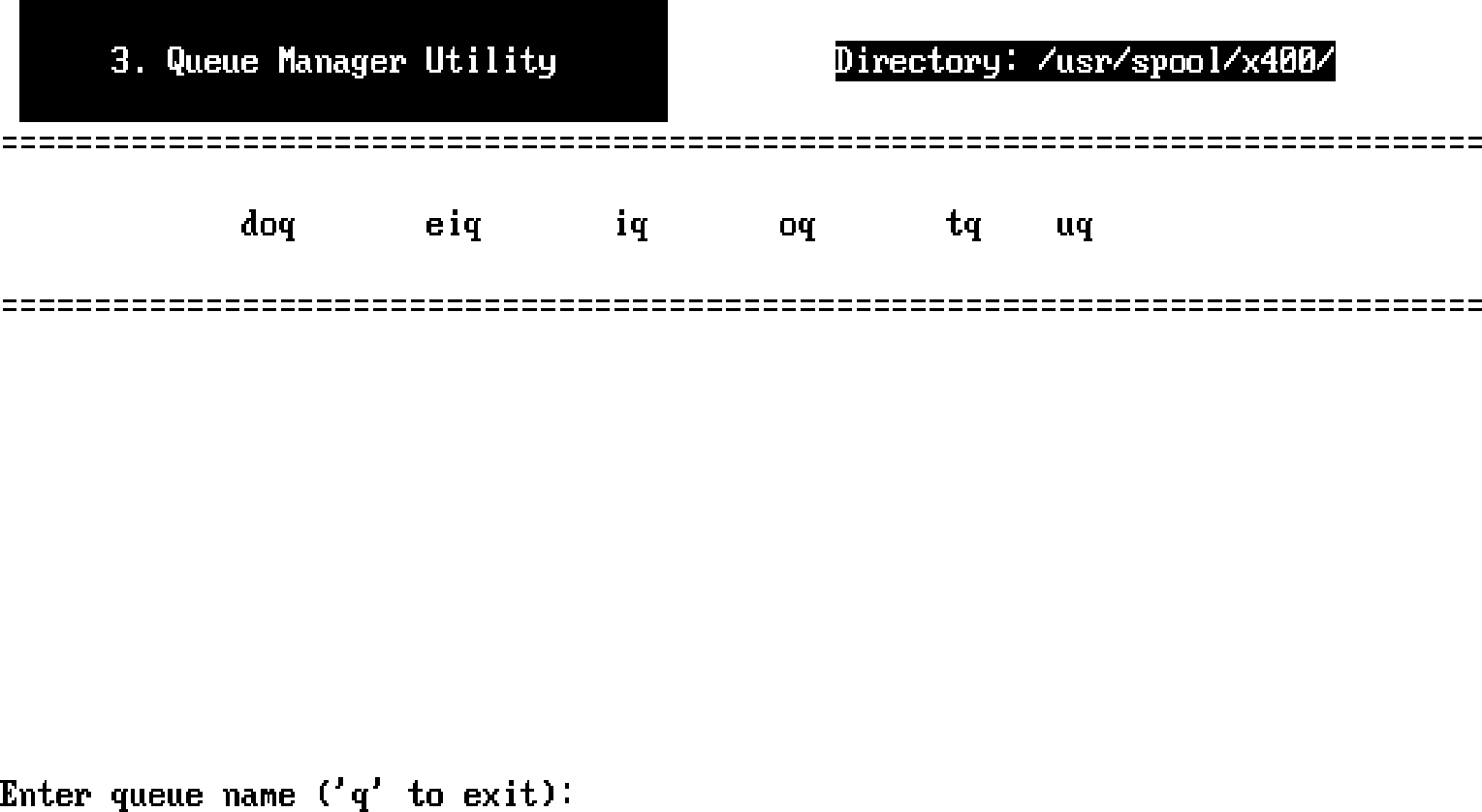

Figure B-6. Queue Manager Utility Screen
Enter the queue that contains the message you want to remove. Input is
case-sensitive.
NOTE X.400 messages in the UQ and TQ can be deleted at any time. X.400
messages in the IQ and OQs can be deleted only when X.400 is not
running.
To delete a message, either
* Enter the message file name or identifier (the highlighted number
to the left of the file name), or
* Enter s and then the message file name or identifier (if there are
more messages than listed on the screen).
To get to the next page of messages,
* Hit Return.
NOTE You can only select a message file name or identifier that has been
listed. If the message you want to view is listed on the next
page, you must go to the next page and then select the message file
name or identifier.
After you have selected the message to remove, you are prompted to answer
the following questions:
Display message Default: y. View the envelope information and
(y/n)? [y]: message contents before deleting the message. Select
n to not view the message.
Remove message Default: n. Enter y to delete the listed X.400
<queue message in the listed queue. If you select y, a
name/filename> message displays showing the message is removed and
(y/n)? [n]: from where it is removed.
To exit to the Queue Manager Utility screen,
* Enter q at the prompt.
To exit from the Queue Manager Utility screen to the X.400 MHS Utility
Menu,
* Enter q at the prompt.
To exit from the X.400 MHS Utility Menu,
* Enter 4 at the prompt.
