DIMENSION Statement (Nonexecutable)

The DIMENSION statement defines the dimensions and bounds of arrays.

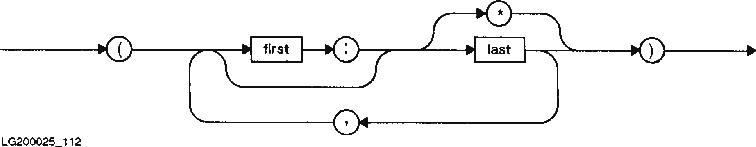

Dimension Declarator




-----------------------------------------------------------------------------------------------
|                   |                                    |                                    |
|       Item        |        Description/Default         |            Restrictions            |
|                   |                                    |                                    |
-----------------------------------------------------------------------------------------------
|                   |                                    |                                    |
| array_name        | Symbolic name of the array.        | None.                              |
|                   |                                    |                                    |
-----------------------------------------------------------------------------------------------
|                   |                                    |                                    |
| first             | Lower dimension bound.  Defaults   | Must be less than or equal to      |
|                   | to 1.                              | last.                              |
|                   |                                    |                                    |
-----------------------------------------------------------------------------------------------
|                   |                                    |                                    |
| last              | Upper dimension bound.             | Must be greater than or equal to   |
|                   |                                    | first.                             |
|                   |                                    |                                    |
-----------------------------------------------------------------------------------------------
|                   |                                    |                                    |
| *                 | Dynamic upper bound.               | Can only appear in the last upper  |
|                   |                                    | bound of a formal argument of a    |
|                   |                                    | subprogram.                        |
|                   |                                    |                                    |
-----------------------------------------------------------------------------------------------

Semantics

There must be one dimension declarator for each dimension in the array.

When an array is defined in a DIMENSION statement, only the name of the
array, not the complete declarator, can be used in a type or COMMON
statement.

Only the upper dimension bound of the last dimension in an array
declarator of a formal argument can be an asterisk.

As an extension to the ANSI 77 standard, an array can have an unlimited
number of dimensions.

See "Array Declarators"  for further details.

                 Examples                                      Notes
---------------------------------------------------------------------------------------

INTEGER*2 arri                              The type statement specifies arri as a
DIMENSION arri(-3:1,4)                      two-byte integer.  Only the name of the
                                            array is used, not the complete array
                                            declarator.

                                            The DIMENSION statement causes 20 words of
                                            memory to be allocated for the array arri.
                                            An equivalent type specification would be:

                                                 INTEGER*2 arri(-3:1,4)

COMPLEX num(5,5)                            This construct is illegal because num is
DIMENSION num(5,5)                          declared as an array twice.
